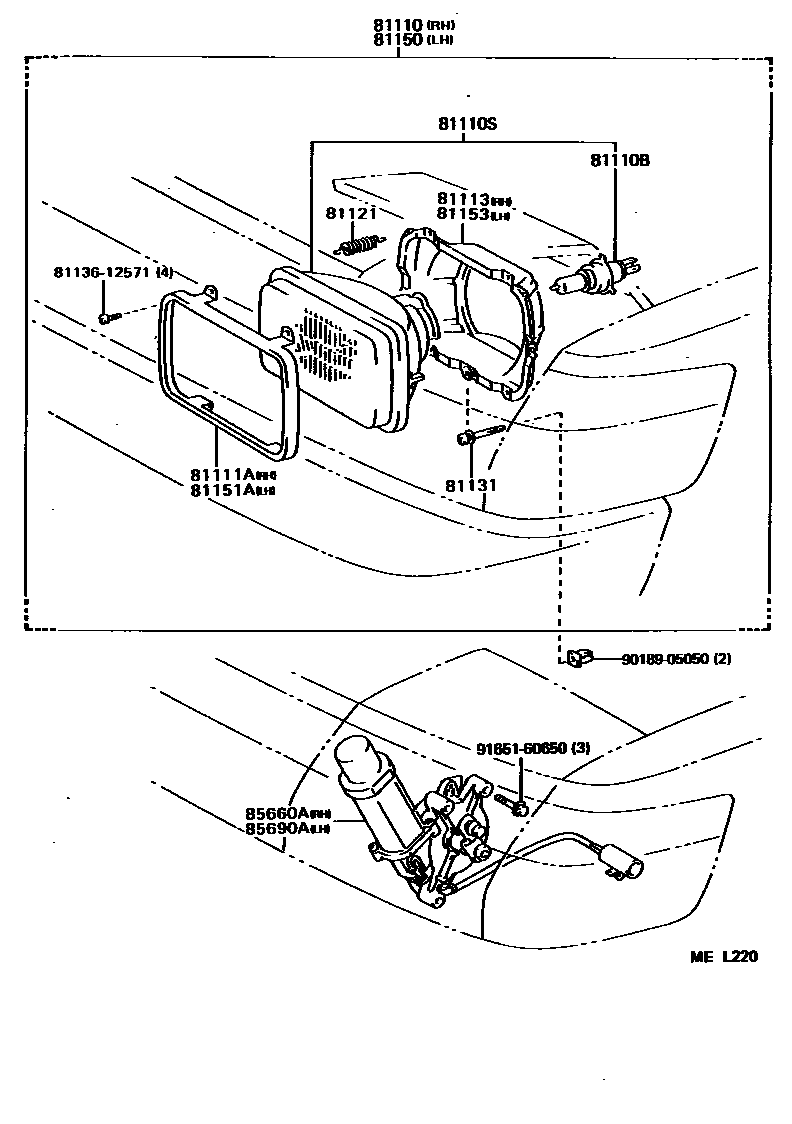

Toyota SUPRA — HEADLAMP

0001 1 0002 1W/LEVELING

81110HEADLAMP ASSY, RH

main81110-14730iMA70..ARL¥18,600199008-199305

main81110-1B080iMA70..LHD..(C,EUR,GEN)198808-199305

HALOGEN,WHITE

main81110-1B090iMA70..LHD..(C,EUR,GEN)198808-199305

HALOGEN,YELLOW

main81110-1B100iMA70..RHD¥18,600198808-198908

HALOGEN,WHITE

main81110-1B110iMA70..V¥18,600198808-199305

main81110-1B130iMA70..RHD..C¥18,600198908-199305

main81110-1B140iMA70..LHD..TWT¥18,600198908-199305

*FRG

main81110-1B150iMA70..ARL¥27,700198908-199008

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iMA70..ARL,C,EUR,GEN¥1,800198808-198908

12V 60/55W,*HAL *WH

sub90981-13058¥2,000

main90981-13015iMA70..C,GEN¥1,800198908-199008

12V 60/55W,*HAL *WH

sub90981-13058¥2,000

main90981-13015iMA70..ARL,C,GEN¥1,800199008-199305

12V 60/55W,*HAL *WH

sub90981-13058¥2,000

main90981-13016iMA70..LHD..(C,EUR,GEN)¥3,000198808-199305

12V 60/55W,*HAL *YE

sub90981-13H01¥4,000

81110SSEALED BEAM UNIT, NO.1

main90981-04020iMA70..V¥9,700198808-199305

12V 65/35W,*HAL,*WB

main90981-04024iMA70..RHD¥14,000198808-198908

12V 60/55W,*HWS,RH TRAFFIC SPEC

main90981-04024iMA70..LHD..GEN¥14,000198808-198908

12V 60/55W,*HWS

main90981-04024iMA70..RHD..C¥14,000198908-199305

12V 60/55W,*HWS

main90981-04025iMA70..LHD..(C,EUR,GEN)¥14,000198808-199305

12V 60/55W,*HWS

main90981-04025iMA70..LHD..(C,EUR,GEN)¥14,000198808-199305

12V 60/55W,*HWS,LH TRAFFIC SPEC

main90981-04026iMA70..LHD..(C,EUR,GEN)¥14,700198808-199305

12V 60/55W,*HYS

main90981-04030iMA70..ARL¥13,000199008-199305

12V 60/55W,*HWS

main90981-04041iMA70..ARL¥13,900198908-199008

12V 70/55W,*HAL,*WB

sub90981-04044¥8,000

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-17010iMA70..RHD..C¥1,650198909-199305

HALOGEN,WHITE

sub81111-16020¥1,640

main81111-17010iMA70¥1,650198808-198909

sub81111-16020¥1,640

main81111-2B360iMA70..RHD..C¥1,660198909-199305

*FRG

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-17010iMA70¥4,500198808-198908

main81113-17010iMA70..LHD..C;MA70..ARL,GEN,V¥4,500198908-199305

HALOGEN,WHITE

main81113-1B140iMA70..LHD..TWT¥1,120198908-199305

*FRG

81121SPRING, HEADLAMP TENSION

main90075-25501iMA70¥210198808-199305

81131SCREW, HEADLAMP ADJUSTING

main81131-17010iMA70¥310198808-199305

81150HEADLAMP ASSY, LH

main81150-14730iMA70..ARL¥18,600199008-199305

main81150-1B080iMA70..RHD..(C,EUR)198808-199305

HALOGEN WHITE,LH TRAFFIC SPEC

main81150-1B090iMA70..LHD..(C,EUR,GEN)198808-199305

HALOGEN,YELLOW

main81150-1B100iMA70..LHD..GEN¥18,600198808-198908

HALOGEN,WHITE

main81150-1B110iMA70..V¥18,600198808-199305

main81150-1B130iMA70..RHD..C¥18,600198908-199305

main81150-1B140iMA70..LHD..TWT¥18,600198908-199305

*FRG

main81150-1B150iMA70..ARL¥27,700198908-199008

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-17010iMA70¥1,650198808-198909

sub81111-16020¥1,640

main81111-17010iMA70..LHD..C;MA70..ARL,GEN,V¥1,650198909-199305

LH TRAFFIC SPEC

sub81111-16020¥1,640

main81111-2B360iMA70..LHD..TWT¥1,660198909-199305

*FRG

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-17010iMA70¥4,500198808-198908

main81153-17010iMA70..LHD..C;MA70..ARL,GEN,V¥4,500198908-199305

HALOGEN,WHITE

main81153-1B140iMA70..RHD..C¥1,120198908-199305

*FRG

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-14050iMA70¥29,000198808-198910

main85660-14050iMA70¥29,000198910-199108

main85660-14050iMA70¥29,000199108-199305

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-14050iMA70¥29,000198808-198910

main85690-14050iMA70¥29,000198910-199108

main85690-14050iMA70¥29,000199108-199305

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571¥150

9018905050

main90189-05050¥90

9165160650

main91651-60650¥130

15 parts on this diagram · 2 diagrams in section
