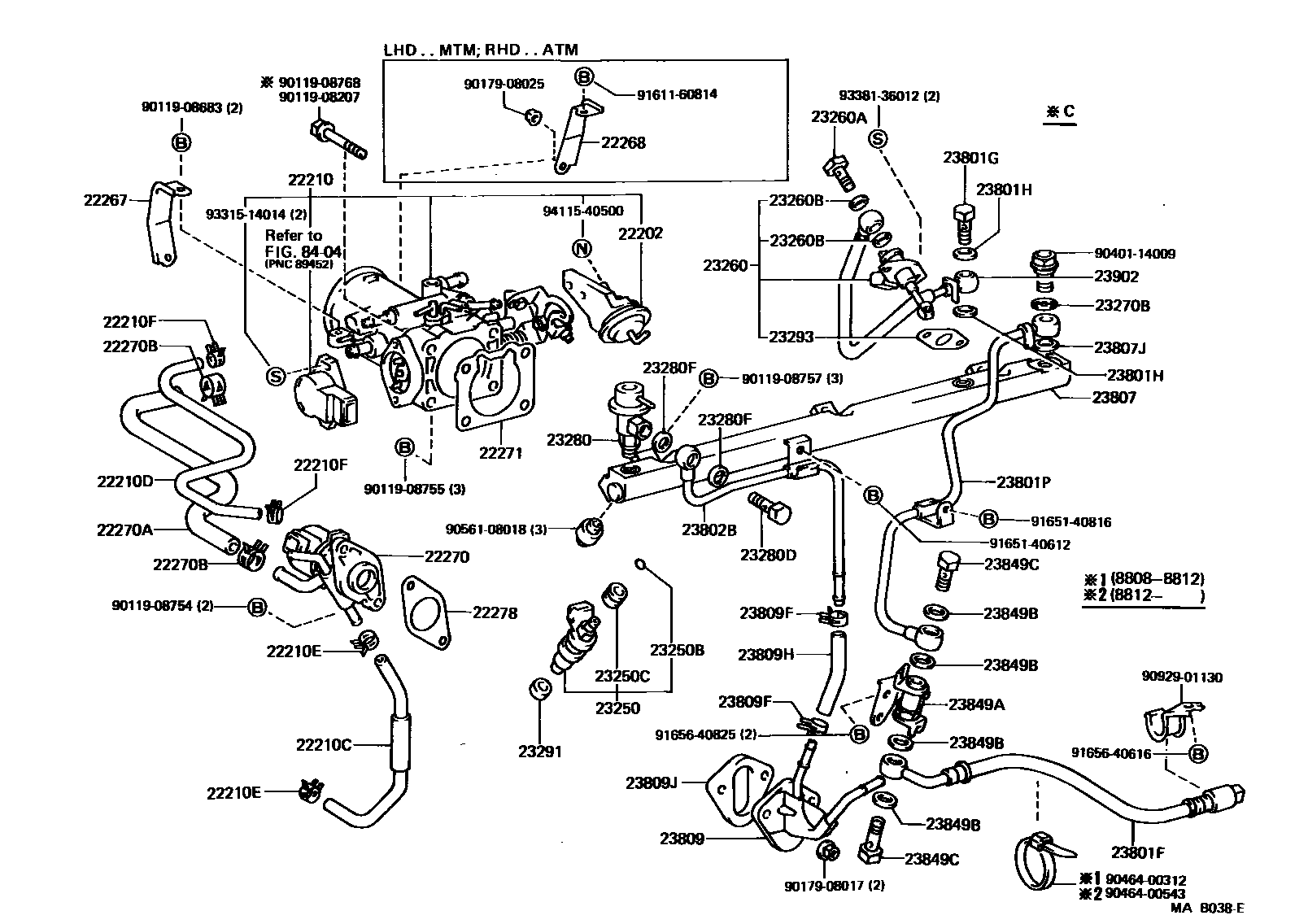

Toyota SUPRA — FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22267BRACKET, THROTTLE BODY
22268BRACKET, THROTTLE BODY, NO.2
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270BCLIP(FOR AIR HOSE)
22271GASKET, THROTTLE BODY
22278GASKET, IDLE SPEED CONTROL VALVE
SWEDEN SPEC
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23260ABOLT, UNION
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
SWEDEN SPEC
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23809SUPPORT SUB-ASSY, FUEL PIPE
23809FCLIP(FOR FUEL PIPE SUPPORT)
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
23809JINSULATOR, FUEL PIPE SUPPORT
SWEDEN SPEC
23849ASUPPORT, FUEL PIPE
23849BGASKET(FOR FUEL PIPE SUPPORT)
HOSE SIDE
PIPE SIDE
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
23902TUBE SUB-ASSY, FUEL
8404
9011908207
9011908683
9011908754
9011908755
9011908757
9011908768
9017908017
9017908025
9040114009
9046400312
9046400543
9056108018
9092901130
9161160814
9165140612
9165140816
9165640616
9165640825
9331514014
9338136012
9411540500
63 parts on this diagram · 4 diagrams in section
