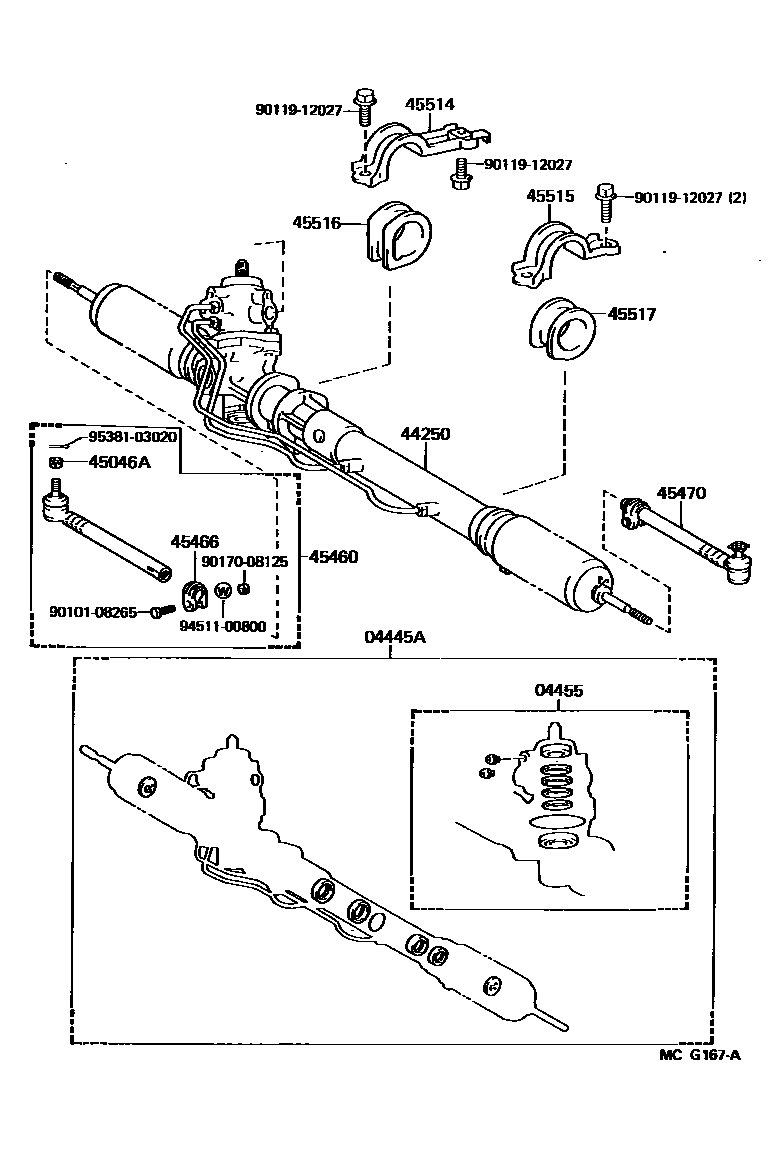

Toyota SUPRA — FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-14020iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥3,680198808-199305

main04445-14020iMA70..LHD..TWC..(C,EUR)¥3,680198808-199008

W(POWER STEERING)

main04445-20040iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥6,200198808-199305

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-14010iMA70..LHD..TWC..(C,EUR)¥1,850198808-199008

W(POWER STEERING)

main04455-14010iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥1,850198808-199305

main04455-20050iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥3,090198808-199305

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14080iMA70..RHD..GEN¥107,000198808-199305

main44250-14090iMA70..LHD..TWC¥107,000198808-199305

main44250-14160iMA70..RHD..(ARL,C,EUR)¥136,000198808-199008

sub44250-14161¥134,000

main44250-14161iMA70..RHD..(ARL,C)¥134,000199008-199305

main44250-14180iMA70..LHD..TWC..(C,EUR)¥136,000198808-199008

W(*73)

sub44250-14181¥134,000

main44250-14181iMA70..LHD..C¥134,000199008-199305

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMA70¥130198808-199305

45460ROD ASSY, TIE, RH

main45460-19225iMA70¥3,830198808-199305

45466CLAMP, TIE ROD END

main45466-22010iMA70¥300198808-199305

45470ROD ASSY, TIE, LH

main45460-19225iMA70¥3,830198808-199305

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-14050iMA70..RHD;MA70..LHD..C¥1,630198808-198809

W(*73)

main45514-14050iMA70..RHD¥1,630198809-199305

main45514-14060iMA70..LHD..TWT¥1,810198809-199305

main45514-14060iMA70..LHD..TWC..(C,EUR)¥1,810198809-199008

W(*73)

main45515-14080iMA70..LHD..TWC¥940198808-199305

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-14060iMA70..LHD..TWC¥1,810198808-199305

main45515-14070iMA70..LHD..EUR¥820198808-198809

W(*73)

main45515-14070iMA70..RHD¥820198809-199305

main45515-14080iMA70..LHD..TWT¥940198809-199305

main45515-14080iMA70..LHD..TWC..(C,EUR)¥940198809-199008

W(*73)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-14010iMA70¥880198808-198809

sub45516-14020¥880

main45516-14010iMA70..GEN,V;MA70..LHD..(C,EUR)¥880198809-198904

sub45516-14020¥880

main45516-14020iMA70¥880198904-199008

sub45516-14021¥870

main45516-14020iMA70..RHD..(ARL,C,EUR)¥880198809-198904

sub45516-14021¥870

main45516-14021iMA70¥870199008-199305

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14030iMA70..GEN,V;MA70..LHD..TWC..(C,EUR)¥870198808-199305

main45517-24020iMA70..LHD..TWC..(C,EUR)¥730198808-199008

W(*73)

main45517-24020iMA70..LHD..TWT;MA70..RHD..(ARL,C,EUR)¥730198808-199305

9010108265

main90101-08265¥440

9011912027

main90119-12027¥190

9017008125

main90170-08125¥320

9451100800

main94511-00800¥100

9538103020

main95381-03020¥90

16 parts on this diagram · 8 diagrams in section
