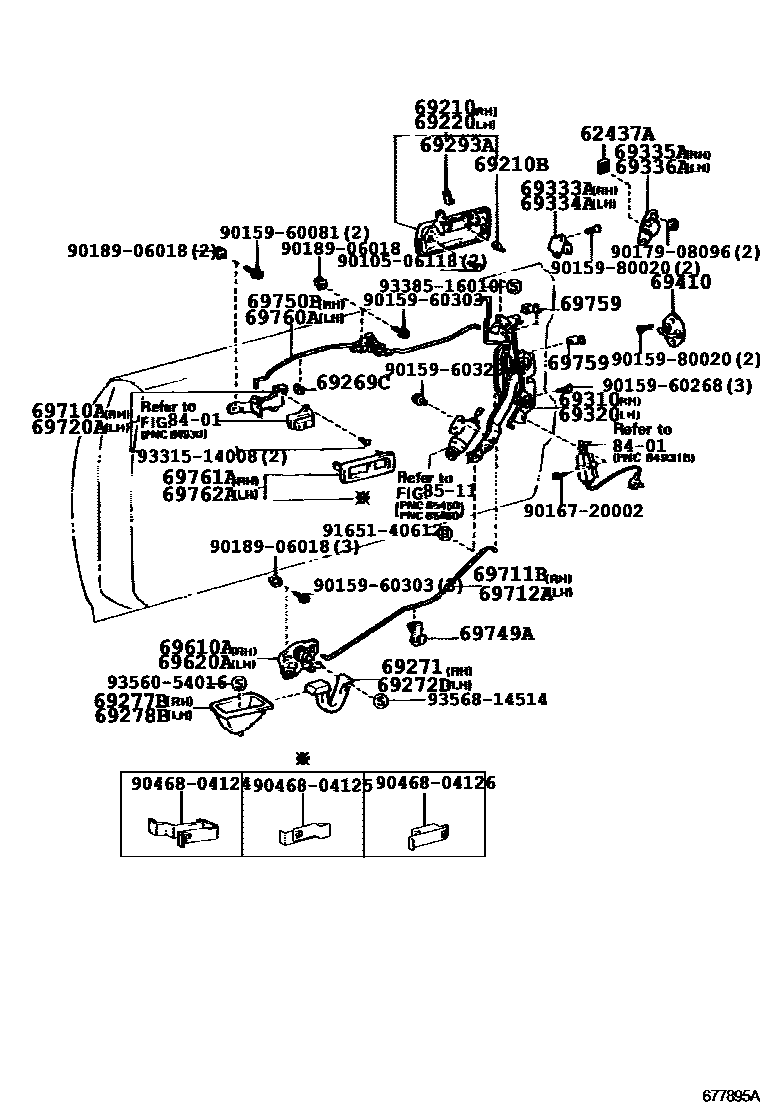

Toyota SUPRA — FRONT DOOR LOCK & HANDLE

62437APROTECTOR, BASE EDGE, NO.1

main62437-14020iMA70..SPR¥580198808-199305

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-14090-07iMA70..C199008-199305

DARK GREEN MICA,6L9

main69210-14090-10iMA70..C,GEN,V199008-199305

BLUE M.,8J3

main69210-14090-11iMA70199008-199305

BLACK,202

main69210-14090-13iMA70..C,EUR,GEN,V198808-198908

GRAY M.,167

main69210-14090-15iMA70..C,GEN,V198908-199008

BEIGE M.,4K9

main69210-14090-16iMA70..C,EUR,GEN,V198808-198908

DK. BROWN MICA,4J7

main69210-14090-21iMA70198808-199008

BLACK MICA,206

main69210-14090-22iMA70198808-199305

SUPER RED 2,3E5

main69210-14090-23iMA70198808-199108

GRAY M.,176

main69210-14090-28iMA70198808-198908

SUPER WHITE 3,043

main69210-14090-32iMA70..C,EUR,GEN,V198808-199008

RED MICA,3H4

main69210-14090-33iMA70198908-199305

BLUEISH GRAY M.,182

main69210-14090-34iMA70198808-198908

BLUE METALLIC/MICA,8E3

main69210-14090-38iMA70198908-199305

SUPER WHITE 4,050

main69210-14090-42iMA70..C,GEN,V199008-199108

RED MICA,3H8

main69210-14090-54iMA70198908-199008

DARK BLUE M.M.,8G5

main69210-14090-D0iMA70..C,GEN,V199108-199305

RED MICA,3K3

main69210-14090-H0iMA70..C199108-199305

MEDIUM TORQUOISE M.,749

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iMA70¥310198808-199305

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-14100-07iMA70..C199008-199305

DARK GREEN MICA,6L9

main69220-14100-10iMA70..C,GEN,V199008-199305

BLUE M.,8J3

main69220-14100-11iMA70199008-199305

BLACK,202

main69220-14100-13iMA70..C,EUR,GEN,V198808-198908

GRAY M.,167

main69220-14100-15iMA70..C,GEN,V198908-199008

BEIGE M.,4K9

main69220-14100-16iMA70..C,EUR,GEN,V198808-198908

DK. BROWN MICA,4J7

main69220-14100-21iMA70198808-199008

BLACK MICA,206

main69220-14100-22iMA70198808-199305

SUPER RED 2,3E5

main69220-14100-23iMA70198808-199108

SUPER SILVER 3 M.,176

main69220-14100-28iMA70198808-198908

SUPER WHITE 3,043

main69220-14100-32iMA70..C,EUR,GEN,V198808-199008

RED MICA,3H4

main69220-14100-33iMA70198908-199305

BLUEISH GRAY M.,182

main69220-14100-34iMA70198808-198908

BLUE METALLIC/MICA,8E3

main69220-14100-38iMA70198908-199305

SUPER WHITE 4,050

main69220-14100-42iMA70..C,GEN,V199008-199108

RED MICA,3H8

main69220-14100-54iMA70198908-199008

DARK BLUE M. M.,8G5

main69220-14100-D0iMA70..C,GEN,V199108-199305

RED MICA,3K3

main69220-14100-H0iMA70..C199108-199305

MEDIUM TORQUOISE M.,749

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iMA70¥210198808-199305

69271HANDLE, FRONT DOOR INSIDE, RH

main69271-20090-03iMA70199008-199305

SHADOW GRAY,TRIM1#

sub69271-20090¥1,260

main69271-20090-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub69271-20090¥1,260

main69271-20090-12iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub69271-20090¥1,260

main69271-20090-13iMA70..C,EUR,GEN,V198808-199008

MEDIUM GRAY,TRIM1#

sub69271-20090¥1,260

main69271-20090-22iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub69271-20090¥1,260

main69271-20090-26iMA70..LHD..C198808-199108

BROWN,TRIM4#

sub69271-20090¥1,260

69272DHANDLE, FRONT DOOR INSIDE, LH

main69272-20060-03iMA70199008-199305

SHADOW GRAY,TRIM1#

sub69272-20060¥1,260

main69272-20060-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub69272-20060¥1,260

main69272-20060-12iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub69272-20060¥1,260

main69272-20060-13iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub69272-20060¥1,260

main69272-20060-22iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub69272-20060¥1,260

main69272-20060-26iMA70198808-199108

BROWN,TRIM4#

sub69272-20060¥1,260

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-14040-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub69277-14040¥580

main69277-14040-03iMA70198808-199008

MEDIUM GRAY,TRIM1#

sub69277-14040¥580

main69277-14040-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub69277-14040¥580

main69277-14040-06iMA70..C,EUR,GEN198808-199108

BROWN,TRIM4#

sub69277-14040¥580

main69277-14040-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub69277-14040¥580

main69277-14040-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub69277-14040¥580

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-14010-02iMA70..ARL,GEN,V198808-199008

MAROON,TRIM3#

sub69278-14010¥430

main69278-14010-03iMA70..C,EUR,GEN,V198808-199008

MEDIUM GRAY,TRIM1#

sub69278-14010¥430

main69278-14010-04iMA70198808-199305

DEEP BLUE,TRIM8#

sub69278-14010¥430

main69278-14010-06iMA70..ARL,C,EUR,GEN198808-199108

BROWN,TRIM4#

sub69278-14010¥430

main69278-14010-12iMA70..ARL,GEN,V199008-199305

DEEP RED,TRIM3#

sub69278-14010¥430

main69278-14010-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub69278-14010¥430

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iMA70¥200198808-199305

LH

main69293-12060iMA70¥200198808-199305

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-14310iMA70..ARL,V¥8,500198808-199108

main69310-14321iMA70..LHD..(C,EUR,GEN)¥8,800198808-199108

main69310-14360iMA70..RHD..(C,EUR,GEN)¥8,800198808-199108

main69310-14380iMA70..LHD;MA70..ARL¥7,600199108-199305

main69310-14390iMA70..RHD..(C,GEN)¥8,700199108-199305

69320LOCK ASSY, FRONT DOOR, LH

main69320-14280iMA70..ARL,V¥8,500198808-199108

main69320-14321iMA70..LHD..(C,EUR,GEN)¥8,800198808-199108

main69320-14330iMA70..RHD..(C,EUR,GEN)¥8,800198808-199108

main69320-14350iMA70..LHD..(C,GEN)¥8,700199108-199305

main69320-14360iMA70..V;MA70..RHD¥7,600199108-199305

69333ASTABILIZER, DOOR MALE, RH

main69333-14010iMA70..SPR¥1,060198808-199305

69334ASTABILIZER, DOOR MALE, LH

main69334-14010iMA70..SPR¥1,060198808-199305

69335ASTABILIZER, DOOR FEMALE, RH

main69335-14010iMA70..SPR¥1,190198808-199305

69336ASTABILIZER, DOOR FEMALE, LH

main69336-14010iMA70..SPR¥1,190198808-199305

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iMA70¥1,220198808-199305

69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH

main69610-14030iMA70¥2,170198808-199305

69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH

main69620-14030iMA70¥2,170198808-199305

69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH

main69710-14070-02iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main69710-14070-03iMA70..RHD198808-199008

MEDIUM GRAY METALLIC,TRIM1#

main69710-14070-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main69710-14070-06iMA70..RHD198808-199008

BROWN,TRIM4#

main69710-14070-12iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

main69710-14070-13iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main69710-20060-03iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main69710-20060-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main69710-20060-12iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main69710-20060-13iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

main69710-20060-16iMA70..LHD..C198808-199108

BROWN,TRIM4#

main69710-20060-16iMA70..LHD199108-199305

BROWN,TRIM1#

main69710-20060-22iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-14090iMA70¥740198808-199305

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-14090iMA70¥740198808-199305

69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH

main69720-14070-02iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

main69720-14070-03iMA70..LHD198808-199008

MEDIUM GRAY METALLIC,TRIM1#

main69720-14070-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

main69720-14070-06iMA70..LHD198808-199108

BROWN,TRIM4#

main69720-14070-12iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

main69720-14070-13iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

main69720-20060-03iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

main69720-20060-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

main69720-20060-12iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

main69720-20060-13iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

main69720-20060-16iMA70..RHD..(C,EUR,GEN)198808-199008

BROWN,TRIM4#

main69720-20060-22iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20020iMA70¥180198808-199305

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-14020iMA70¥2,020198808-199305

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20190iMA70¥220198808-199305

OPEN LINK,RH

sub69759-20200¥190

main69759-20200iMA70¥190198808-199305

OPEN LINK,LH

main69759-24050iMA70¥240198808-199305

LOCKING LINK,RH

main69759-24060iMA70¥290198808-199305

LOCKING LINK,LH

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-14020iMA70¥2,020198808-199305

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-14010-03iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

sub69761-14010¥450

main69761-14010-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

sub69761-14010¥450

main69761-14010-12iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

sub69761-14010¥450

main69761-14010-13iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

sub69761-14010¥450

main69761-14010-16iMA70..RHD198808-199008

BROWN,TRIM4#

sub69761-14010¥450

main69761-14010-22iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

sub69761-14010¥450

main69761-14020-03iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

sub69761-14020¥580

main69761-14020-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

sub69761-14020¥580

main69761-14020-12iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

sub69761-14020¥580

main69761-14020-13iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

sub69761-14020¥580

main69761-14020-22iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

sub69761-14020¥580

main69761-14020-26iMA70..LHD..(C,EUR,GEN)198808-199108

BROWN,TRIM4#

sub69761-14020¥580

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-14010-03iMA70..LHD199008-199305

SHADOW GRAY,TRIM1#

sub69762-14010¥720

main69762-14010-04iMA70..LHD198808-199305

DEEP BLUE,TRIM8#

sub69762-14010¥720

main69762-14010-12iMA70..LHD..(GEN,V)198808-199008

MAROON,TRIM3#

sub69762-14010¥720

main69762-14010-13iMA70..LHD198808-199008

MEDIUM GRAY,TRIM1#

sub69762-14010¥720

main69762-14010-16iMA70..LHD..(C,EUR,GEN)198808-199108

BROWN,TRIM4#

sub69762-14010¥720

main69762-14010-22iMA70..LHD..TWC199008-199305

DEEP RED,TRIM3#

sub69762-14010¥720

main69762-14020-03iMA70..RHD199008-199305

SHADOW GRAY,TRIM1#

sub69762-14020¥360

main69762-14020-04iMA70..RHD198808-199305

DEEP BLUE,TRIM8#

sub69762-14020¥360

main69762-14020-12iMA70..RHD..(ARL,GEN)198808-199008

MAROON,TRIM3#

sub69762-14020¥360

main69762-14020-13iMA70..RHD198808-199008

MEDIUM GRAY,TRIM1#

sub69762-14020¥360

main69762-14020-22iMA70..RHD..(ARL,GEN)199008-199305

DEEP RED,TRIM3#

sub69762-14020¥360

main69762-14020-26iMA70..RHD198808-199008

BROWN,TRIM4#

sub69762-14020¥360

8401

8511

9010506118

main90105-06118¥120

9015960081

main90159-60081¥70

9015960268

main90159-60268¥130

9015960303

main90159-60303¥70

9015960329

main90159-60329¥120

9015980020

main90159-80020¥120

9016720002

main90167-20002¥120

9017908096

main90179-08096¥110

9018906018

main90189-06018¥80

9046804124

main90468-04124¥120

9046804125

main90468-04125¥120

9046804126

main90468-04126¥120

9165140612

main91651-40612¥70

9331514008

main93315-14008¥80

9338516010

main93385-16010¥110

9356054016

main93560-54016¥60

9356814514

main93568-14514¥120

48 parts on this diagram · 1 diagram in section
