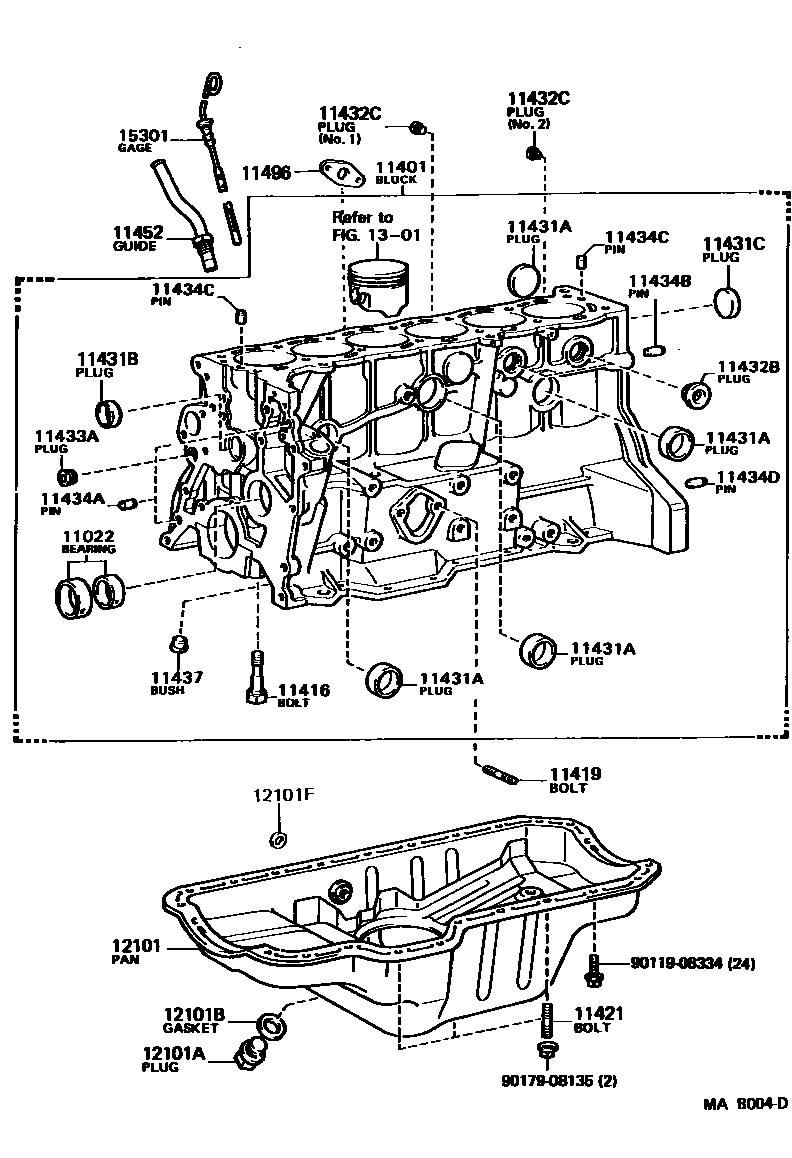

Toyota SUPRA — CYLINDER BLOCK
11022BEARING SET, PUMP DRIVE SHAFT
11401BLOCK SUB-ASSY, CYLINDER
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11419BOLT, STUD(FOR FUEL PUMP)
11421BOLT, STUD(FOR OIL PAN)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11432BPLUG, W/HEAD TAPER SCREW, NO.2
11432CPLUG, W/HEAD TAPER SCREW, NO.3
NO.1
NO.2
11433APLUG, STRAIGHT, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=22,OD=10
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=22,OD=10
11437BUSH, OIL PUMP SHAFT GUIDE
11452GUIDE, OIL LEVEL GAGE
11496GASKET, OIL HOLE COVER PLATE
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101FGASKET(FOR OIL COOLER)
1301
15301GAGE SUB-ASSY, OIL LEVEL
9011908334
9017908135
26 parts on this diagram · 2 diagrams in section
