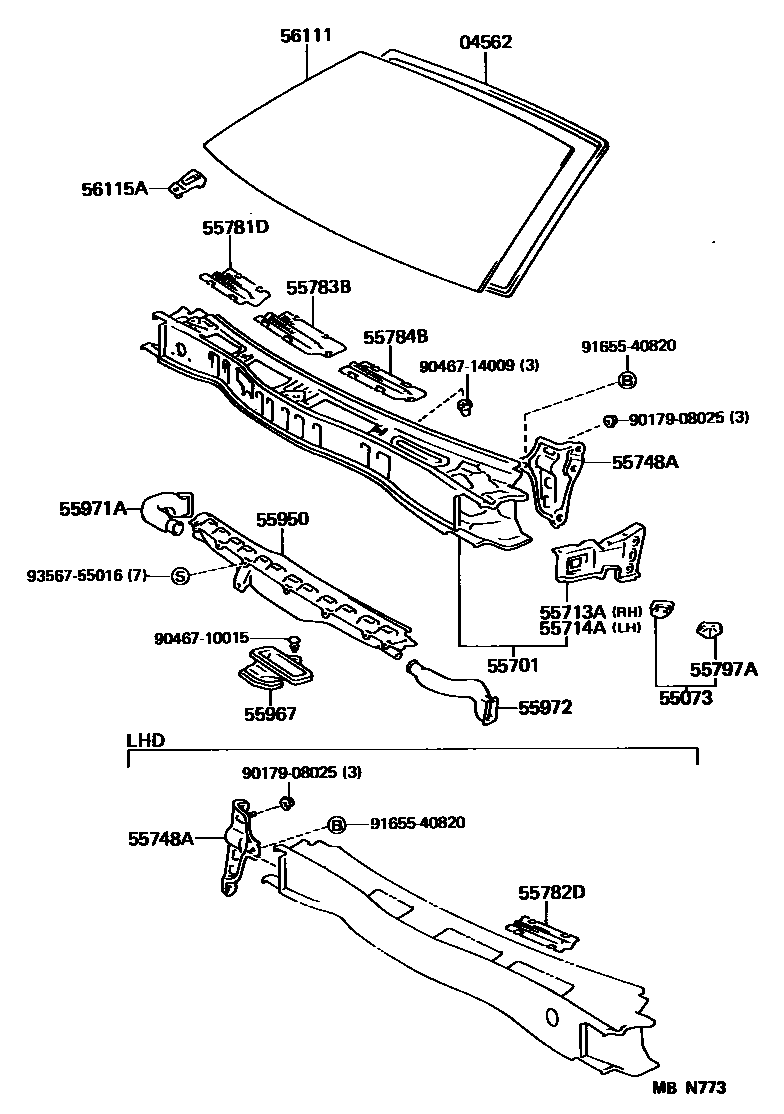

Toyota SUPRA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iMA70¥2,390198808-199305

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iMA70¥740198808-199305

55701PANEL SUB-ASSY, COWL

main55700-14770iMA70..RHD¥42,500198808-199305

sub55700-14760¥43,300

main55700-14780iMA70..LHD¥42,500198808-199305

55713APANEL, COWL TOP SIDE, RH

main55713-14100iMA70¥3,030198808-199305

55714APANEL, COWL TOP SIDE, LH

main55714-14100iMA70¥3,030198808-199305

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-14040iMA70..RHD¥2,840198808-199305

main55748-14050iMA70..LHD¥2,840198808-199305

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-14130iMA70..RHD¥820198808-199305

55782DLOUVER, COWL TOP VENTILATOR, LH

main55781-14160iMA70..LHD198808-199305

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14090iMA70..RHD¥790198808-199305

main55783-14120iMA70..LHD¥3,680198808-199305

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14110iMA70..RHD¥860198808-199305

main55784-14120iMA70..LHD¥3,680198808-199305

55797ASEAL, COWL WATER EXTRACT

main55797-20030iMA70¥260198808-199305

55950NOZZLE ASSY, DEFROSTER

main55951-14171iMA70..RHD¥4,140198808-199305

main55951-14181iMA70..LHD¥4,140198808-199305

55967NOZZLE, DEFROSTER, LOWER

main55967-14010iMA70..RHD¥1,400198808-199305

main55967-14020iMA70..LHD¥1,400198808-199305

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14040iMA70¥1,190198808-199305

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14050iMA70¥1,190198808-199305

56111GLASS, WINDSHIELD

main56111-14421iMA70..GEN;MA70..LHD..(C,EUR)¥113,000198808-199305

*TL,T=5.3

sub56111-14441¥121,000

main56111-14431iMA70..RHD..GEN¥108,000198808-198908

*LAM,T=5.3,TINTED GREEN

sub56111-14441¥121,000

main56111-14431iMA70..ARL¥108,000198808-199204

*LAM,T=5.3

sub56111-14441¥121,000

main56111-14441iMA70..5F..V;MA70..RHD..4FC..EUR;MA70..4FC..TWC..(C,V);MA70..RHD..5F..(C,EUR);MA70..RHD..4FC..TWT..C¥121,000198808-199305

*TL,T=5.3

sub56111-14442¥121,000

main56111-14441iMA70..GEN¥121,000198808-199305

*TL,T=5.3,TINTED GREEN

sub56111-14442¥121,000

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14010iMA70¥610198808-199305

9017908025

main90179-08025¥80

9046710015

main90467-10015¥120

9046714009

main90467-14009¥90

9165540820

main91655-40820¥140

9356755016

main93567-55016¥110

22 parts on this diagram · 1 diagram in section
