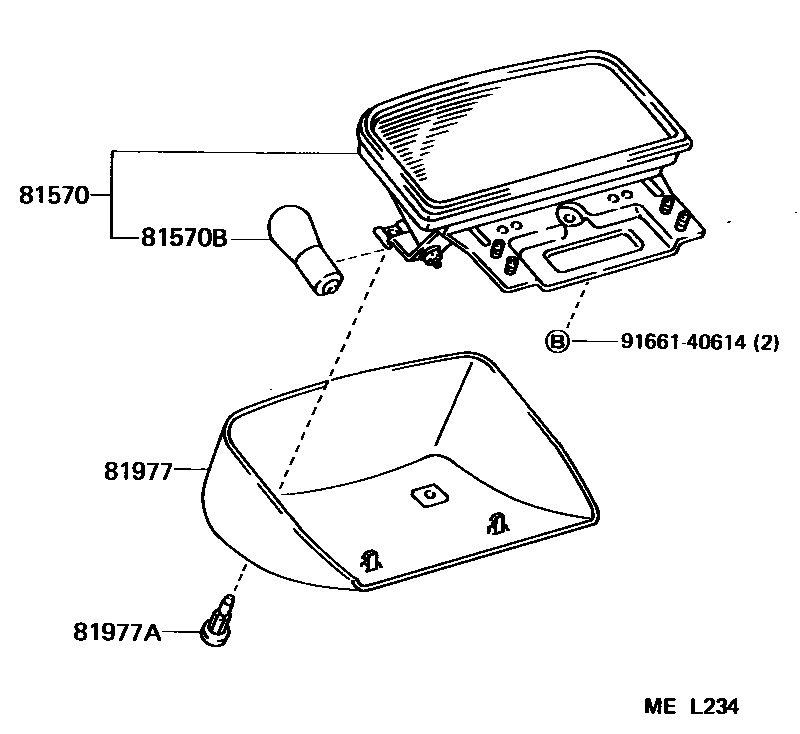

Toyota SUPRA — CENTER STOP LAMP

0001 1 0002 1W/RR SPOILER

81570LAMP ASSY, CENTER STOP

main81570-14020iMA70..ARL¥15,400198808-199004

sub81570-14021¥14,400

main81570-14021iMA70..ARL¥14,400199004-199008

main81570-14040iMA70..ARL¥28,400199008-199305

main81570-14040iMA70..ARL¥28,400198808-199008

W(REAR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iMA70..ARL¥210198808-199008

12V 27W

81977COVER, CENTER STOP LAMP

main81977-14010-02iMA70..ARL198808-199008

MAROON,TRIM3#

sub81977-14010¥2,690

main81977-14010-03iMA70..ARL198808-199008

MEDIUM GRAY,TRIM1#

sub81977-14010¥2,690

main81977-14010-04iMA70..ARL198808-199008

DEEP BLUE,TRIM8#

sub81977-14010¥2,690

main81977-14010-06iMA70..ARL198808-199008

BROWN,TRIM4#

sub81977-14010¥2,690

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07041-10iMA70..ARL198808-198901

MEDIUM GRAY,TRIM1#

sub90467-07041¥140

main90467-07041-24iMA70..ARL198808-199008

DEEP BLUE,TRIM8#

sub90467-07041¥140

main90467-07041-52iMA70..ARL198808-199008

MAROON,TRIM3#

sub90467-07041¥140

main90467-07041-56iMA70..ARL198808-198901

BROWN,TRIM4#

sub90467-07041¥140

main90467-07041-B2iMA70..LB..5F..ARL;MA70..4FC..TWT..ARL198901-199008

MEDIUM GRAY,TRIM1#

sub90467-07041¥140

main90467-07041-E1iMA70..LB..5F..ARL;MA70..4FC..TWT..ARL198901-199008

BROWN,TRIM4#

sub90467-07041¥140

9166140614

main91661-40614¥120

5 parts on this diagram · 2 diagrams in section
