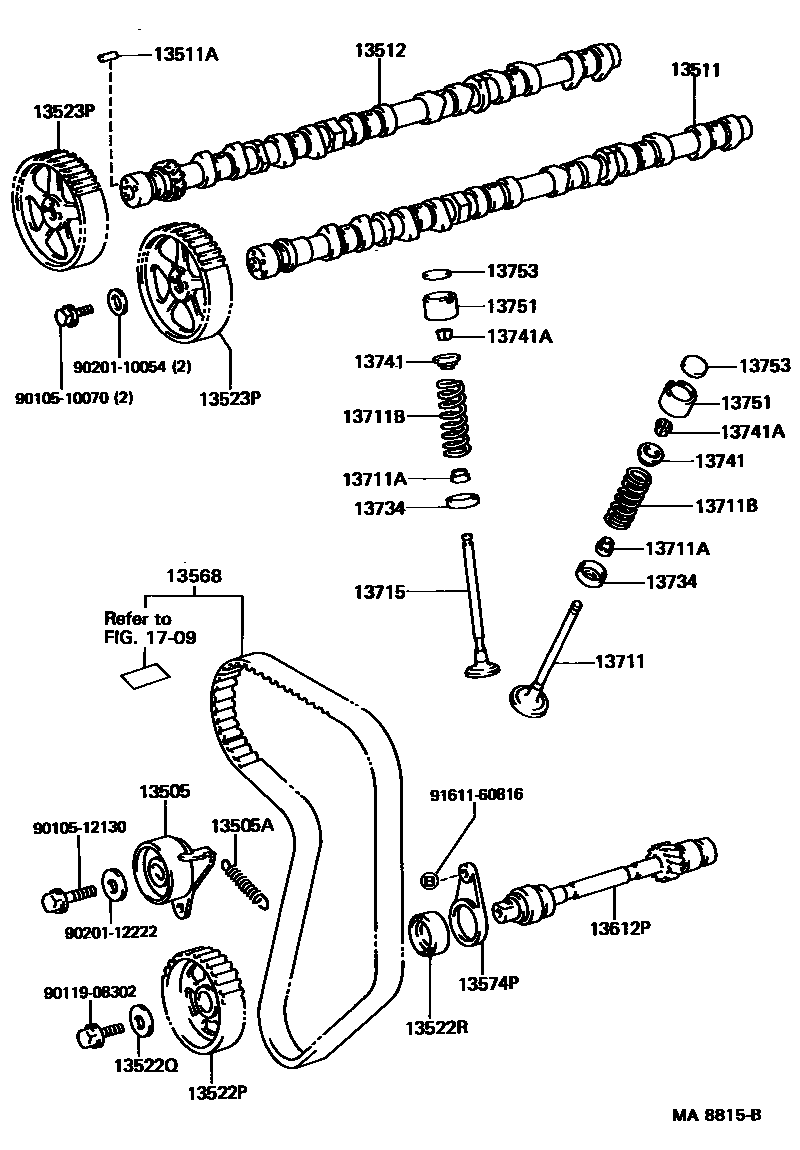

Toyota SUPRA — CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13512CAMSHAFT, NO.2
13522PPULLEY, PUMP DRIVE SHAFT
13522QWASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY)
13522RCOLLAR(FOR PUMP DRIVE SHAFT PULLEY)
13523PPULLEY, CAMSHAFT TIMING
13568BELT, TIMING
13574PPLATE, PUMP DRIVE SHAFT THRUST
13612PSHAFT, PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=3.25
T=3.30
1709
9010510070
9010512130
9011908302
9020110054
9020112222
9161160816
28 parts on this diagram · 1 diagram in section
