Toyota SUPRA — BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iMA70¥2,390198808-199305

64795ATRIM, BACK WINDOW OPENING

main64795-14020iMA70¥3,030198808-199305

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-14010iMA70¥260198808-199004

sub64818-14011¥240

main64818-14011iMA70¥240199004-199305

67005PANEL SUB-ASSY, BACK DOOR

main67005-14312iMA70¥68,700198808-199305

main67005-14621iMA70..LHD..C;MA70..EUR,GEN,V;MA70..RHD..TWT..C¥68,700198808-199305

W(REAR SPOILER)

main67005-14621iMA70..RHD..TWC..C¥68,700198908-199008

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09047iMA70¥190198808-199305

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-14010iMA70¥170198808-199305

67281BSTOPPER, BACK DOOR, LOWER

main67281-14040iMA70¥530198808-199305

67282ECUSHION, BACK DOOR STOPPER, NO.3

main67282-14010iMA70¥170198808-199305

67290DAMPER ASSY, BACK DOOR

main67290-14010iMA70..LHD..(C,EUR)¥5,700198808-199305

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-14030iMA70¥740198808-199305

67751BOARD, BACK DOOR TRIM

main64781-14051-02iMA70..ARL198808-199008

MAROON,TRIM3#

main64781-14051-03iMA70..ARL198808-199008

MEDIUM GRAY,TRIM1#

main64781-14051-04iMA70..ARL198808-199305

DEEP BLUE,TRIM8#

main64781-14051-06iMA70..ARL198808-199008

BROWN,TRIM4#

main64781-14051-12iMA70..ARL199008-199305

DEEP RED,TRIM3#

main64781-14051-13iMA70..ARL199008-199305

SHADOW GRAY,TRIM1#

main64781-14061-02iMA70..ARL198808-199008

MAROON,TRIM3#

main64781-14061-02iMA70..ARL198808-199008

W(REAR SPOILER),MAROON,TRIM3#

main64781-14061-03iMA70..C,EUR,GEN,V198808-199008

MEDIUM GRAY,TRIM1#

main64781-14061-03iMA70..ARL198808-199008

W(REAR SPOILER),MEDIUM GRAY,TRIM1#

main64781-14061-04iMA70..C,EUR,GEN,V198808-199305

W(REAR SPOILER),DEEP BLUE,TRIM8#

main64781-14061-04iMA70..C,EUR,GEN,V198808-199305

DEEP BLUE,TRIM8#

main64781-14061-06iMA70..C,GEN,V198808-199008

W(REAR SPOILER),BROWN,TRIM4#

main64781-14061-06iMA70..C,GEN,V198808-199108

BROWN,TRIM4#

main64781-14061-12iMA70..GEN,V199008-199305

W(REAR SPOILER),DEEP RED,TRIM3#

main64781-14061-12iMA70..ARL199008-199305

DEEP RED,TRIM3#

main64781-14061-13iMA70..C,GEN,V199008-199305

W(REAR SPOILER),SHADOW GRAY,TRIM1#

main64781-14061-13iMA70..C,GEN,V199008-199305

SHADOW GRAY,TRIM1#

67881AWEATHERSTRIP, BACK DOOR

main67881-14110iMA70¥7,800198808-199305

68131GLASS, BACK DOOR

main68131-14181iMA70..ARL,GEN,V;MA70..LHD..(C,EUR)¥99,600198808-199305

*EHTT,T=4.0

main68131-14191iMA70..LHD..(C,EUR)¥105,000198808-199305

*EHTT,T=4.0,COLD SPEC

main68131-14191iMA70..RHD..(C,EUR)¥105,000198808-199305

*EHTT,T=4.0

9010908055

main90109-08055¥370

9015950116

main90159-50116¥130

9046804116

main90468-04116¥120

9046804127

main90468-04127¥120

9046805060

main90468-05060¥90

9095001038

main90950-01038¥220

9095001529

main90950-01529¥410

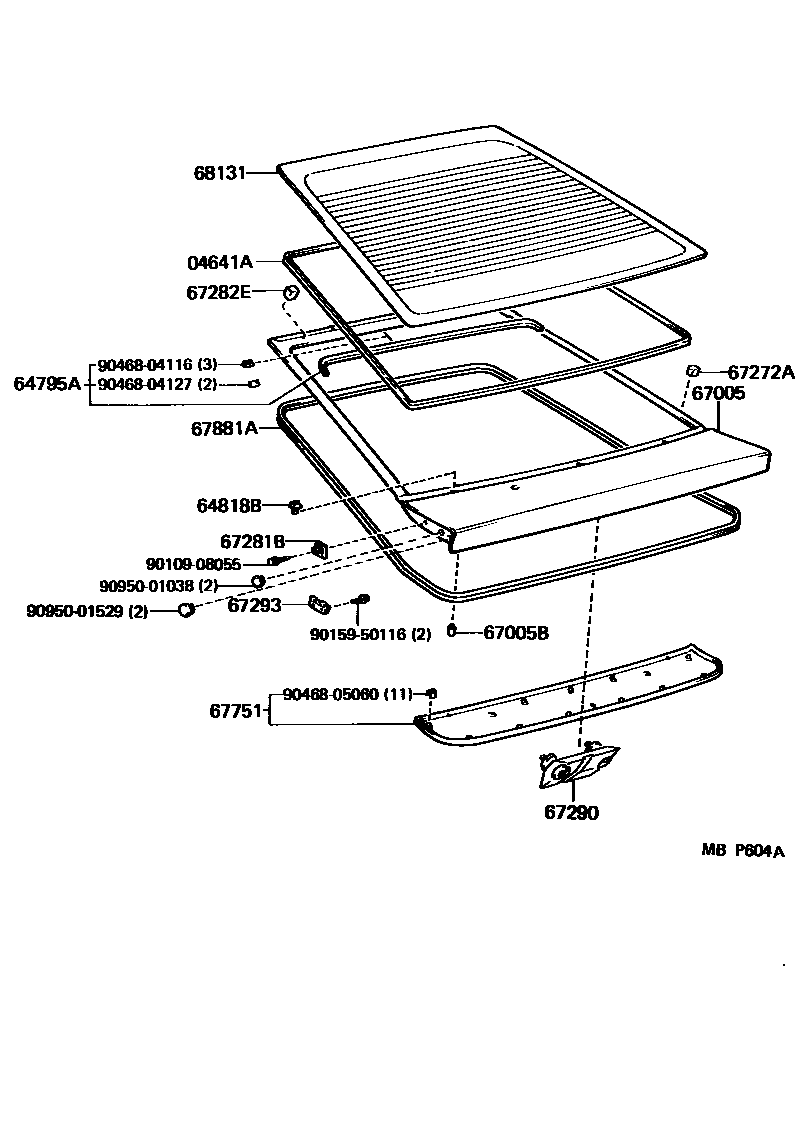

20 parts on this diagram · 1 diagram in section
