Toyota SUPRA — WIRING & CLAMP

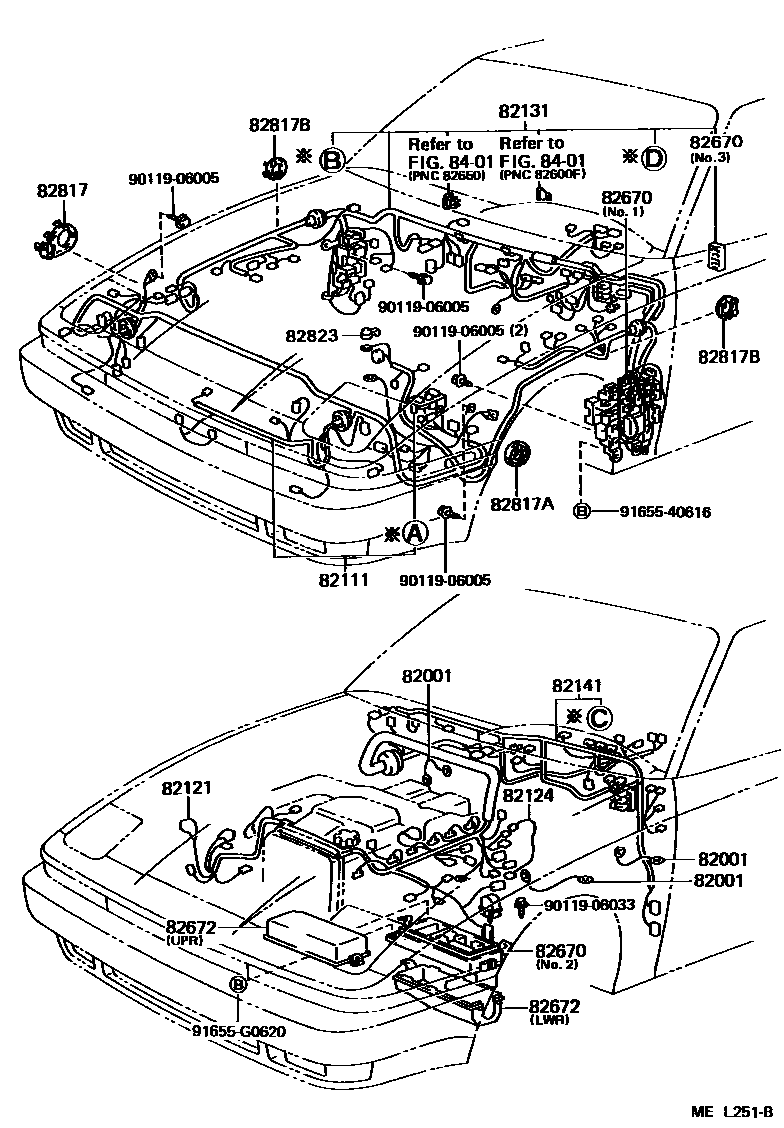

Parts diagram
82001CABLE, BOND, NO.1
main90980-07176i¥680198808-198908
TO CLUTCH
main90980-07176i¥680199008-199305
TO CLUTCH
main90980-07176i¥680198908-199008
TO CLUTCH
main90980-07268i¥510199008-199305
TO EXTENSION
main90980-07268i¥510198908-199008
TO EXTENSION
main90980-07268i¥510198808-198908
TO EXTENSION
main90980-07308i¥790199008-199305
TO ENGINE
main90980-07308i¥790198808-198908
TO ENGINE
main90980-07308i¥790198908-199008
TO ENGINE
82111WIRE, ENGINE ROOM MAIN
main82111-1B180i¥79,100198808-198908
main82111-1B181i¥79,600198908-199008
main82111-1B190i¥79,100198808-198908
W(TEMS)
main82111-1B191i¥79,600198908-199008
W(TEMS)
main82111-1B200i¥90,400198808-198908
W(*66)
main82111-1B201i¥90,800198908-199008
W(*66)
main82111-1B210i¥97,300198808-198908
main82111-1B211i¥97,900198908-199008
main82111-1B370i¥45,000199008-199305
main82111-1B380i¥48,300199008-199305
W(TEMS)
main82111-1B390i¥51,200199008-199305
W(*66)
main82111-1B400i¥97,100199008-199305
82121WIRE, ENGINE
main82121-14530i¥59,200198808-198908
main82121-14531i¥70,900198908-199008
main82121-14540i¥70,600198808-198908
main82121-14541i¥79,600198908-199008
main82121-14550i¥70,600198808-198908
main82121-14551i¥79,600198908-199008
main82121-14560i¥70,600198808-198908
main82121-14561i¥79,600198908-199008
main82121-14570i¥59,200198808-198908
CALIFORNIA SPEC
main82121-14571i¥70,900198908-199008
CALIFORNIA SPEC
main82121-14580i¥79,100198808-198908
CALIFORNIA SPEC
main82121-14581i¥79,600198908-199008
CALIFORNIA SPEC
main82121-14690i¥39,200199008-199108
main82121-14691i¥38,800199108-199305
main82121-14700i¥45,500199008-199108
main82121-14701i¥41,900199108-199305
main82121-14710i¥45,500199008-199108
main82121-14711i¥45,000199108-199305
main82121-14720i¥45,500199008-199108
main82121-14721i¥48,300199108-199305
main82121-14730i¥39,200199008-199108
CALIFORNIA SPEC
main82121-14731i¥38,800199108-199305
CALIFORNIA SPEC
main82121-14740i¥42,300199008-199108
CALIFORNIA SPEC
main82121-14741i¥41,900199108-199305
CALIFORNIA SPEC
82124WIRE, ENGINE, NO.4
main82124-14050i¥980198808-198908
main82124-14051i¥1,870198908-199008
main82124-14060i¥1,420199008-199305
82131WIRE, COWL
main82131-1D060i¥117,000198808-198908
main82131-1D070i¥126,000198808-198908
W(*73) OR W(TEMS)
main82131-1D080i¥143,000198808-198908
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D080i¥143,000198808-198908
W(*66)
main82131-1D090i¥117,000198808-198908
main82131-1D100i¥134,000198808-198908
W(*73) OR W(TEMS)
main82131-1D110i¥153,000198808-198908
W(*66)
main82131-1D110i¥153,000198808-198908
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D120i¥117,000198808-198908
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D130i¥134,000198808-198908
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D140i¥126,000198808-198908
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D150i¥153,000198808-198908
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D160i¥134,000198808-198908
main82131-1D170i¥143,000198808-198908
main82131-1D250i¥135,000198908-199008
main82131-1D260i¥143,000198908-199008
W(*73) OR W(TEMS)
main82131-1D270i¥162,000198908-199008
W(*66)
main82131-1D270i¥162,000198908-199008
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D280i¥143,000198908-199008
main82131-1D290i¥154,000198908-199008
W(*73) OR W(TEMS)
main82131-1D300i¥162,000198908-199008
W(*66)
main82131-1D300i¥162,000198908-199008
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D310i¥143,000198908-199008
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D320i¥154,000198908-199008
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D330i¥154,000198908-199008
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D340i¥162,000198908-199008
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D350i¥153,000198908-198910
sub82131-1D351¥154,000
main82131-1D351i¥154,000198910-199008
main82131-1D360i¥161,000198908-198910
sub82131-1D361¥162,000
main82131-1D361i¥162,000198910-199008
main82131-1D460i¥143,000199008-199108
main82131-1D461i¥133,000199108-199305
main82131-1D470i¥154,000199008-199108
W(*73) OR W(TEMS)
main82131-1D471i¥151,000199108-199305
W(*73) OR W(TEMS)
main82131-1D480i¥162,000199008-199108
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D480i¥162,000199008-199108
W(*66)
main82131-1D481i¥160,000199108-199305
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D481i¥160,000199108-199305
W(*66)
main82131-1D490i¥154,000199008-199108
main82131-1D491i¥142,000199108-199305
main82131-1D500i¥162,000199008-199108
W(*73) OR W(TEMS)
main82131-1D501i¥151,000199108-199305
W(*73) OR W(TEMS)
main82131-1D510i¥169,000199008-199108
W(*66)
main82131-1D510i¥169,000199008-199108
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D511i¥167,000199108-199305
W(*66) OR W(*66 & TEMS) OR W(*66 & *73) OR W(*66 & *73 & TEMS)
main82131-1D511i¥167,000199108-199305
W(*66)
main82131-1D520i¥154,000199008-199108
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D521i¥151,000199108-199305
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D530i¥162,000199008-199108
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D531i¥160,000199108-199305
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D540i¥154,000199008-199108
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D541i¥160,000199108-199305
*CAL OR *CAL & W(*73) OR *CAL & W(*73 & TEMS) OR *CAL & W(TEMS)
main82131-1D550i¥169,000199008-199108
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D551i¥167,000199108-199305
*CAL & W(*66) OR *CAL & W(*66 & *73) OR *CAL & W(*66 & TEMS) OR *CAL & W(*66 & TEMS & *73)
main82131-1D560i¥135,000199008-199108
main82131-1D561i¥133,000199108-199305
main82131-1D570i¥143,000199008-199108
main82131-1D571i¥133,000199108-199305
82141WIRE, INSTRUMENT PANEL
main82141-1B010i¥39,100198808-198908
main82141-1B011i¥46,000198908-199008
main82141-1B020i¥45,900198808-198908
W(*66) OR W(TEMS)
main82141-1B020i¥45,900198808-198908
W(*66)
main82141-1B021i¥46,000198908-199008
W(*66) OR W(TEMS)
main82141-1B030i¥45,900198808-198908
main82141-1B031i¥46,000198908-199008
main82141-1B040i¥45,900198808-198908
W(*66)
main82141-1B041i¥46,000198908-199008
W(*66)
main82141-1B090i¥46,000198908-199008
main82141-1B150i¥23,700199008-199108
main82141-1B151i¥23,500199108-199305
main82141-1B160i¥25,200199008-199108
W(*66) OR W(TEMS)
main82141-1B161i¥23,500199108-199305
W(*66) OR W(TEMS)
main82141-1B170i¥23,700199008-199108
main82141-1B171i¥23,500199108-199305
main82141-1B180i¥25,200199008-199108
W(*66)
main82141-1B181i¥23,500199108-199305
W(*66)
main82141-1B190i¥22,200199008-199108
main82141-1B191i¥25,000199108-199305
82670BLOCK ASSY, JUNCTION, NO.1
main82671-14010i¥22,500198908-199008
NO.1
main82671-14010i¥22,500199008-199305
NO.1
main82671-14010i¥22,500198808-198908
NO.1
main82671-14030i¥6,200199008-199305
NO.3
main82671-14030i¥6,200198808-198908
NO.3
main82671-14030i¥6,200198908-199008
NO.3
main82671-24010i¥6,200199008-199305
NO.2
main82671-24010i¥6,200198908-199008
NO.2
main82671-24010i¥6,200198808-198908
NO.2
82672COVER, JUNKTION BLOCK
main82672-14070i¥2,260199008-199305
UPR
main82672-14070i¥2,260198808-198908
UPR
main82672-14070i¥2,260198908-199008
UPR
main82672-24010i¥2,020199008-199305
LWR
main82672-24010i¥2,020198808-198908
LWR
main82672-24010i¥2,020198908-199008
LWR
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-24140i¥740198808-199305
main82817-24150i¥390198908-199008
main82817-24150i¥390198808-198908
main82817-24150i¥390199008-199305
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-24100i¥390198808-198908
main82817-24100i¥390198908-199008
main82817-24100i¥390199008-199305
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-24110i¥380198808-198908
main82817-24110i¥380198908-199008
main82817-24110i¥380199008-199305
82823CAP, TERMINAL, NO.1
main82823-22050i¥390198808-198908
main82823-22050i¥390198908-199008
main82823-22050i¥390199008-199305
8401
9011906005
main90119-06005¥80
9011906033
main90119-06033¥130
9165540616
main91655-40616¥120
91655G0620
main91655-G0620¥120

17 parts on this diagram · 7 diagrams in section
