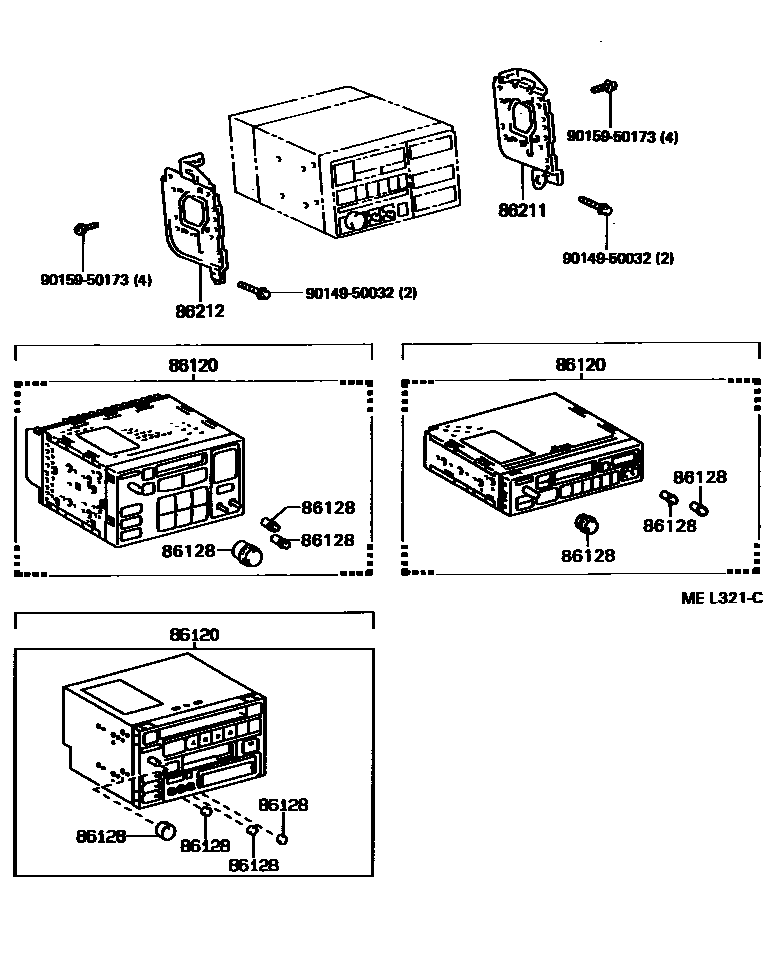

Toyota SUPRA — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14760iMA70..USA¥310,000198808-198908

main86120-14761iMA70..USA¥323,000198908-199008

main86120-14762iMA70¥328,000199008-199305

main86120-14770iMA70..USA¥167,000198808-198908

AM/FM ETR 1DIN

sub86120-14772¥187,000

main86120-14771iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥197,000198908-199008

AM/FM ETR 1DIN

sub86120-14772¥187,000

main86120-14780iMA70..USA¥304,000198808-198910

AM/FM MPX ETR 2DIN,POSSESSION

sub86120-14781¥319,000

main86120-14781iMA70..USA¥319,000199008-199305

AM/FM MPX ETR 2DIN,POSSESSION

main86120-14781iMA70..USA¥319,000198910-199008

AM/FM MPX ETR 2DIN,POSSESSION

main86120-14810iMA70..CND¥301,000198808-198908

sub86120-14811¥304,000

main86120-14811iMA70..TWC..CND;MA70..SPR..TWT..CND¥304,000198908-199008

main86120-2B290iMA70¥364,000199008-199108

main86120-33110iMA70¥310,000199108-199305

FUJITSU TEN

86128KNOB, RADIO RECEIVER

main86128-12300iMA70..USA¥630198808-198908

RADIO SIZE=1DIN,PWR/VOL

main86128-12300iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥630198908-199008

RADIO SIZE=1DIN,PWR/VOL

main86128-20060iMA70¥260199108-199305

W(CD),PWR/VOL

main86128-20080iMA70¥260199108-199305

W(CD),BASS/BAL,MID,TRE/FAD

main86128-28140iMA70¥440199008-199305

RADIO SIZE=2DIN,PWR/VOL

main86128-28140iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥440198908-199008

RADIO SIZE=2DIN,PWR/VOL

main86128-28140iMA70¥440198808-198908

RADIO SIZE=2DIN,PWR/VOL

main86128-28160iMA70¥440199008-199305

BASS/TREB,BAL/FADE

main86128-28160iMA70¥440198808-198908

BASS/TREB,BAL/FADE

main86128-28160iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥440198908-199008

BASS/TREB,BAL/FADE

86211BRACKET, RADIO, NO.1

main86211-14220iMA70¥750198808-198908

sub86211-14221¥740

main86211-14220iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥750198908-199008

sub86211-14221¥740

main86211-14220iMA70¥750199008-199011

sub86211-14221¥740

main86211-14221iMA70¥740199011-199305

86212BRACKET, RADIO, NO.2

main86212-14190iMA70¥750198808-198908

sub86212-14191¥740

main86212-14190iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥750198908-199008

sub86212-14191¥740

main86212-14190iMA70¥750199008-199011

sub86212-14191¥740

main86212-14191iMA70¥740199011-199305

9014950032

main90149-50032¥80

9015950173

main90159-50173¥70

6 parts on this diagram · 2 diagrams in section
