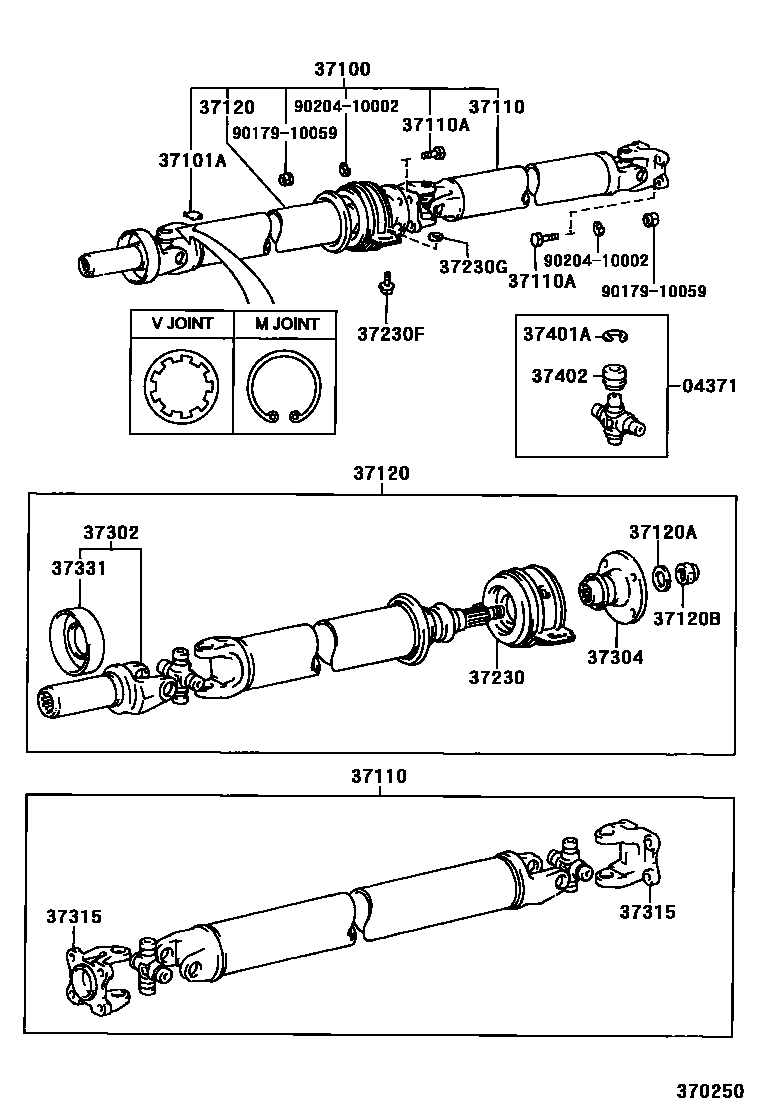

Toyota SUPRA — PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
3G
5G
7G,L=14.4
9G,L=18.5
3G,T=1.0,L=19.1
5G,T=1.0,L=31.8
7G,T=2.0
2G,T=1.0,L=12.7
4G,T=1.0,L=25.4
6G,T=2.0
8G,T=2.0
10G,T=2.0
12G,T=2.0
14G,T=2.0
16G,T=2.0
18G,T=2.0
20G,T=2.0,L=42.4
1G,T=1.0,L=6.4
22G,T=2.0,L=46.6
24G,T=2.0,L=50.8
37110SHAFT ASSY, PROPELLER
main37110-14290iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥70,200199001-199305
V JOINT
main37110-14300iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥46,500198808-199001
main37110-14300iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥46,500199001-199305
M JOINT
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX27-13
37120SHAFT ASSY, PROPELLER INTERMEDIATE
M JOINT
M JOINT
M JOINT
V JOINT
V JOINT
V JOINT
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
OD=33.5,T=4.0,V JOINT OR M JOINT,T=4.0
T=0.8,V JOINT
OD=36.6,T=0.8,M JOINT
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
M JOINT
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
L=40,L=40
L=33,L=33
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=9.0
T=6.5
T=11.0
T=13.5
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
main37304-35041iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,880198808-199305
37315YOKE, UNIVERSAL JOINT FLANGE
main37315-35040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥3,940198908-199305
M JOINT
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.125,MARK 1
T=2.175,MARK 2
T=2.225,MARK 3
T=2.275,MARK 4
T=2.325,MARK 5
T=2.375,MARK 6
T=2.425,MARK 7
T=2.475,MARK 8
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017910059
9020410002
19 parts on this diagram · 2 diagrams in section
