Toyota SUPRA — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-42020i7MG#..MA70¥3,340198808-198901

main12311-42040i7MG#..MA70¥7,500198901-198908

main12311-42040i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥7,500198908-199008

main12311-42040i7MG#..MA70¥7,500199008-199305

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-42020i7MG#..MA70¥3,340198808-198901

main12315-42040i7MG#..MA70¥6,000198901-198908

main12315-42040i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥6,000198908-199008

main12315-42040i7MG#..MA70¥6,000199008-199305

12323BRACKET, ENGINE MOUNTING ABSORBER

main12323-42010i7MGTE..MA70¥1,610198808-198901

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-42030i7MG#..MA70¥5,200198808-198901

main12361-42050i7MG#..MA70¥12,900198901-198908

main12361-42050i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥12,900198908-199008

main12361-42050i7MG#..MA70¥12,900199008-199305

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-42020i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥6,100198908-199008

main12371-42020i7MG#..MA70¥6,100198901-198908

main12371-42020i7MG#..MA70¥6,100199008-199305

main12371-70020i7MG#..MA70¥5,200198808-198901

12381STABILIZER, ENGINE MOUNTING

main12381-42010i7MG#..MA70¥2,860198808-198901

main12381-42030i7MG#..MA70¥1,490198901-198908

main12381-42030i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥1,490198908-199008

main12381-42030i7MG#..MA70¥1,490199008-199305

12385ABSORBER, ENGINE MOUNTING, NO.1

main12308-42010i7MGTE..MA70¥10,200198808-198901

12511BRACKET, ALTERNATOR, NO.1

main12511-42010i7MG#..MA70¥6,000198808-198908

main12511-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥6,000198908-199008

main12511-42010i7MG#..MA70¥6,000199008-199305

9011610097

main90116-10097¥180

9011908586

main90119-08586¥180

9011910062

main90119-10062¥250

9017910015

main90179-10015¥100

9017912010

main90179-12010¥190

9020112208

main90201-12208¥190

9161161020

main91611-61020¥240

9161161040

main91611-61040¥130

9165140814

main91651-40814¥180

9165540820

main91655-40820¥140

9419261200

main94192-61200¥190

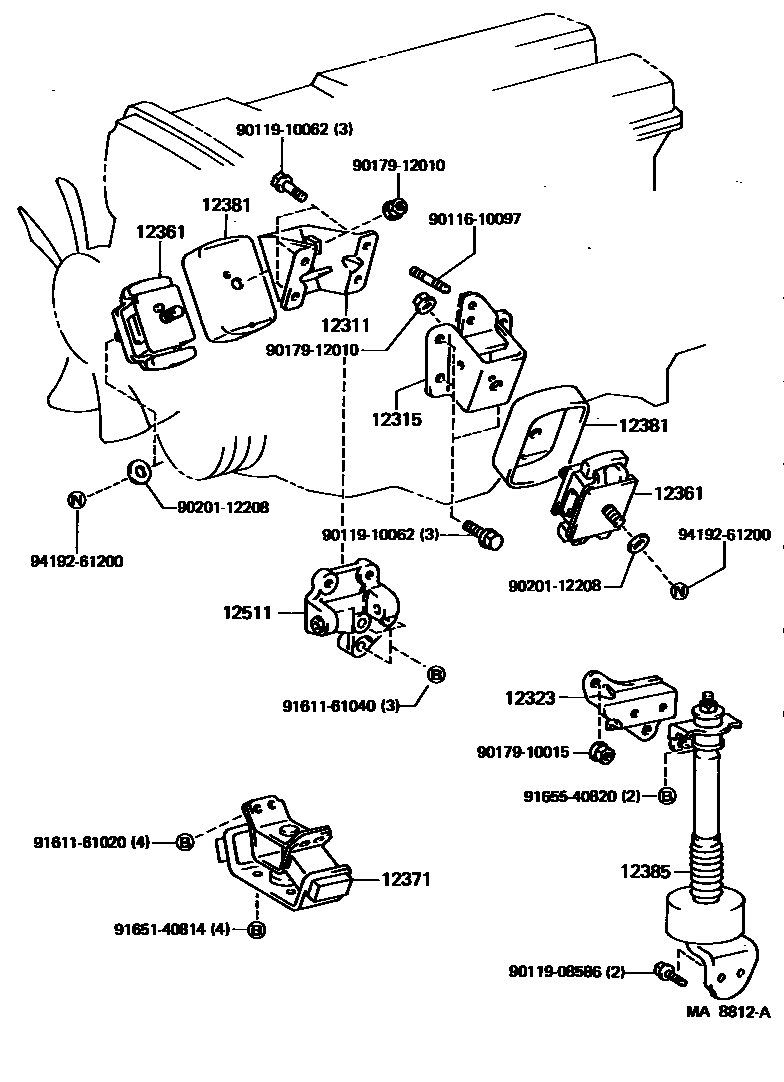

19 parts on this diagram · 2 diagrams in section
