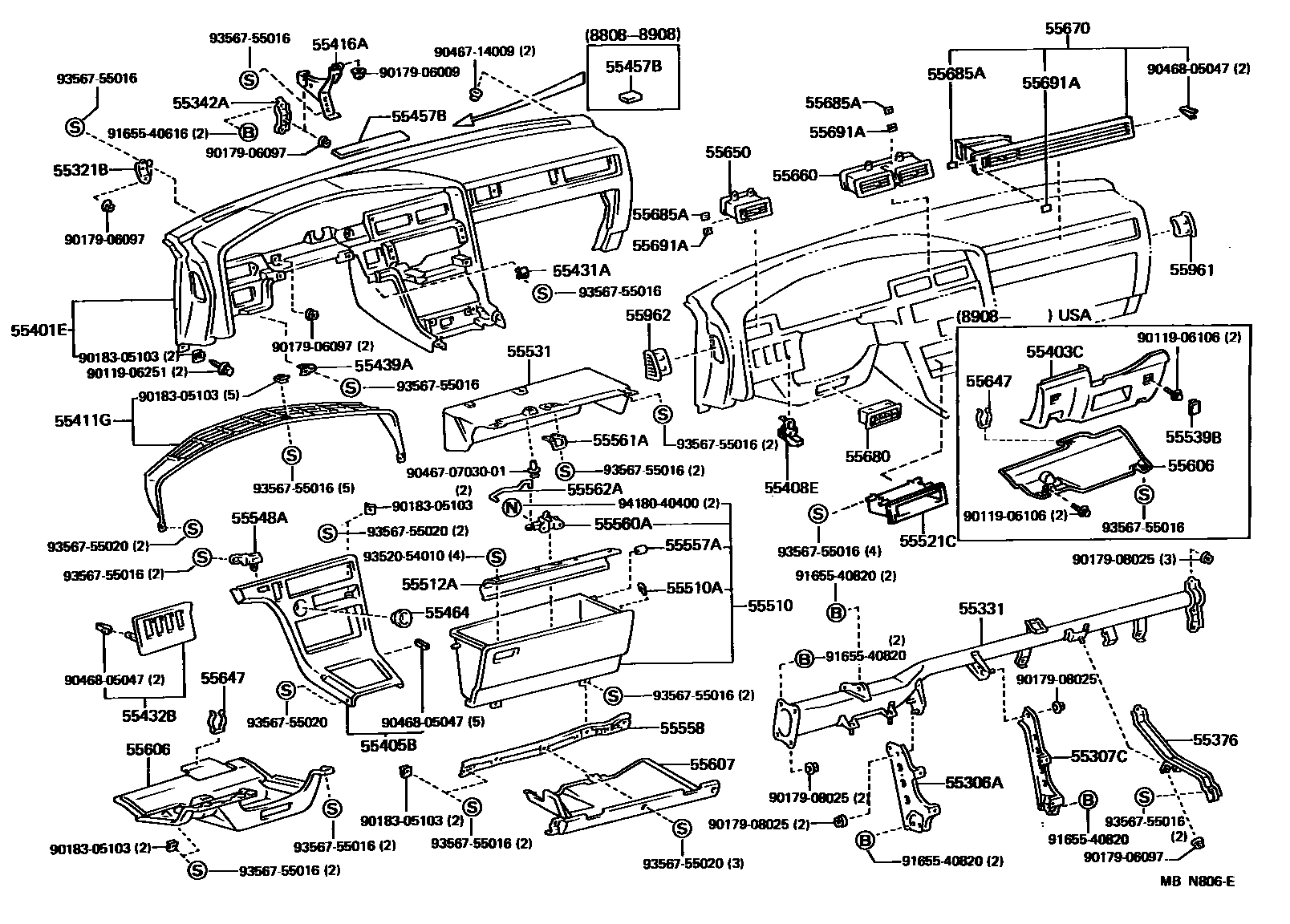

Toyota SUPRA — INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-14090iMA70¥1,830198808-198908

main55306-14100iMA70..USA¥4,020198908-199108

main55306-14100iMA70¥4,020199108-199305

main55351-14130iMA70..TWC..CND;MA70..SPR..TWT..CND¥2,090198908-199008

main55351-14130iMA70..CND¥2,090199008-199108

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-14140iMA70¥2,350199008-199305

main55307-14140iMA70¥2,350198808-198908

main55307-14140iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,350198908-199008

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-14060iMA70¥510198808-198908

main55321-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥510198908-199008

main55321-14060iMA70¥510199008-199305

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14050iMA70¥16,700198808-198908

main55330-14051iMA70..TWC..CND;MA70..SPR..TWT..CND¥16,300198908-199008

main55330-14051iMA70..CND¥16,300199008-199108

main55330-14060iMA70..USA¥20,600198908-199108

main55330-14060iMA70¥20,600199108-199305

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥510198908-199008

main55342-14040iMA70¥510199008-199305

main55342-14040iMA70¥510198808-198908

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-14040iMA70¥1,440199008-199305

main55376-14040iMA70¥1,440198808-198908

main55376-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,440198908-199008

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-14490-02iMA70198808-198908

MAROON,TRIM3#

main55401-14490-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main55401-14490-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55401-14490-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55401-14490-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55401-14490-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55401-14490-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main55401-14490-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main55401-14490-06iMA70..TWT198901-198908

BROWN,TRIM4#

main55401-14490-06iMA70..USA199008-199108

BROWN,TRIM4#

main55401-14490-06iMA70198808-198901

BROWN,TRIM4#

main55401-14490-12iMA70199008-199305

DEEP RED,TRIM3#

main55401-14490-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-14040-02iMA70..USA198908-199008

MAROON,TRIM3#

main55403-14040-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

main55403-14040-04iMA70199108-199305

DEEP BLUE,TRIM8#

main55403-14040-04iMA70..USA198908-199108

DEEP BLUE,TRIM8#

main55403-14040-06iMA70..USA198908-199108

BROWN,TRIM4#

main55403-14040-12iMA70..USA199008-199108

DEEP RED,TRIM3#

main55403-14040-12iMA70199108-199305

DEEP RED,TRIM3#

main55403-14040-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

main55403-14040-13iMA70199108-199305

SHADOW GRAY,TRIM1#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14110iMA70¥18,100198808-198908

main55405-14110iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥18,100198908-199008

main55405-14110iMA70¥18,100199008-199305

55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN

main55408-14090iMA70¥790198808-198908

main55408-14090iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥790198908-199008

main55408-14090iMA70¥790199008-199305

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-14540iMA70¥6,700198808-198908

main55411-14540iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥6,700198908-199008

main55411-14540iMA70¥6,700199008-199305

55416ARETAINER, METER HOOD, NO.1

main55416-14070iMA70¥1,280199008-199305

main55416-14070iMA70¥1,280198808-198908

main55416-14070iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,280198908-199008

55431APANEL, INSTRUMENT PANEL FINISH

main55437-14030iMA70..USA¥270198908-199108

main55437-14030iMA70¥270199108-199305

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-14240iMA70..CND¥2,840199008-199108

main55432-14240iMA70¥2,840198808-198908

main55432-14240iMA70..TWC..CND;MA70..SPR..TWT..CND¥2,840198908-199008

main55432-14250iMA70..USA¥2,210198908-199108

main55432-14250iMA70¥2,210199108-199305

55439ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3

main55439-14020iMA70..USA¥320198908-199108

main55439-14020iMA70¥320199108-199305

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55355-14060iMA70¥190198904-198908

main55355-14060iMA70..TWC..CND;MA70..SPR..TWT..CND¥190198908-199008

main55355-14060iMA70..CND¥190199008-199108

main55457-22030iMA70¥190198808-198904

main55457-22030iMA70..USA¥190198908-199108

main55457-22030iMA70¥190199108-199305

55464BASE, CIGARETTE LIGHTER

main55477-24020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,430198908-199008

main55477-24020iMA70¥1,430198808-198908

main55477-24020iMA70¥1,430199008-199305

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14170-02iMA70198808-198908

MAROON,TRIM3#

main55550-14170-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main55550-14170-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55550-14170-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55550-14170-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55550-14170-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55550-14170-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main55550-14170-06iMA70..USA199008-199108

BROWN,TRIM4#

main55550-14170-06iMA70198808-198901

BROWN,TRIM4#

main55550-14170-06iMA70..TWT198901-198908

BROWN,TRIM4#

main55550-14170-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main55550-14170-12iMA70199008-199305

DEEP RED,TRIM3#

main55550-14170-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iMA70¥110198808-198908

main90541-03015iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥110198908-199008

main90541-03015iMA70¥110199008-199305

55512APLATE, GLOVE COMPARTMENT

main55512-14070iMA70¥2,050198808-198908

main55512-14070iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,050198908-199008

main55512-14070iMA70¥2,050199008-199305

55521CCOVER, STEREO OPENING

main55521-16010iMA70¥1,750199008-199108

sub55521-16030¥1,580

55531PANEL, GLOVE COMPARTMENT

main55531-14110iMA70¥4,460198808-198908

main55531-14110iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥4,460198908-199008

main55531-14110iMA70¥4,460199008-199305

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55548-14050-02iMA70..USA198908-199008

MAROON,TRIM3#

sub55548-14050¥640

main55548-14050-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

sub55548-14050¥640

main55548-14050-04iMA70199108-199305

DEEP BLUE,TRIM8#

sub55548-14050¥640

main55548-14050-04iMA70..USA198908-199108

DEEP BLUE,TRIM8#

sub55548-14050¥640

main55548-14050-06iMA70..USA198908-199108

BROWN,TRIM4#

sub55548-14050¥640

main55548-14050-12iMA70199108-199305

DEEP RED,TRIM3#

sub55548-14050¥640

main55548-14050-12iMA70..USA199008-199108

DEEP RED,TRIM3#

sub55548-14050¥640

main55548-14050-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

sub55548-14050¥640

main55548-14050-13iMA70199108-199305

SHADOW GRAY,TRIM1#

sub55548-14050¥640

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-14040iMA70..USA¥470198808-199305

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iMA70¥230198808-198908

main55557-16010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥230198908-199008

main55557-16010iMA70¥230199008-199305

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-14031iMA70¥2,360198808-198908

main55558-14031iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,360198908-199008

main55558-14031iMA70¥2,360199008-199305

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-14040iMA70¥2,260198808-198908

main55560-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,260198908-199008

main55560-14040iMA70¥2,260199008-199305

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-14060iMA70¥620198808-198908

main55561-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥620198908-199008

main55561-14060iMA70¥620199008-199305

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-14040iMA70¥440198808-198908

main55562-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥440198908-199008

main55562-14040iMA70¥440199008-199305

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14070-02iMA70198808-198908

MAROON,TRIM3#

main55606-14070-02iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

MAROON,TRIM3#

main55606-14070-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55606-14070-03iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

MEDIUM GRAY,TRIM1#

main55606-14070-04iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

DEEP BLUE,TRIM8#

main55606-14070-04iMA70..CND199008-199108

DEEP BLUE,TRIM8#

main55606-14070-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55606-14070-06iMA70..TWT198901-198908

BROWN,TRIM4#

main55606-14070-06iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

BROWN,TRIM4#

main55606-14070-06iMA70198808-198901

BROWN,TRIM4#

main55606-14070-12iMA70..CND199008-199108

DEEP RED,TRIM3#

main55606-14070-13iMA70..CND199008-199108

SHADOW GRAY,TRIM1#

main55606-14080-02iMA70..USA198908-199008

MAROON,TRIM3#

sub55606-14080¥10,700

main55606-14080-03iMA70..USA198908-199008

MEDIUM GRAY,TRIM1#

sub55606-14080¥10,700

main55606-14080-04iMA70..USA198908-199108

DEEP BLUE,TRIM8#

sub55606-14080¥10,700

main55606-14080-04iMA70199108-199305

DEEP BLUE,TRIM8#

sub55606-14080¥10,700

main55606-14080-06iMA70..USA198908-199108

BROWN,TRIM4#

sub55606-14080¥10,700

main55606-14080-12iMA70..USA199008-199108

DEEP RED,TRIM3#

sub55606-14080¥10,700

main55606-14080-12iMA70199108-199305

DEEP RED,TRIM3#

sub55606-14080¥10,700

main55606-14080-13iMA70..USA199008-199108

SHADOW GRAY,TRIM1#

sub55606-14080¥10,700

main55606-14080-13iMA70199108-199305

SHADOW GRAY,TRIM1#

sub55606-14080¥10,700

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14100-02iMA70198808-198908

MAROON,TRIM3#

main55607-14100-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

main55607-14100-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

main55607-14100-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

main55607-14100-04iMA70199008-199305

DEEP BLUE,TRIM8#

main55607-14100-04iMA70198808-198908

DEEP BLUE,TRIM8#

main55607-14100-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

main55607-14100-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

main55607-14100-06iMA70..USA199008-199108

BROWN,TRIM4#

main55607-14100-06iMA70198808-198908

BROWN,TRIM4#

main55607-14100-12iMA70199008-199305

DEEP RED,TRIM3#

main55607-14100-13iMA70199008-199305

SHADOW GRAY,TRIM1#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iMA70¥320198808-198908

main55647-22010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥320198908-199008

main55647-22010iMA70¥320199008-199305

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14120iMA70¥2,690198808-198908

main55650-14120iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,690198908-199008

main55650-14120iMA70¥2,690199008-199305

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14120iMA70¥4,780198808-198908

main55660-14120iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥4,780198908-199008

main55660-14120iMA70¥4,780199008-199305

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14080-02iMA70198808-198908

MAROON,TRIM3#

sub55670-14080¥4,210

main55670-14080-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

sub55670-14080¥4,210

main55670-14080-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

sub55670-14080¥4,210

main55670-14080-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

sub55670-14080¥4,210

main55670-14080-04iMA70198808-198908

DEEP BLUE,TRIM8#

sub55670-14080¥4,210

main55670-14080-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

sub55670-14080¥4,210

main55670-14080-04iMA70199008-199305

DEEP BLUE,TRIM8#

sub55670-14080¥4,210

main55670-14080-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

sub55670-14080¥4,210

main55670-14080-06iMA70..TWT198901-198908

BROWN,TRIM4#

sub55670-14080¥4,210

main55670-14080-06iMA70..USA199008-199108

BROWN,TRIM4#

sub55670-14080¥4,210

main55670-14080-06iMA70198808-198901

BROWN,TRIM4#

sub55670-14080¥4,210

main55670-14080-12iMA70199008-199305

DEEP RED,TRIM3#

sub55670-14080¥4,210

main55670-14080-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55670-14080¥4,210

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-04iMA70199008-199305

DEEP BLUE,TRIM8#

sub55680-14030¥1,870

main55680-14030-04iMA70198808-198908

DEEP BLUE,TRIM8#

sub55680-14030¥1,870

main55680-14030-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

sub55680-14030¥1,870

main55680-14030-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55680-14030¥1,870

main55680-14030-52iMA70199008-199305

DEEP RED,TRIM3#

sub55680-14030¥1,870

main55680-14030-B0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

sub55680-14030¥1,870

main55680-14030-B0iMA70198808-198908

MEDIUM GRAY,TRIM1#

sub55680-14030¥1,870

main55680-14030-D0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

sub55680-14030¥1,870

main55680-14030-D0iMA70198808-198908

MAROON,TRIM3#

sub55680-14030¥1,870

main55680-14030-E0iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

sub55680-14030¥1,870

main55680-14030-E0iMA70..USA199008-199108

BROWN,TRIM4#

sub55680-14030¥1,870

main55680-14030-E0iMA70..TWT198901-198908

BROWN,TRIM4#

sub55680-14030¥1,870

main55680-14030-E0iMA70198808-198901

BROWN,TRIM4#

sub55680-14030¥1,870

55685APLATE, AIR DAMPER CONTROL NAME, NO.4

main55685-14010iMA70¥180198808-198908

main55685-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥180198908-199008

main55685-14010iMA70¥180199008-199305

55691APLATE, AIR DAMPER CONTROL NAME, NO.1

main55691-14010iMA70¥180198808-198908

main55691-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥180198908-199008

main55691-14010iMA70¥180199008-199305

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14070-02iMA70198808-198908

MAROON,TRIM3#

sub55961-14070¥740

main55961-14070-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

sub55961-14070¥740

main55961-14070-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

sub55961-14070¥740

main55961-14070-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

sub55961-14070¥740

main55961-14070-04iMA70198808-198908

DEEP BLUE,TRIM8#

sub55961-14070¥740

main55961-14070-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

sub55961-14070¥740

main55961-14070-04iMA70199008-199305

DEEP BLUE,TRIM8#

sub55961-14070¥740

main55961-14070-06iMA70..USA199008-199108

BROWN,TRIM4#

sub55961-14070¥740

main55961-14070-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

sub55961-14070¥740

main55961-14070-06iMA70198808-198908

BROWN,TRIM4#

sub55961-14070¥740

main55961-14070-12iMA70199008-199305

DEEP RED,TRIM3#

sub55961-14070¥740

main55961-14070-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55961-14070¥740

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14050-02iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MAROON,TRIM3#

sub55962-14050¥740

main55962-14050-02iMA70198808-198908

MAROON,TRIM3#

sub55962-14050¥740

main55962-14050-03iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

MEDIUM GRAY,TRIM1#

sub55962-14050¥740

main55962-14050-03iMA70198808-198908

MEDIUM GRAY,TRIM1#

sub55962-14050¥740

main55962-14050-04iMA70198808-198908

DEEP BLUE,TRIM8#

sub55962-14050¥740

main55962-14050-04iMA70199008-199305

DEEP BLUE,TRIM8#

sub55962-14050¥740

main55962-14050-04iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

DEEP BLUE,TRIM8#

sub55962-14050¥740

main55962-14050-06iMA70..TWT198901-198908

BROWN,TRIM4#

sub55962-14050¥740

main55962-14050-06iMA70198808-198901

BROWN,TRIM4#

sub55962-14050¥740

main55962-14050-06iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

BROWN,TRIM4#

sub55962-14050¥740

main55962-14050-06iMA70..USA199008-199108

BROWN,TRIM4#

sub55962-14050¥740

main55962-14050-12iMA70199008-199305

DEEP RED,TRIM3#

sub55962-14050¥740

main55962-14050-13iMA70199008-199305

SHADOW GRAY,TRIM1#

sub55962-14050¥740

9011906106

main90119-06106¥70

9011906251

main90119-06251¥160

9017906009

main90179-06009¥120

9017906097

main90179-06097¥320

9017908025

main90179-08025¥80

9018305103

main90183-05103¥90

904670703001

main90467-0703001

9046714009

main90467-14009¥90

9046805047

main90468-05047¥90

9165540616

main91655-40616¥120

9165540820

main91655-40820¥140

9352054010

main93520-54010¥110

9356755016

main93567-55016¥110

9356755020

main93567-55020¥70

9418040400

main94180-40400¥160

55 parts on this diagram · 1 diagram in section
