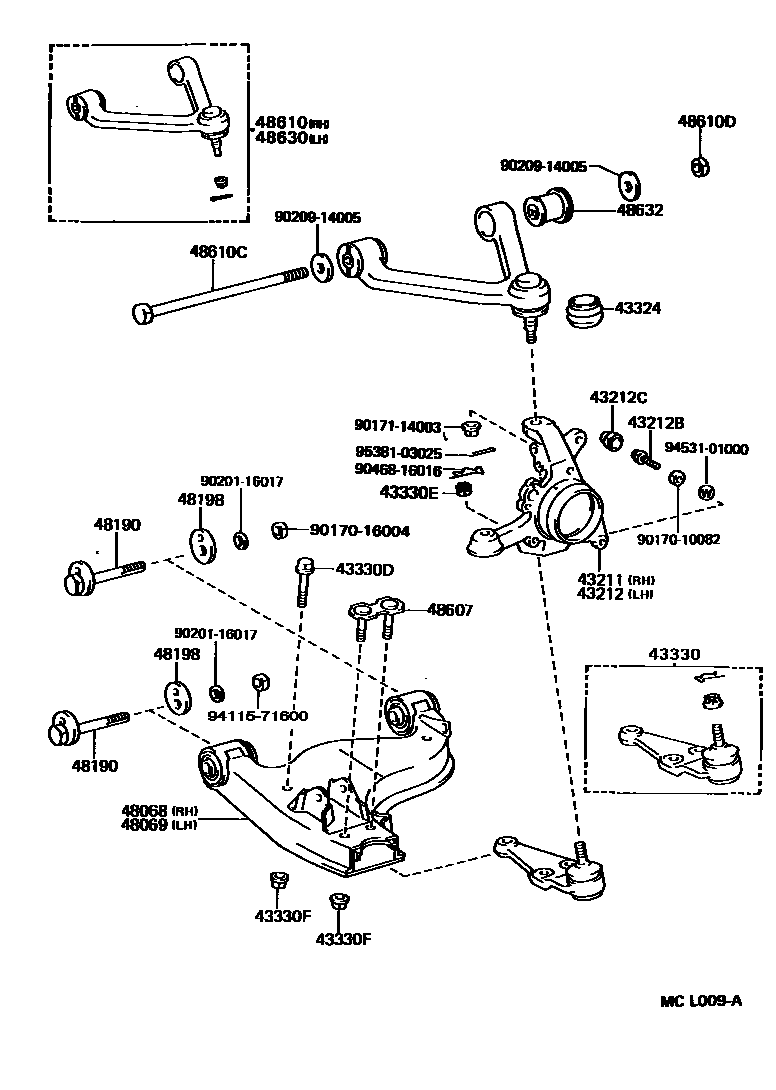

Toyota SUPRA — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
W(*66)
main43211-14052iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥16,500198811-199305
W(*66)
main43211-14062iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥16,500198811-199305
43212KNUCKLE, STEERING, LH
W(*66)
W(*66)
main43212-14032iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥16,500198811-199305
43212BBOLT (FOR FRONT KNUCKLE STOPPER)
43212CCOVER, FRONT KNUCKLE STOPPER
43324COVER, UPPER JOINT DUST
43330JOINT ASSY, LOWER BALL, FRONT
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
W(POWER STEERING)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-14051iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥19,700198808-199008
W(POWER STEERING)
48190CAM ASSY, CAMBER ADJUST
RR
main48190-14030iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,070198808-199305
FR
48198CAM, CAMBER ADJUST, NO.2
RR
FR
48607PLATE SUB-ASSY, LOWER ARM ATTACHMENT
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610CBOLT(FOR SUSPENSION UPPER ARM)
48610DNUT(FOR SUSPENSION UPPER ARM)
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48632BUSH, UPPER ARM
9017010082
9017016004
main90170-16004
9017114003
9020116017
9020914005
9046816016
9411571600
9453101000
9538103025
28 parts on this diagram · 1 diagram in section
