Toyota SUPRA — FLOOR SIDE MEMBER

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-24010iMA70¥6,000198808-198908

main51204-24010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥6,000198908-199008

main51204-24010iMA70¥6,000199008-199305

51681BRACKET, FLEXIBLE HOSE

main51681-14010iMA70¥620198808-198908

main51681-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥620198908-199008

main51681-14010iMA70¥620199008-199305

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-14010iMA70¥16,100198808-198908

main57043-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥16,100198908-199008

main57043-14010iMA70¥16,100199008-199305

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-14010iMA70¥16,100198808-198908

main57044-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥16,100198908-199008

main57044-14010iMA70¥16,100199008-199305

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14040iMA70¥9,900198808-198908

main57071-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥9,900198908-199008

main57071-14040iMA70¥9,900199008-199305

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14040iMA70¥9,900198808-198908

main57072-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥9,900198908-199008

main57072-14040iMA70¥9,900199008-199305

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14901iMA70¥33,300198808-198908

main57101-14901iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥33,300198908-199008

main57101-14901iMA70¥33,300199008-199305

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14901iMA70¥33,700198808-198908

sub57102-14906¥42,700

main57102-14901iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥33,700198908-199008

sub57102-14906¥42,700

main57102-14906iMA70¥42,700199008-199305

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-14020iMA70¥3,400198808-198908

main57105-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥3,400198908-199008

main57105-14020iMA70¥3,400199008-199305

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-14010iMA70¥3,400198808-198908

main57106-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥3,400198908-199008

main57106-14010iMA70¥3,400199008-199305

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-14310iMA70..5F..TWC..USA¥4,310198808-198901

CALIFORNIA SPEC

main57209-14311iMA70..5F..TWC..USA¥7,400198901-199305

CALIFORNIA SPEC

main57209-14320iMA70..4FC..USA;MA70..5F..TWT..USA¥5,400198808-198901

CALIFORNIA SPEC

main57209-14321iMA70..5F..TWT..USA¥7,400198901-199305

CALIFORNIA SPEC

main57209-24030iMA70..5F..TWC¥7,700198808-198901

main57209-24031iMA70..5F..TWC¥7,500198901-199305

main57209-24040iMA70..4FC;MA70..5F..TWT¥7,700198808-198901

main57209-24041iMA70..5F..TWT¥7,500198901-198908

main57209-24041iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥7,500198908-199008

main57209-24041iMA70..5F..TWT¥7,500199008-199305

main57209-24050iMA70..4FC¥7,500198901-199305

main57209-24060iMA70..4FC..USA¥7,500198901-199305

CALIFORNIA SPEC

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,850198908-199008

RH

main57257-14060iMA70¥1,850199008-199305

RH

main57257-14060iMA70¥1,850198808-198908

RH

main57258-14060iMA70¥1,850198808-198908

LH

main57258-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,850198908-199008

LH

main57258-14060iMA70¥1,850199008-199305

LH

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14230iMA70..LB¥22,000198808-198908

main57401-14230iMA70..LB..TWC;MA70..LB..TWT..USA¥22,000198908-199008

main57401-14230iMA70..LB¥22,000199008-199305

main57401-14240iMA70..SPR¥28,000198808-199305

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14210iMA70..LB¥22,000199008-199305

main57402-14210iMA70..LB¥22,000198808-198908

main57402-14210iMA70..LB..TWC;MA70..LB..TWT..USA¥22,000198908-199008

main57402-14220iMA70..SPR¥28,000198808-199305

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-14070iMA70¥6,500198808-198908

main57405-14070iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥6,500198908-199008

main57405-14070iMA70¥6,500199008-199305

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-14020iMA70¥14,400198808-198908

main57407-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥14,400198908-199008

main57407-14020iMA70¥14,400199008-199305

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-14060iMA70¥6,300198808-198908

main57417-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥6,300198908-199008

main57417-14060iMA70¥6,300199008-199305

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-14060iMA70¥6,300198808-198908

main57418-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥6,300198908-199008

main57418-14060iMA70¥6,300199008-199305

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57426-14030iMA70¥1,570198808-198908

main57426-14030iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,570198908-199008

main57426-14030iMA70¥1,570199008-199305

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14030iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,570198908-199008

main57426-14030iMA70¥1,570198808-198908

main57426-14030iMA70¥1,570199008-199305

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14060iMA70¥10,900198808-198908

main57435-14060iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥10,900198908-199008

main57435-14060iMA70¥10,900199008-199305

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14050iMA70¥10,900198808-198908

main57436-14050iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥10,900198908-199008

main57436-14050iMA70¥10,900199008-199305

57451MEMBER, FRONT FLOOR CROSS

main57451-14040iMA70¥6,700198808-198908

main57451-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥6,700198908-199008

main57451-14040iMA70¥6,700199008-199305

57463MEMBER, CENTER FLOOR CROSS, NO.3

main57463-14050iMA70¥12,800198808-198908

main57463-14050iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥12,800198908-199008

main57463-14050iMA70¥12,800199008-199305

57464STRENGTH, CENTER FLOOR CROSSMEMBER

main57464-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥5,200198908-199008

main57464-14020iMA70¥5,200198808-198908

main57464-14020iMA70¥5,200199008-199305

57475PLATE, FRONT FLOOR CROSSMEMBER

main58103-14010iMA70¥1,430198808-198908

RH

main58103-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,430198908-199008

RH

main58103-14010iMA70¥1,430199008-199305

RH

main58104-14010iMA70¥2,020198808-198908

LH

main58104-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,020198908-199008

LH

main58104-14010iMA70¥2,020199008-199305

LH

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥1,410198908-199008

main57523-14010iMA70¥1,410198808-198908

main57523-14010iMA70¥1,410199008-199305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14150iMA70¥18,600198808-198908

main57601-14150iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥18,600198908-199008

main57601-14150iMA70¥18,600199008-199305

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14140iMA70¥18,600198808-198908

main57602-14140iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥18,600198908-199008

main57602-14140iMA70¥18,600199008-199305

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-14030iMA70¥4,680198808-198908

main57631-14030iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥4,680198908-199008

main57631-14030iMA70¥4,680199008-199305

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-14040iMA70¥4,680198808-198908

main57632-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥4,680198908-199008

main57632-14040iMA70¥4,680199008-199305

57648GUSSET, QUARTER WHEEL HOUSE, NO.1 RH

main57648-14010iMA70¥2,360198808-198908

main57648-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,360198908-199008

main57648-14010iMA70¥2,360199008-199305

57649GUSSET, QUARTER WHEEL HOUSE, NO.1 LH

main57649-14010iMA70¥2,360198808-198908

main57649-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,360198908-199008

main57649-14010iMA70¥2,360199008-199305

57737REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH

main57737-14020iMA70¥5,100198808-198908

main57737-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥5,100198908-199008

main57737-14020iMA70¥5,100199008-199305

57747REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH

main57747-14020iMA70¥5,100198808-198908

main57747-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥5,100198908-199008

main57747-14020iMA70¥5,100199008-199305

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-14040iMA70¥2,600198808-198908

RH

main57805-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,600198908-199008

RH

main57805-14040iMA70¥2,600199008-199305

RH

main57806-14040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,600198908-199008

LH

main57806-14040iMA70¥2,600198808-198908

LH

main57806-14040iMA70¥2,600199008-199305

LH

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-14010iMA70¥470198808-198908

main58149-14010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥470198908-199008

main58149-14010iMA70¥470199008-199305

58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

main58272-14020iMA70¥520198808-198908

main58272-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥520198908-199008

main58272-14020iMA70¥520199008-199305

58273BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.5

main58273-14080iMA70¥520198808-198908

main58273-14080iMA70¥520199008-199305

main58273-14080iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥520198908-199008

9011908177

main90119-08177¥140

9017908068

main90179-08068¥100

9033335002

main90333-35002¥80

9095001006

main90950-01006¥260

9095001007

main90950-01007¥250

9095001056

main90950-01056¥230

9095001148

main90950-01148¥120

9095001247

main90950-01247¥170

9095001259

main90950-01259¥120

9095001269

main90950-01269¥170

9095001356

main90950-01356¥120

9095001398

main90950-01398¥100

9095001514

main90950-01514¥190

9095001528

main90950-01528¥300

9095001529

main90950-01529¥410

9095001668

main90950-01668¥120

9095006042

main90950-06042¥190

9165561020

main91655-61020¥190

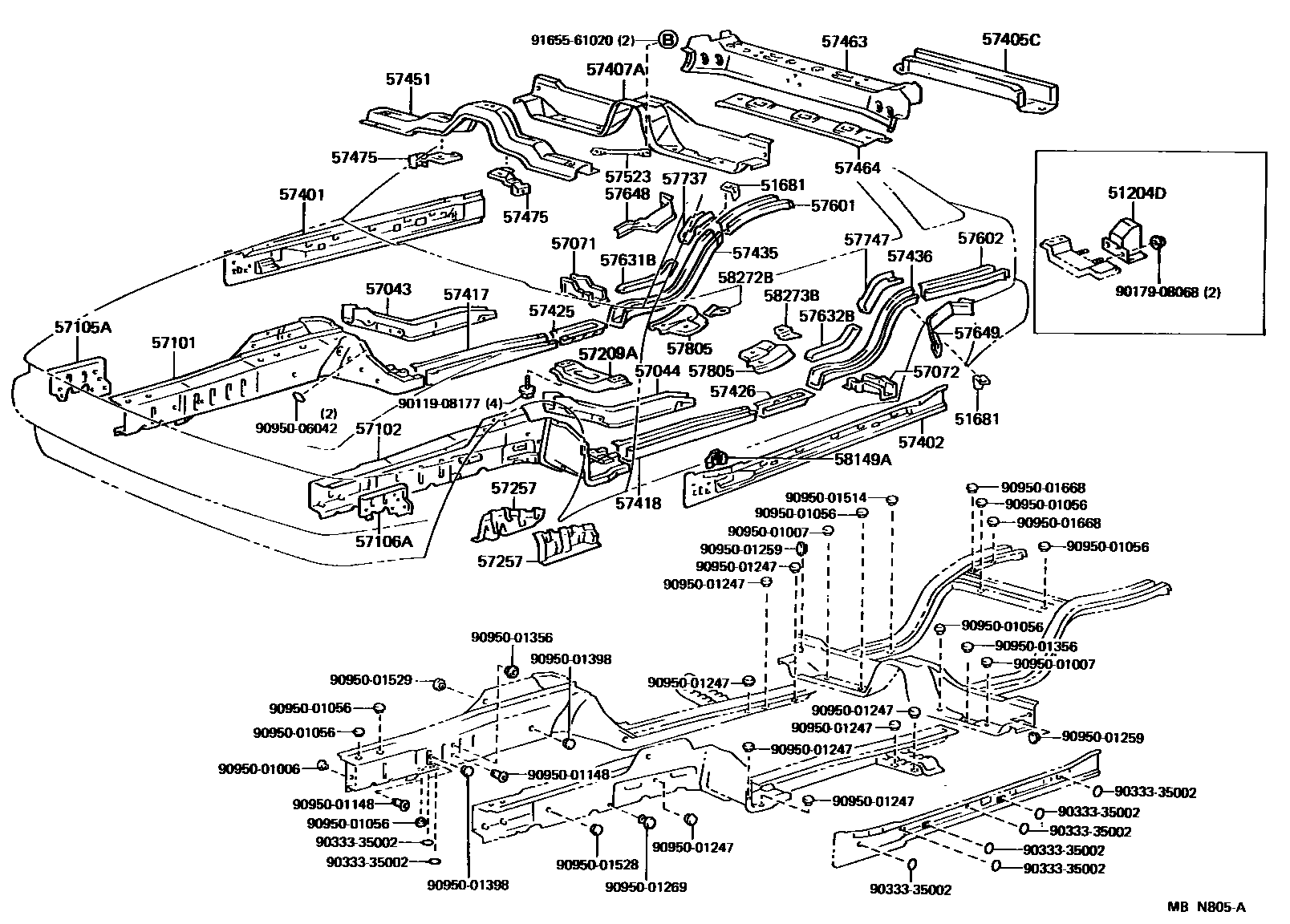

57 parts on this diagram · 1 diagram in section
