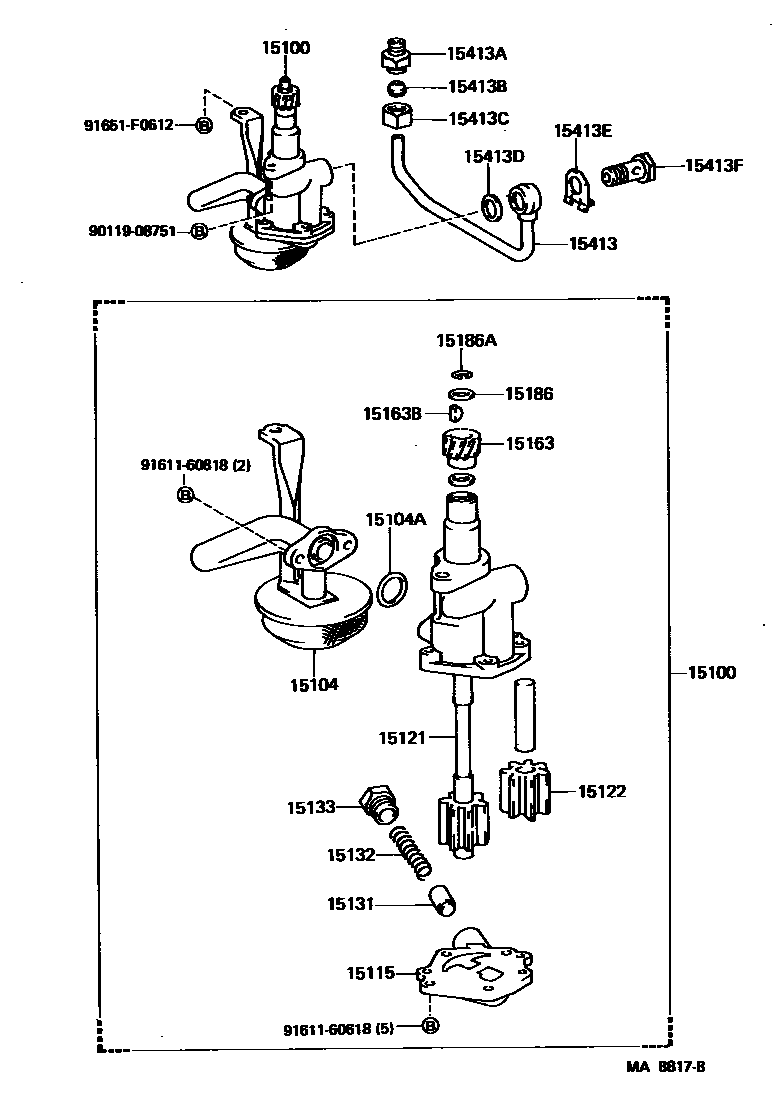

Toyota SUPRA — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-42020i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥28,000198908-199007

sub15100-42021¥29,600

main15100-42020i7MGTE..MA70¥28,000198808-198908

sub15100-42021¥29,600

main15100-42021i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥29,600199007-199008

main15100-42021i7MGTE..MA70¥29,600199008-199305

main15100-42030i7MGE..MA70¥28,000198808-199007

sub15100-42031¥27,800

main15100-42031i7MGE..MA70¥27,800199007-199305

15104STRAINER SUB-ASSY, OIL

main15104-42021i7MG#..MA70¥4,510199008-199305

main15104-42021i7MG#..MA70¥4,510198808-198908

main15104-42021i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥4,510198908-199008

15104ARING, O(FOR OIL STRAINER)

main96721-19025i7MG#..MA70¥250198808-198908

main96721-19025i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥250198908-199008

main96721-19025i7MG#..MA70¥250199008-199305

15115COVER, OIL PUMP

main15115-42020i7MGTE..MA70¥6,600198808-198908

main15115-42020i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥6,600198908-199008

main15115-42020i7MGTE..MA70¥6,600199008-199305

main15115-42030i7MGE..MA70¥6,600198808-199305

15121GEAR, OIL PUMP DRIVE

main15102-42020i7MGTE..MA70¥6,300198808-198908

main15102-42020i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥6,300198908-199008

main15102-42020i7MGTE..MA70¥6,300199008-199305

main15102-42030i7MGE..MA70¥6,300198808-199305

15122GEAR, OIL PUMP DRIVEN

main15122-41040i7MGE..MA70¥8,600198808-199305

main15122-42010i7MGTE..MA70¥4,160198808-198908

main15122-42010i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥4,160198908-199008

main15122-42010i7MGTE..MA70¥4,160199008-199305

15131VALVE, OIL PUMP RELIEF

main15131-24010i7MG#..MA70¥340199008-199305

main15131-24010i7MG#..MA70¥340198808-198908

main15131-24010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥340198908-199008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46010i7MG#..MA70¥370198808-198908

main15132-46010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥370198908-199008

main15132-46010i7MG#..MA70¥370199008-199305

15133PLUG, OIL PUMP RELIEF VALVE

main15133-24010i7MG#..MA70¥430198808-198908

main15133-24010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥430198908-199008

main15133-24010i7MG#..MA70¥430199008-199305

15163GEAR, OIL PUMP DRIVE SHAFT

main15128-42010i7MG#..MA70¥3,740198808-198908

main15128-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥3,740198908-199008

main15128-42010i7MG#..MA70¥3,740199008-199305

15163BKEY, WOODRUFF(FOR OIL PUMP DRIVE SHAFT GEAR)

main90280-03005i7MG#..MA70¥120198808-198908

main90280-03005i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥120198908-199008

main90280-03005i7MG#..MA70¥120199008-199305

15186SPACER(FOR OIL PUMP DRIVE SHAFT GEAR)

main15186-41010i7MG#..MA70¥260198808-198908

main15186-41010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥260198908-199008

main15186-41010i7MG#..MA70¥260199008-199305

15186ARING, SHAFT SNAP(FOR OIL PUMP DRIVE SHAFT GEAR)

main90520-11031i7MG#..MA70¥140198808-198908

main90520-11031i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥140198908-199008

main90520-11031i7MG#..MA70¥140199008-199305

15413PIPE, OIL PUMP OUTLET

main15403-42010i7MG#..MA70¥2,930198808-198908

main15403-42010i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥2,930198908-199008

main15403-42010i7MG#..MA70¥2,930199008-199305

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-20013i7MG#..MA70¥550198808-198908

main90404-20013i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥550198908-199008

main90404-20013i7MG#..MA70¥550199008-199305

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-14004i7MG#..MA70¥190198808-198908

main90410-14004i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥190198908-199008

main90410-14004i7MG#..MA70¥190199008-199305

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90170-20006i7MG#..MA70¥250198808-198908

main90170-20006i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥250198908-199008

main90170-20006i7MG#..MA70¥250199008-199305

15413DGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012i7MG#..MA70¥140198808-198908

main90430-18012i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥140198908-199008

main90430-18012i7MG#..MA70¥140199008-199305

15413EWASHER, LOCK(FOR OIL PUMP OUTLET PIPE)

main15454-41011i7MG#..MA70¥350198808-198908

main15454-41011i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥350198908-199008

main15454-41011i7MG#..MA70¥350199008-199305

15413FBOLT, UNION(FOR OIL PUMP OUTLET PIPE)

main90401-18014i7MG#..MA70¥610198808-198908

main90401-18014i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥610198908-199008

main90401-18014i7MG#..MA70¥610199008-199305

9011908751

main90119-08751¥140

9161160618

main91611-60618¥120

9161160818

main91611-60818¥140

91651F0612

main91651-F0612¥120

24 parts on this diagram · 1 diagram in section
