Toyota SUPRA — CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83391BSWITCH, AUTO DRIVE VACUUM

main83391-14090iMA70..TWT¥4,730198808-199008

main83391-32050iMA70..TWT¥4,680199008-199305

88200BHOSE, CRUISE CONTROL VACUUM

main88283-14030iMA70..TWT¥1,190198808-199305

NO.1

main88283-14040iMA70..TWC¥1,060198808-199305

main90999-92002iMA70..TWT¥460198808-199305

L=300,NO.2

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-14121iMA70..TWT¥53,900198808-199008

sub88200-14180¥53,500

main88200-14131iMA70..TWC¥57,200198808-199008

sub88200-14190¥56,600

main88200-14180iMA70..TWT¥53,500199008-199305

main88200-14190iMA70..TWC¥56,600199008-199305

88250APUMP ASSY, CRUISE CONTROL

main88251-14121iMA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥34,800198808-199008

sub88251-14130¥34,500

main88251-14130iMA70..TWT¥34,500199008-199305

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88292-14020iMA70..TWT¥2,370198808-199008

sub88292-14030¥2,350

9010906200

main90109-06200

9010906211

main90109-06211¥240

9011906241

main90119-06241¥120

9011906330

main90119-06330¥80

9011906536

main90119-06536¥150

9017910100

main90179-10100¥170

9020505002

main90205-05002¥110

9046400079

main90464-00079¥390

9046400298

main90464-00298¥190

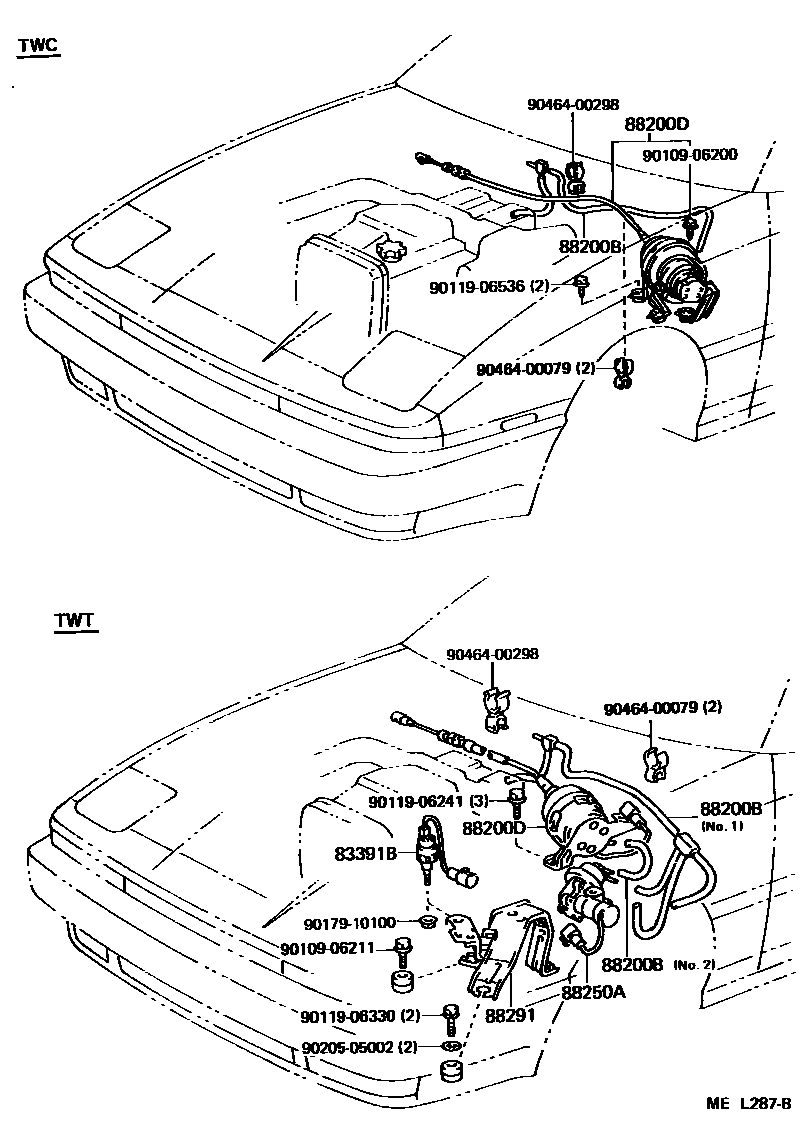

14 parts on this diagram · 2 diagrams in section
