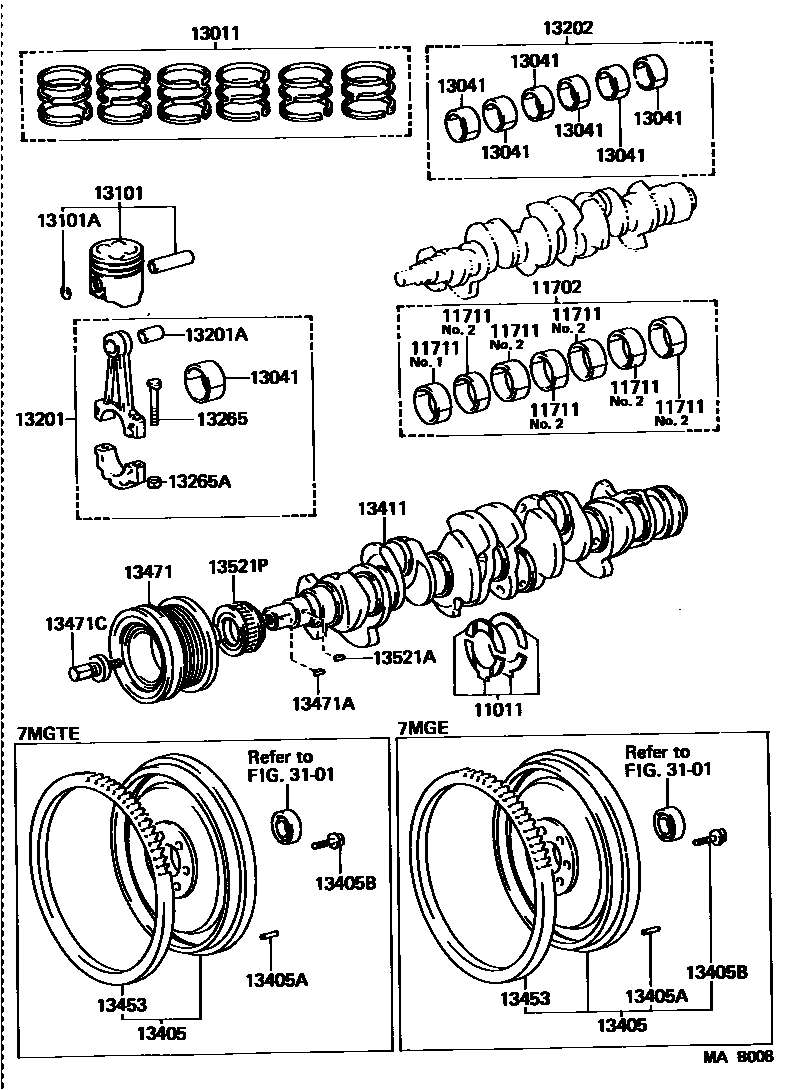

Toyota SUPRA — CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-43010i7MG#..MA70¥2,030198808-199305

STD

main11012-43010i7MG#..MA70¥2,490198808-199305

O/S 0.125

11702BEARING SET, CRANKSHAFT

main11704-43010i7MG#..MA70¥22,400198808-199305

U/S 0.25

11711BEARING, CRANKSHAFT

main11071-43010-01i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 1,NO.1

main11071-43010-02i7MG#..MA70198808-199305

MARK 2,NO.1

main11071-43010-03i7MG#..MA70198808-199305

MARK 3,NO.1

main11071-43010-04i7MG#..MA70198808-199305

MARK 4,NO.1

main11071-43010-05i7MG#..MA70198808-199305

MARK 5,NO.1

main11701-43010-01i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 1,NO.2

main11701-43010-02i7MG#..MA70198808-199305

MARK 2,NO.2

main11701-43010-03i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 3,NO.2

main11701-43010-04i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 4,NO.2

main11701-43010-05i7MG#..MA70198808-199305

MARK 5,NO.2

13011RING SET, PISTON

main13011-42010i7MGTE..MA70¥20,200198808-199302

STD

sub13011-42011¥20,200

main13011-42011i7MGTE..MA70¥20,200199008-199305

STD

main13011-42040i7MGE..MA70¥20,300198808-199010

STD

sub13011-42060¥19,500

main13011-42060i7MGE..MA70¥19,500199010-199305

STD

main13013-42011i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥20,200198808-199302

O/S 0.50

sub13013-42012¥20,200

main13013-42012i7MGTE..MA70¥20,200199302-199305

O/S 0.50

main13013-42040i7MGE..MA70¥20,300198808-199010

O/S 0.50

sub13013-42060¥20,100

main13013-42060i7MGE..MA70¥20,100199010-199305

O/S 0.50

13041BEARING, CONNECTING ROD

main13041-42010-01i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 1

main13041-42010-02i7MG#..MA70198808-199305

MARK 2

main13041-42010-03i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 3

main13041-42010-04i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 4

main13041-42010-05i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

MARK 5

13101PISTON SUB-ASSY, W/PIN

main13101-42070-00i7MGE..MA70198808-199305

STD,MARK 0

sub13101-42070¥7,100

main13101-42070-01i7MGE..MA70198808-199305

STD,MARK 1

sub13101-42070¥7,100

main13101-42070-02i7MGE..MA70198808-199305

STD,MARK 2

sub13101-42070¥7,100

main13101-42070-03i7MGE..MA70198808-199305

STD,MARK 3

sub13101-42070¥7,100

main13101-42070-04i7MGE..MA70198808-199305

STD,MARK 4

sub13101-42070¥7,100

main13101-42080-00i7MGTE..MA70198808-199305

STD,MARK 0

sub13101-42080¥7,100

main13101-42080-01i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305

STD,MARK 1

sub13101-42080¥7,100

main13101-42080-02i7MGTE..MA70198808-199305

STD,MARK 2

sub13101-42080¥7,100

main13101-42080-03i7MGTE..MA70198808-199305

STD,MARK 3

sub13101-42080¥7,100

main13101-42080-04i7MGTE..MA70198808-199305

STD,MARK 4

sub13101-42080¥7,100

main13103-42070i7MGE..MA70¥7,100198808-199305

O/S 0.50

main13103-42080i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥7,100198808-199305

O/S 0.50

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25001i7MG#..MA70¥170198808-199305

13201ROD SUB-ASSY, CONNECTING

main13201-49045i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥16,000198808-199305

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73066i7MG#..MA70¥550198808-199305

13202BEARING SET, CONNECTING ROD

main13204-42010i7MG#..MA70¥12,000198808-199305

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-42010i7MG#..MA70¥520198808-199305

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-10090i7MG#..MA70¥170198808-199305

13405FLYWHEEL SUB-ASSY

main13405-42010i7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥30,500198808-199305

main13405-49175i7MGE..MA70..5F¥30,500198808-199305

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i7MGE..MA70..5F;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥120198808-199305

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10042i7MG#..MA70..5F¥110198808-199305

13411CRANKSHAFT

main13411-42030i7MG#..MA70¥130,000198808-198908

main13411-42040i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥140,000198908-199305

13453GEAR, FLYWHEEL RING

main13453-20010i7MG#..MA70..5F¥5,200198808-199305

13471PULLEY, CRANKSHAFT

main13407-42030i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA¥33,300198808-199305

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05003i7MG#..MA70¥190198808-199305

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-18003i7MG#..MA70¥790198808-199305

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05003i7MG#..MA70¥190198808-199305

13521PPULLEY, CRANKSHAFT TIMING

main13521-42020i7MG#..MA70¥7,400198808-199305

3101

23 parts on this diagram · 1 diagram in section
