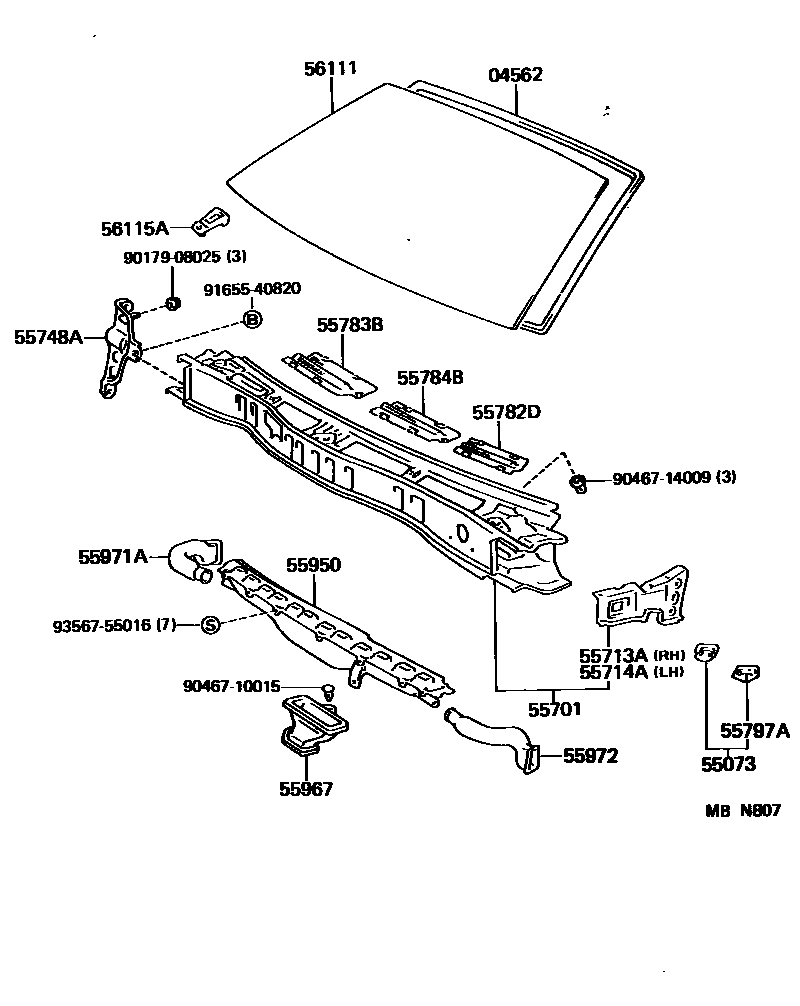

Toyota SUPRA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,390198808-199305

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iMA70¥740198808-199305

55701PANEL SUB-ASSY, COWL

main55700-14780iMA70¥42,500198808-199305

55713APANEL, COWL TOP SIDE, RH

main55713-14100iMA70¥3,030198808-199305

55714APANEL, COWL TOP SIDE, LH

main55714-14100iMA70¥3,030198808-199305

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-14050iMA70¥2,840198808-199305

55782DLOUVER, COWL TOP VENTILATOR, LH

main55781-14160iMA70198808-199305

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14120iMA70¥3,680198808-199305

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14120iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥3,680198808-199305

55797ASEAL, COWL WATER EXTRACT

main55797-20030iMA70¥260198808-199305

55950NOZZLE ASSY, DEFROSTER

main55951-14181iMA70¥4,140198808-199305

55967NOZZLE, DEFROSTER, LOWER

main55967-14020iMA70¥1,400198808-199305

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14040iMA70¥1,190198808-199305

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14050iMA70¥1,190198808-199305

56111GLASS, WINDSHIELD

main56111-14451iMA70¥84,000198808-199305

*TL,T=5.3

main56111-14481iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

*TL,T=5.3,BRONZE,BRONZE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-14010iMA70¥610198808-199305

9017908025

main90179-08025¥80

9046710015

main90467-10015¥120

9046714009

main90467-14009¥90

9165540820

main91655-40820¥140

9356755016

main93567-55016¥110

21 parts on this diagram · 1 diagram in section
