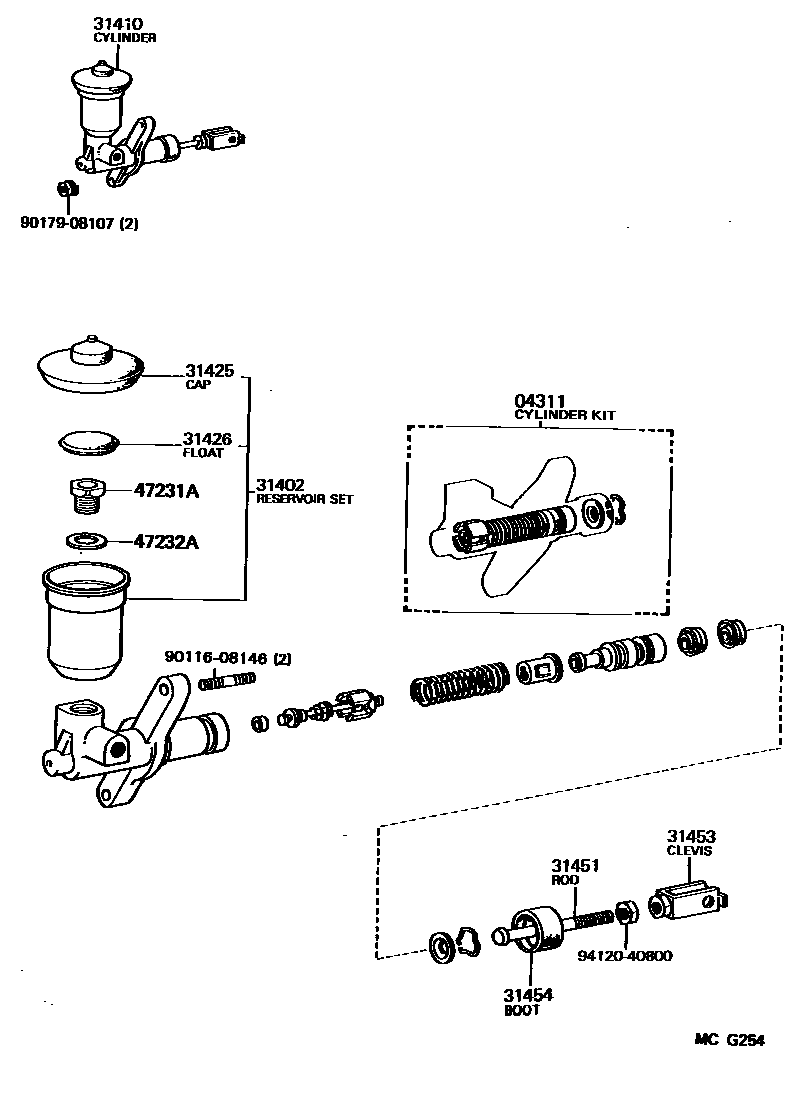

Toyota SUPRA — CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iMA70..5F¥2,130199008-199203

sub04311-12080¥2,130

main04311-12080iMA70..5F¥2,130199203-199305

main04311-22050iMA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥2,290198808-199008

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-14010iMA70..5F¥15,000198808-199008

main31402-14040iMA70..5F¥1,970199008-199305

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14192iMA70..5F¥12,700198808-198811

sub31410-14193¥93,000

main31410-14193iMA70..5F¥93,000198811-199008

main31410-14290iMA70..5F¥12,600199008-199305

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iMA70..5F¥640198808-199305

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iMA70..5F¥220198808-199305

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iMA70..5F¥8,000198808-199008

main31451-35080iMA70..5F¥670199008-199305

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14010iMA70..5F¥3,340198808-198809

sub31404-14011¥15,000

main31404-14011iMA70..5F¥15,000198809-199008

main31404-14030iMA70..5F¥3,330199008-199305

sub31404-22020¥3,330

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iMA70..5F¥380198808-199305

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iMA70..5F¥280198808-199008

47232AWASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT

main47232-30010iMA70..5F¥220198808-199008

9011608146

main90116-08146¥160

9017908107

main90179-08107¥100

9412040800

main94120-40800¥90

13 parts on this diagram · 2 diagrams in section
