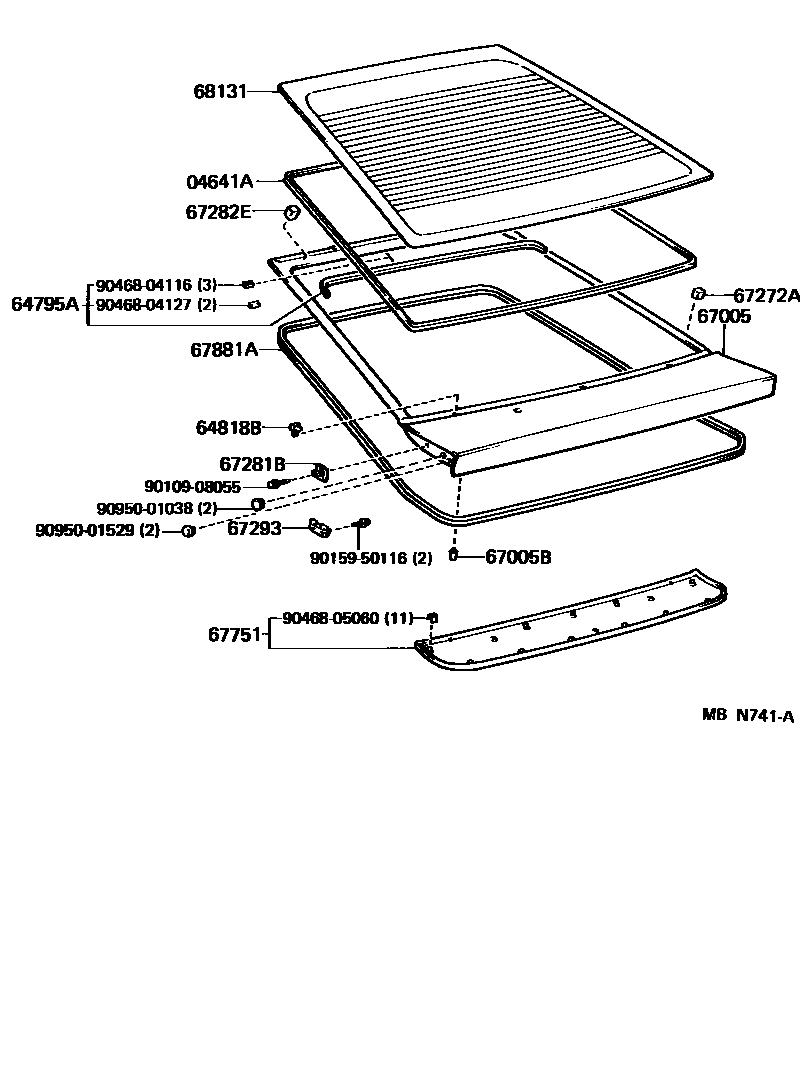

Toyota SUPRA — BACK DOOR PANEL & GLASS
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
64795ATRIM, BACK WINDOW OPENING
main64795-14020iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA¥3,030198808-199305
64818BSPACER, BACK DOOR GLASS, NO.1
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67272ACUSHION, BACK DOOR STOPPER, NO.2
67281BSTOPPER, BACK DOOR, LOWER
67282ECUSHION, BACK DOOR STOPPER, NO.3
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
BROWN,TRIM4#
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DEEP BLUE,TRIM8#
BROWN,TRIM4#
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=4.0
*EHTT,T=4.0,BRONZE,BRONZE
9010908055
9015950116
9046804116
9046804127
9046805060
9095001038
9095001529
19 parts on this diagram · 1 diagram in section
