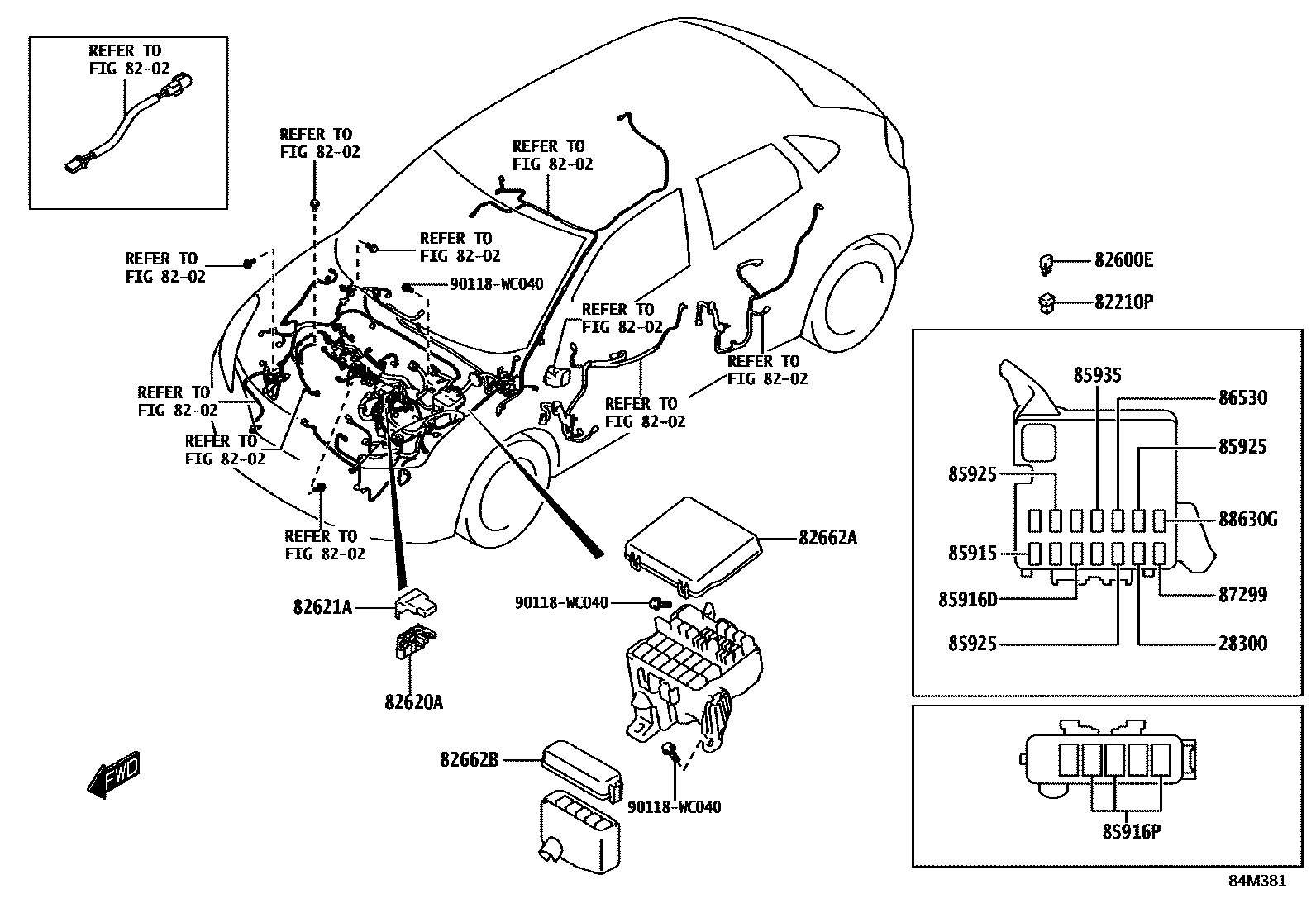

Toyota STARLET — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1W/O(PUSH START SWITCH) 0021 1W(PUSH START SWITCH) 0022 1W(REAR DRUM BRAKE) 0023 1W(REAR DISC BRAKE) 0024 1

28300RELAY ASSY, STARTER

main90118-WC485

main90118-WC486

8202

82210PENGINE ROOM FUSIBLE LINK

82600EENGINE ROOM FUSE

82620ABLOCK ASSY, FUSIBLE LINK

82621ACOVER, FUSIBLE LINK

82662ACOVER, RELAY BLOCK, UPPER, NO.1

82662BCOVER, RELAY BLOCK, UPPER, NO.2

85915RELAY, MAIN

main90118-WC485

main90118-WC486

85916DRELAY, FOG LAMP

85916PRELAY, HEADLAMP

85925RELAY, RADIATOR FAN

main90118-WC485

85935RELAY, FUEL PUMP

main90118-WC485

main90118-WC486

86530RELAY ASSY, HORN

main90118-WC485

main90118-WC486

87299RELAY, HEATER

main90118-WC485

88630GRELAY ASSY, COOLER

90118WC040

main90118-WC040

17 parts on this diagram · 24 diagrams in section
