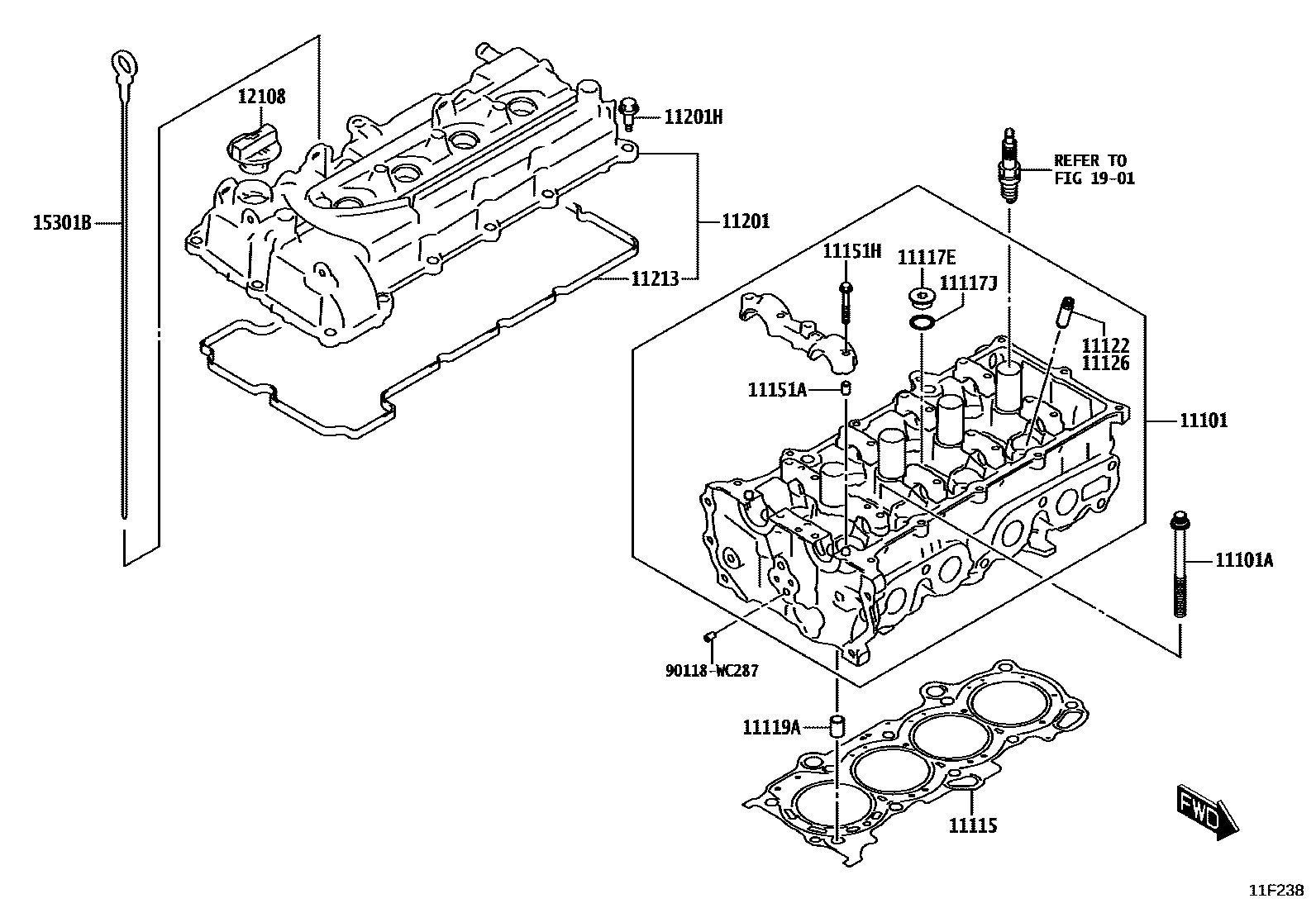

Toyota STARLET — CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-WC001

main90118-WC288

11101ABOLT(FOR CYLINDER HEAD SET)

11115GASKET, CYLINDER HEAD

main11115-WC002

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

11119APIN, STRAIGHT, NO.1

11122BUSH, INTAKE VALVE GUIDE

main11122-WC002

11126BUSH, EXHAUST VALVE GUIDE

main11122-WC002

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-WC002

main90118-WC292

11201HBOLT(FOR CYLINDER HEAD COVER)

11213GASKET, CYLINDER HEAD COVER

main11213-WC002

12108CAP SUB-ASSY, OIL FILLER

main12180-WC002

15301BGAGE SUB-ASSY, OIL LEVEL

1901

90118WC287

main90118-WC287

17 parts on this diagram · 2 diagrams in section
