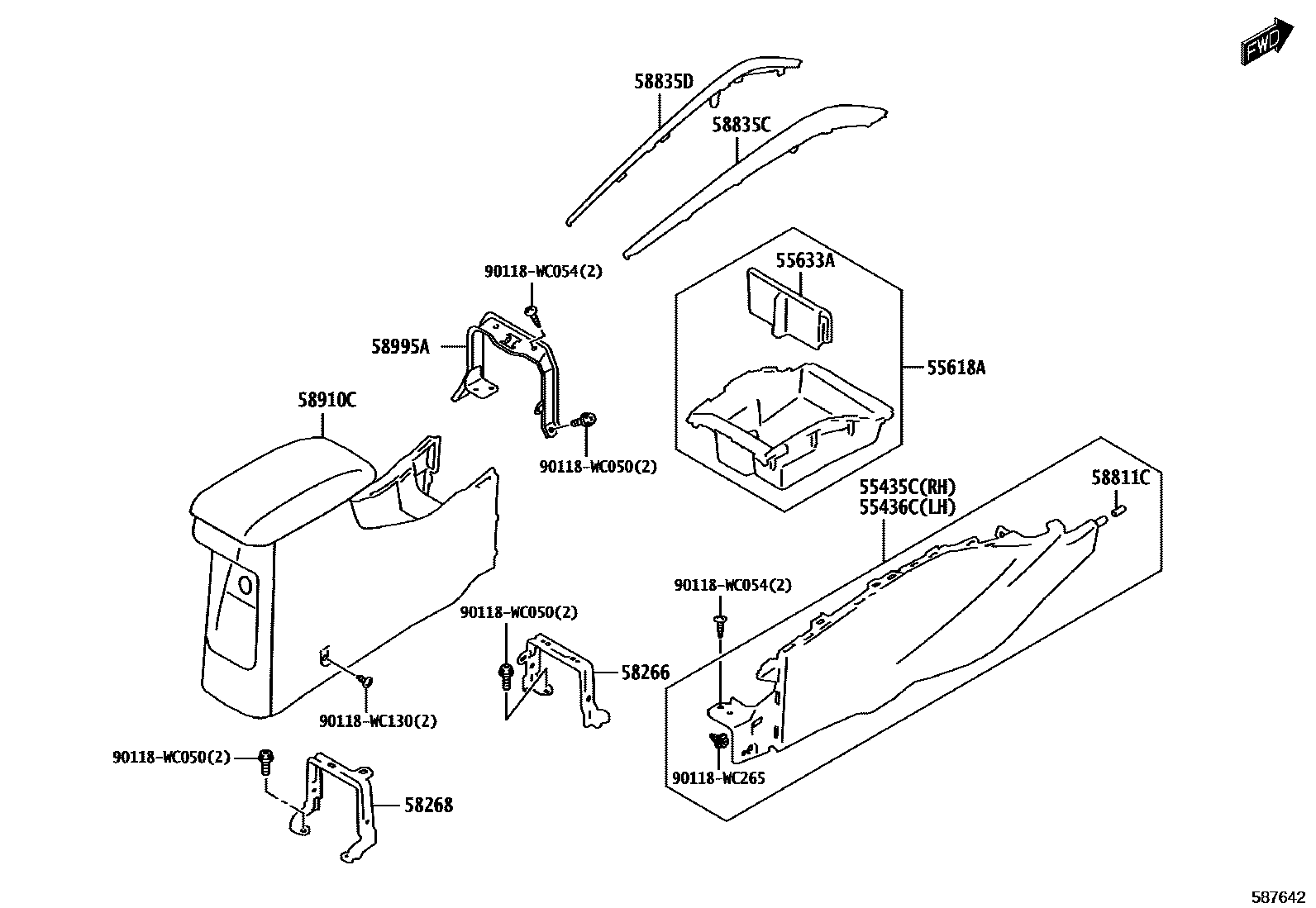

Toyota STARLET — CONSOLE BOX & BRACKET

0001 1W(CONSOLE ARMREST) 0002 1W/O(CONSOLE ARMREST) 0003 1 0004 1 0005 1 0006 1

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

55618AHOLDER, CONSOLE BOX CUP

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58996-WC001

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58997-WC001

58811CCAP(FOR CONSOLE)

58835CORNAMENT, CONSOLE BOX

58835DORNAMENT, CONSOLE BOX, NO.2

58910CBOX ASSY, CONSOLE, REAR

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

90118WC050

main90118-WC050

90118WC054

main90118-WC054

90118WC130

main90118-WC130

90118WC265

main90118-WC265

15 parts on this diagram · 6 diagrams in section
