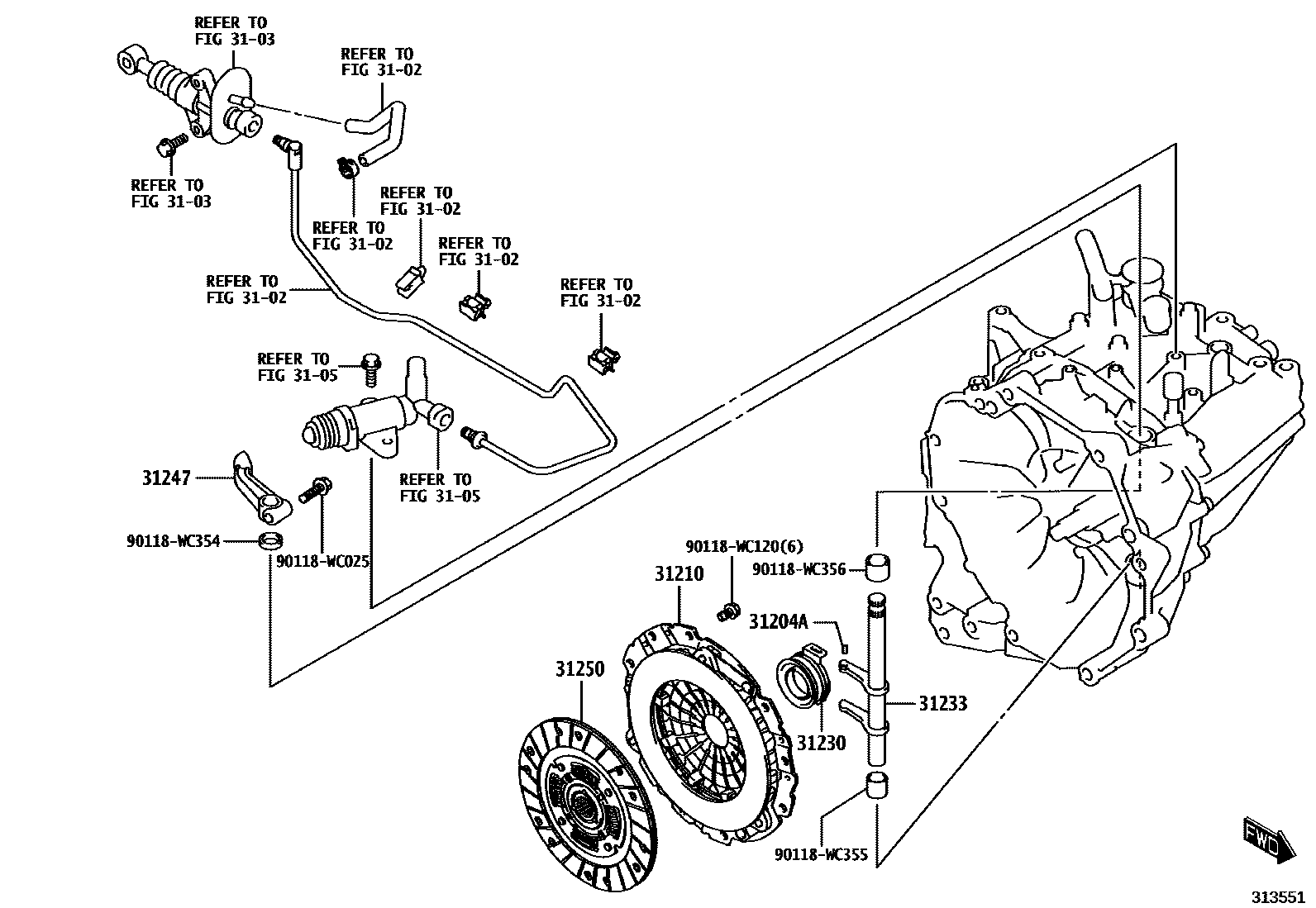

Toyota STARLET — CLUTCH & RELEASE FORK

0001 1 0002 1

3102

3103

3105

31204APIN(FOR CLUTCH RELEASE FORK)

31210COVER ASSY, CLUTCH

main31210-WC002

31230BEARING ASSY, CLUTCH RELEASE

main31230-WC001

31233FORK, CLUTCH RELEASE

main31247-WC002

31247LEVER, CLUTCH RELEASE FORK

main33229-WC002

31250DISC ASSY, CLUTCH

main31250-WC002

90118WC025

main90118-WC025

90118WC120

main90118-WC120

90118WC354

main90118-WC354

90118WC355

main90118-WC355

90118WC356

main90118-WC356

14 parts on this diagram · 2 diagrams in section
