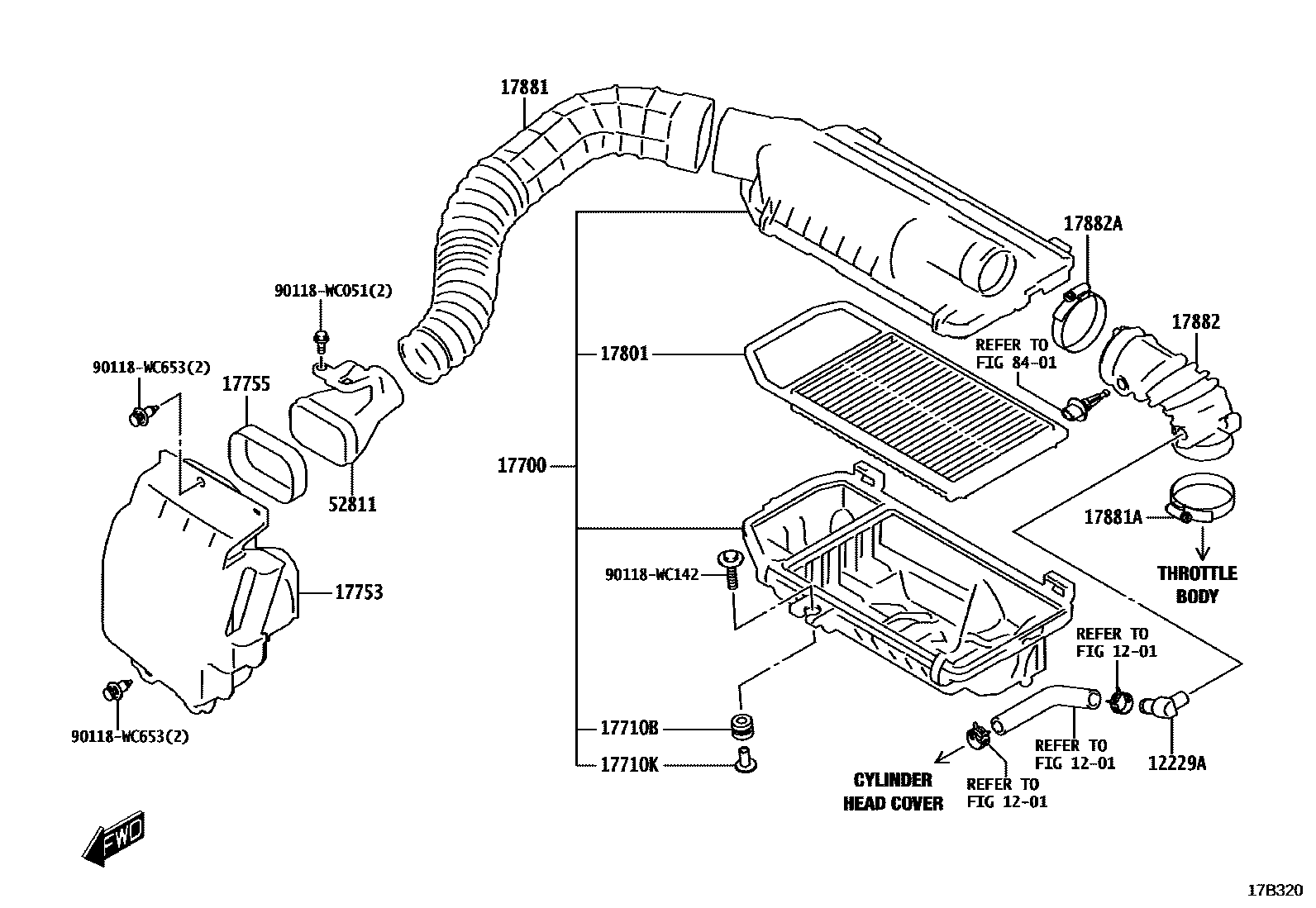

Toyota STARLET — AIR CLEANER

0001 1 0002 1

1201

12229APIPE, VENTILATION

17700CLEANER ASSY, AIR

main17700-WC002

17710BGROMMET

17710KCOLLAR(FOR AIR CLEANER)

17753INLET, AIR CLEANER, NO.3

main17753-WC001

17755SEAL, AIR CLEANER INLET

main90118-WC731

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-WC002

17881HOSE, AIR CLEANER, NO.1

main52812-WC001

main90118-WC814

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17882HOSE, AIR CLEANER, NO.2

main17881-WC002

main90118-WC325

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

52811DUCT, COOL AIR INTAKE, NO.1

main52811-WC002

8401

90118WC051

main90118-WC051

90118WC142

main90118-WC142

90118WC653

main90118-WC653

17 parts on this diagram · 2 diagrams in section
