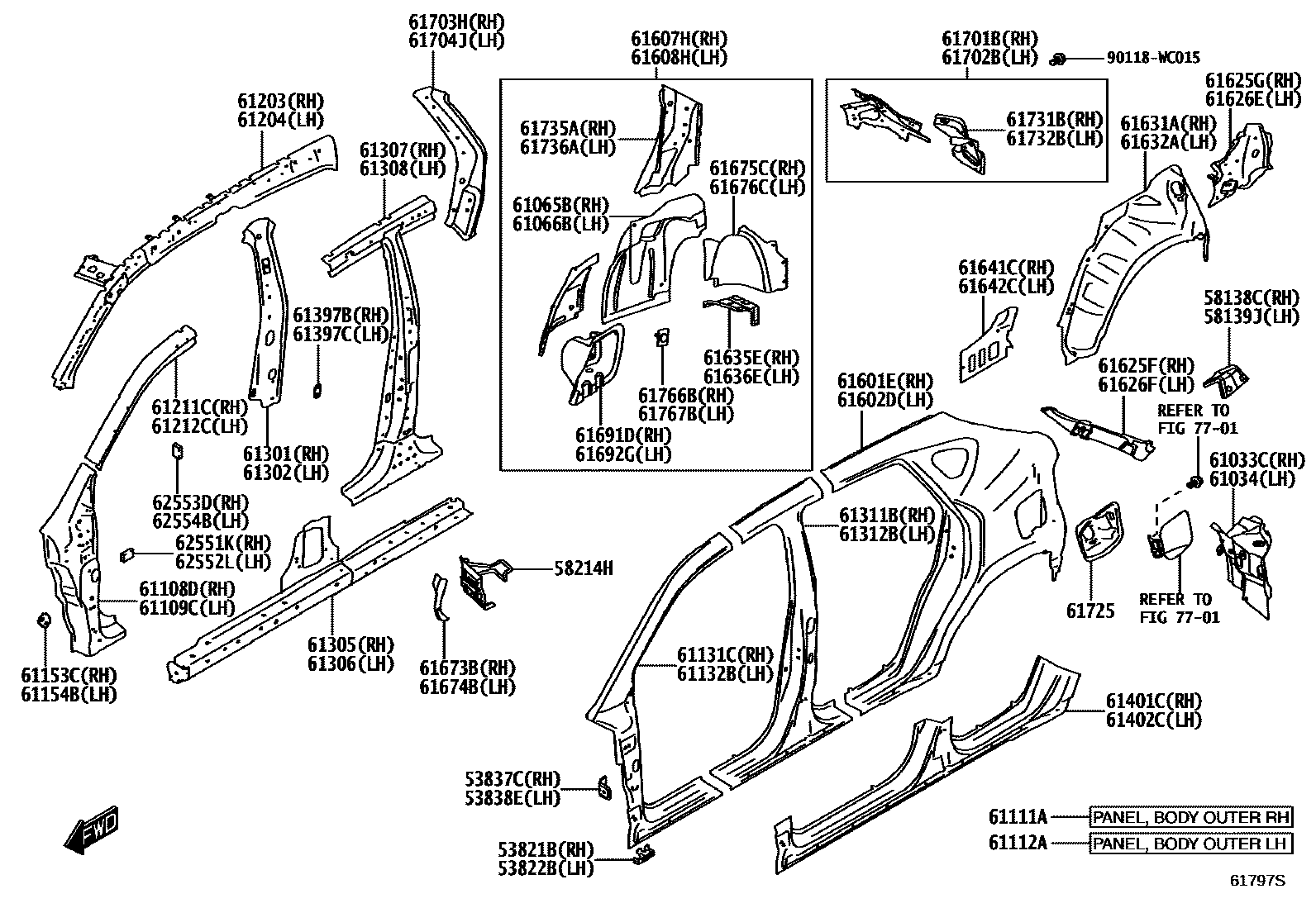

Toyota STARLET CROSS — SIDE MEMBER

0001 1 0002 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-WC006iK15B202404

53822BBRACKET, FRONT FENDER, REAR LH

main53822-WC005iK15B202404

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-WC005iK15B202404

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53837-WC005iK15B202404

58138CBRACKET, FENDER LINER, RH

main58138-WC001iK15B202404

58139JBRACKET, FENDER LINER, LH

main58138-WC001iK15B202404

58214HBRACKET, JACK SUPPORT

main58214-WC002iK15B202404

61033CREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61033-WC001iK15B202404

61034REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61034-WC001iK15B202404

61065BSUPPORT SUB-ASSY, REAR SUSPENSION SPRING, RH

main61065-WC004iK15B202404

61066BSUPPORT SUB-ASSY, REAR SUSPENSION SPRING, LH

main61066-WC004iK15B202404

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-WC006iK15B202404

61109CREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

main61109-WC007iK15B202404

61111APANEL, FRONT SIDE, OUTER RH

main61111-WC040iK15B202404

61112APANEL, FRONT SIDE, OUTER LH

main61112-WC039iK15B202404

61131CPILLAR, FRONT BODY, OUTER RH

main61131-WC002iK15B202404

61132BPILLAR, FRONT BODY, OUTER LH

main61132-WC002iK15B202404

61153CRETAINER, FRONT BODY PILLAR LOWER HINGE, RH

main61153-WC001iK15B202404

61154BRETAINER, FRONT BODY PILLAR LOWER HINGE, LH

main61153-WC001iK15B202404

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-WC006

main61203-WC007

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-WC006

main61204-WC007

61211CRAIL, ROOF SIDE, RH

main61211-WC002iK15B202404

61212CRAIL, ROOF SIDE, LH

main61212-WC002iK15B202404

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-WC007iK15B202404

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-WC007iK15B202404

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-WC011iK15B202404

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-WC010iK15B202404

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-WC006iK15B202404

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-WC006iK15B202404

61311BPILLAR, CENTER BODY, OUTER RH

main61311-WC002iK15B202404

61312BPILLAR, CENTER BODY, OUTER LH

main61312-WC002iK15B202404

61397BRETAINER, CENTER BODY PILLAR

main61371-WC001iK15B202404

61397CRETAINER, CENTER BODY PILLAR

main61371-WC001iK15B202404

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61401-WC002iK15B202404

61402CPANEL SUB-ASSY, ROCKER, OUTER LH

main61402-WC002iK15B202404

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-WC002iK15B202404

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-WC002iK15B202404

61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

main61607-WC014iK15B202404

61608HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

main61608-WC015iK15B202404

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-WC018iK15B202404

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-WC017iK15B202404

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-WC017iK15B202404

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-WC018iK15B202404

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-WC011iK15B202404

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-WC011iK15B202404

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-WC003iK15B202404

61636EEXTENSION, QUARTER WHEEL HOUSE, LH

main61636-WC003iK15B202404

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-WC001iK15B202404

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-WC001iK15B202404

61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

main61673-WC001iK15B202404

61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH

main61674-WC001iK15B202404

61675CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH

main61673-WC006iK15B202404

61676CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR LH

main61674-WC006iK15B202404

61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH

main61691-WC004iK15B202404

61692GREINFORCE, REAR SEATBACK LOCK STRIKER, LH

main61692-WC004iK15B202404

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-WC005iK15B202404

61702BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH

main61702-WC005iK15B202404

61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH

main61703-WC006iK15B202404

61704JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH

main61704-WC006iK15B202404

61725BOX, FUEL INLET

main61725-WC004iK15B202404

61731BPANEL, ROOF SIDE, INNER RH

main61731-WC009iK15B202404

61732BPANEL, ROOF SIDE, INNER LH

main61732-WC007iK15B202404

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-WC003iK15B202404

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-WC003iK15B202404

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-WC003iK15B202404

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61766-WC003iK15B202404

62551KPAD, PILLAR, NO.1 RH

main90118-WC611iK15B202404

62552LPAD, PILLAR, NO.1 LH

main90118-WC611iK15B202404

62553DPAD, PILLAR, NO.3

main90118-WC611iK15B202404

62554BPAD, PILLAR, NO.4

main90118-WC611iK15B202404

7701

90118WC015

main90118-WC015

72 parts on this diagram · 2 diagrams in section
