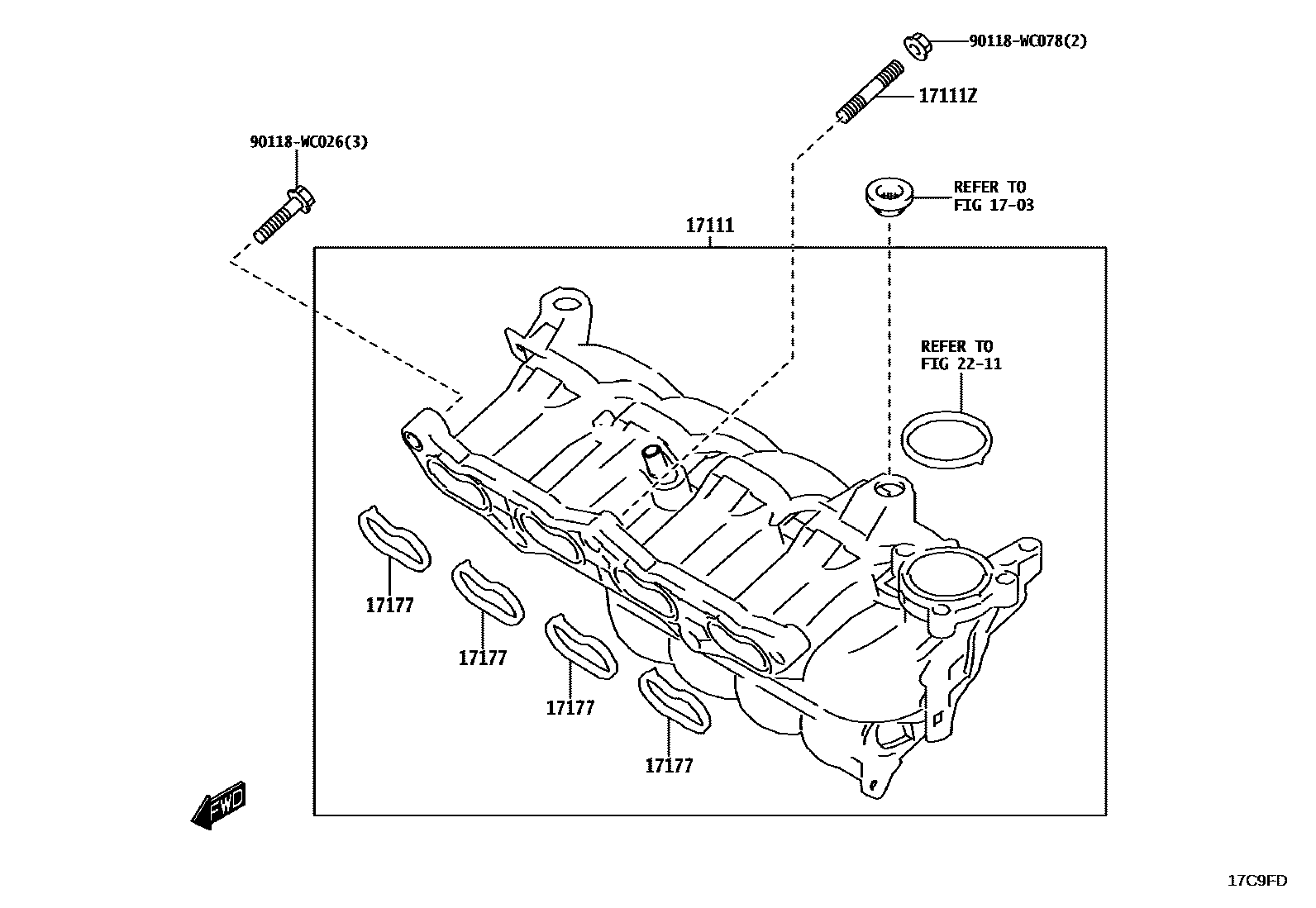

Toyota STARLET CROSS — MANIFOLD

0001 1 0002 1

1703

17111MANIFOLD, INTAKE

main17120-WC003iK15B..K15B202404

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90118-WC006iK15B..K15B202404

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-WC002iK15B..K15B202404

2211

90118WC026

main90118-WC026

90118WC078

main90118-WC078

7 parts on this diagram · 2 diagrams in section
