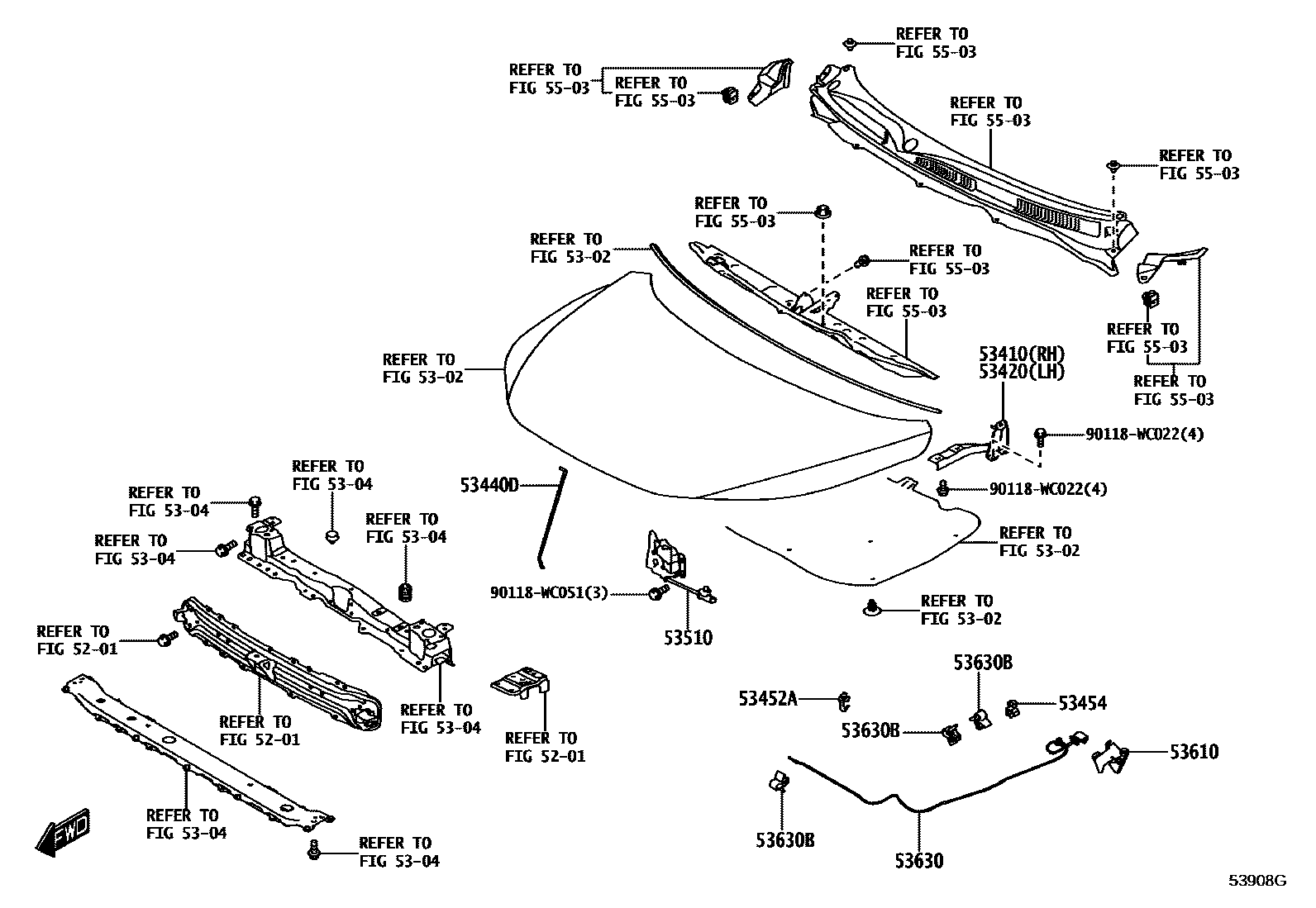

Toyota STARLET CROSS — HOOD LOCK & HINGE

0001 1 0002 1

5201

5302

5304

53410HINGE ASSY, HOOD, RH

main53410-WC009iK15B202404

53420HINGE ASSY, HOOD, LH

main53420-WC009iK15B202404

53440DSUPPORT ASSY, HOOD

main53440-WC010iK15B202404

53452AHOLDER, HOOD STAY

main53452-WC005iK15B202404

53454CLIP, HOOD SUPPORT ROD

main53454-WC001iK15B202404

53510LOCK ASSY, HOOD

main53510-WC024

main53510-WC025

53610LEVER ASSY, HOOD LOCK RELEASE

main53510-WC015iK15B202404

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WC012iK15B202404

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90118-WCC55iK15B202404

5503

90118WC022

main90118-WC022

90118WC051

main90118-WC051

15 parts on this diagram · 2 diagrams in section
