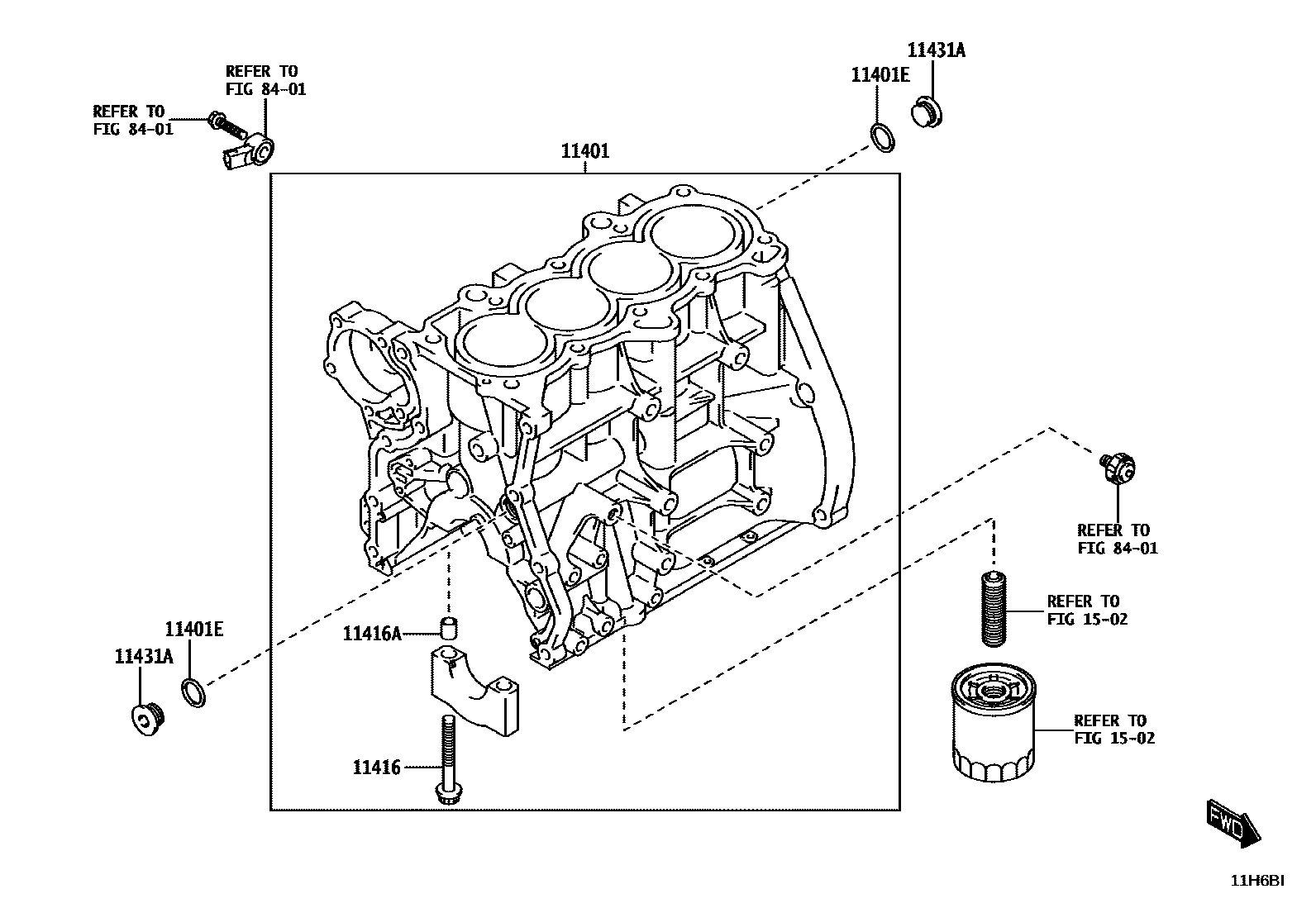

Toyota STARLET CROSS — CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11410-WC005iK15B..K15B202404

11401EGASKET(FOR CYLINDER BLOCK PLUG)

main90118-WC640iK15B..K15B202404

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90118-WCA44iK15B..K15B202404

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90118-WC067iK15B..K15B202404

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90118-WC202iK15B..K15B202404

1502

8401

7 parts on this diagram · 4 diagrams in section
