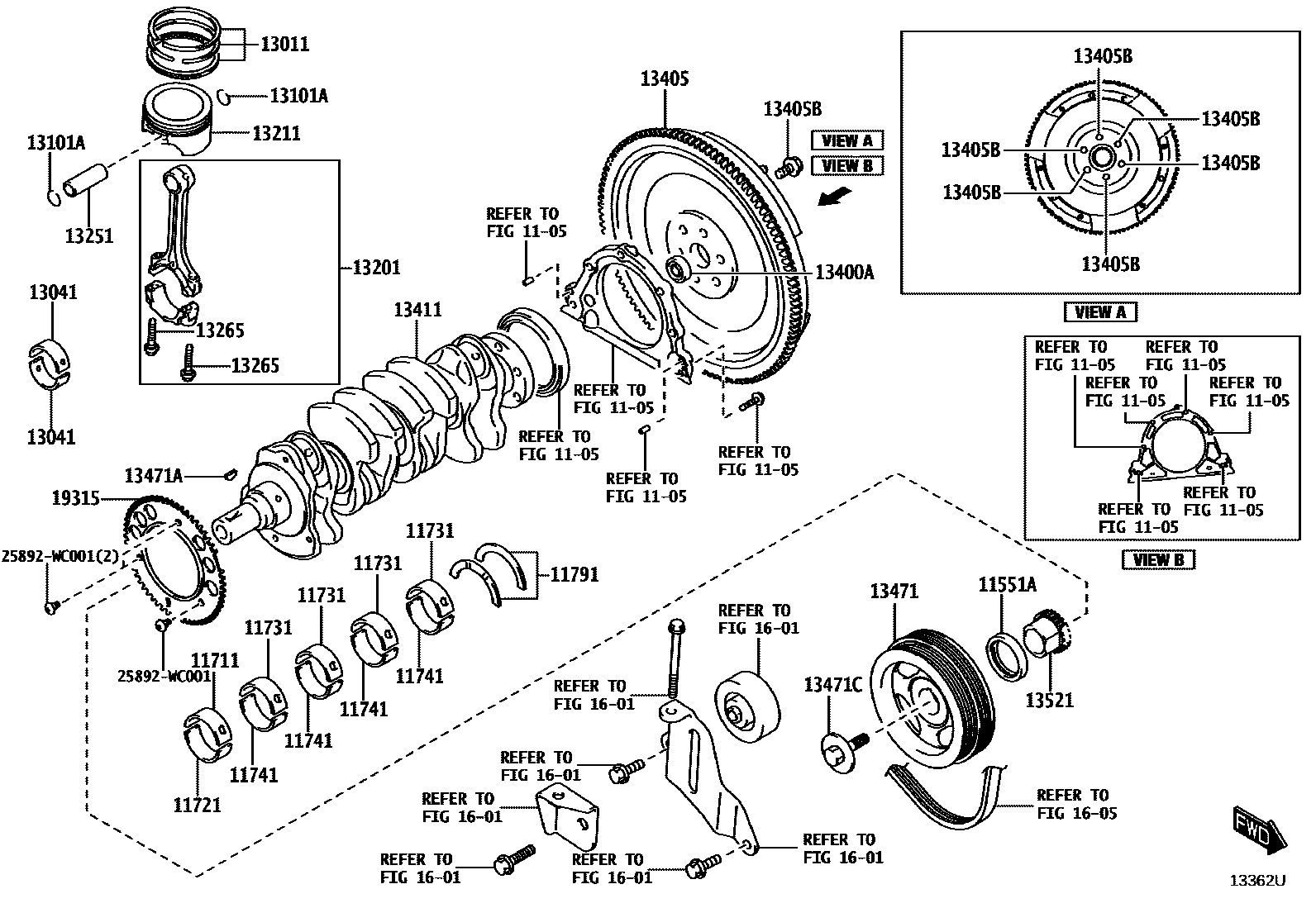

Toyota STARLET CROSS — CRANKSHAFT & PISTON
1105
11551ASEAL, CRANKSHAFT OIL
11711BEARING, CRANKSHAFT
RED/PINK
PINK
RED/PURPLE
PURPLE
RED/BROWN
BROWN
RED/GREEN
GREEN
RED/BLACK
BLACK
11721BEARING, CRANKSHAFT, NO.2
RED/PINK
PINK
RED/PURPLE
PURPLE
RED/BROWN
BROWN
RED/GREEN
GREEN
RED/BLACK
BLACK
11731BEARING, CRANKSHAFT, NO.3
RED/GREEN
GREEN
RED/BLACK
BLACK
RED
COLOR = NON
RED/PURPLE
PURPLE
RED/BROWN
BROWN
11741BEARING, CRANKSHAFT, NO.4
RED/GREEN
GREEN
RED/BLACK
BLACK
RED
COLOR = NON
RED/PURPLE
PURPLE
RED/BROWN
BROWN
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
U/S 0.125
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
COLOR = GREEN
COLOR = BLACK
COLOR = NON
COLOR = YELLOW
COLOR = BLUE
COLOR = RED
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13211PISTON
13251PIN, PISTON
13265BOLT, CONNECTING ROD
13400ABEARING(FOR CRANKSHAFT)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
1601
1605
19315PLATE, CRANK ANGLE SENSOR, NO.1
25892WC001
main25892-WC001
26 parts on this diagram · 1 diagram in section
