Toyota SPRINTER — PARTIAL ENGINE ASSEMBLY

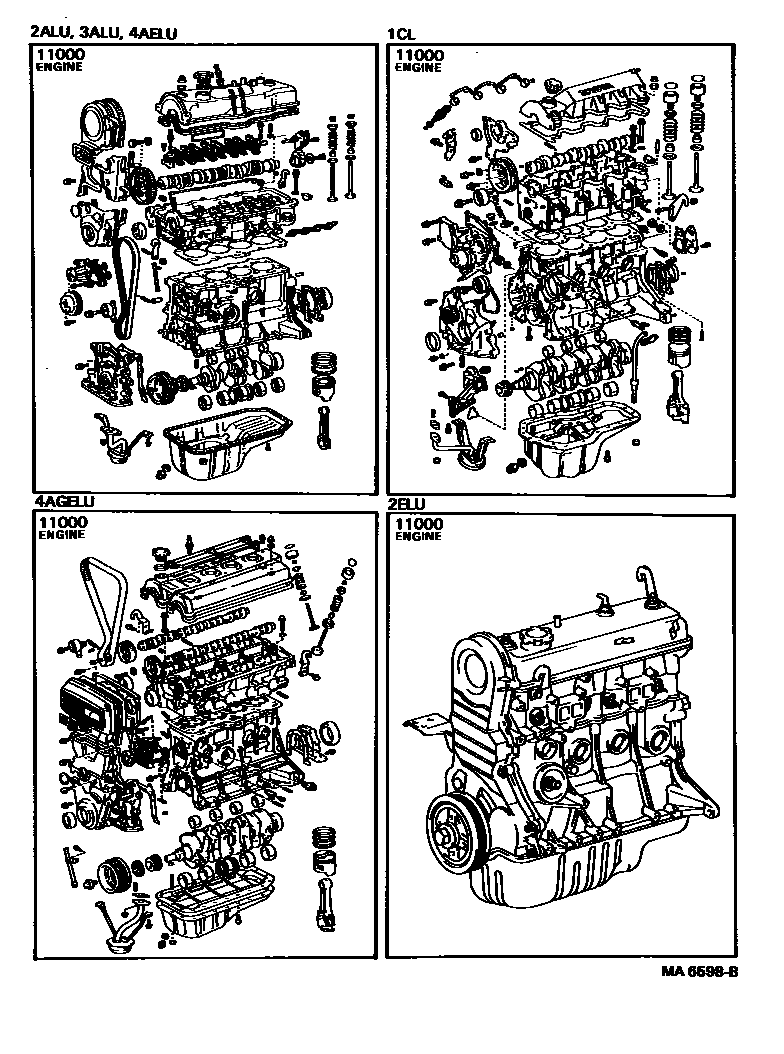

11000ENGINE ASSY, PARTIAL

main19000-11140i2ELU..EE80198505-198604

sub19000-11141

sub12511-11010

sub16100-19195

sub16381-11020

sub44311-10011

sub88431-12341

sub88444-10031

sub88451-12031

sub90105-08100

main19000-11141i2ELU..EE80198604-198704

main19000-11150i2ELU..EE80..SPD198505-198604

*52

sub19000-11151

sub12511-11010

sub16100-19195

sub16381-11020

sub44311-10011

sub88431-12341

sub88444-10031

sub88451-12031

sub90105-08100

main19000-11151i2ELU..EE80..SPD198604-198704

*52

main19000-14060i2ALU..AE80198305-198505

main19000-15190i3ALU..AE81198305-198704

sub19000-15191

main19000-16020i4AELU..AE82198305-198505

sub19000-16050

sub90919-01085

main19000-16220i4AGELU..AE82198410-198704

sub19000-16221

main19000-16250i4AELU..AE82198505-198704

main19000-64041i1CL..CE80..5F198305-198505

sub19000-64043

sub90105-16064

sub90560-16025

main19000-64160i1CL..CE80..ATM198305-198505

W/OIL COOLER PIPE

main19000-64180i1CL..CE80..5F198505-198608

main19000-64181i1CL..CE80..5F198608-198704

main19000-64190i1CL..CE80..4FC198505-198608

W/OIL COOLER PIPE

main19000-64191i1CL..CE80..4FC198608-198704

W/OIL COOLER PIPE

1 parts on this diagram · 1 diagram in section
