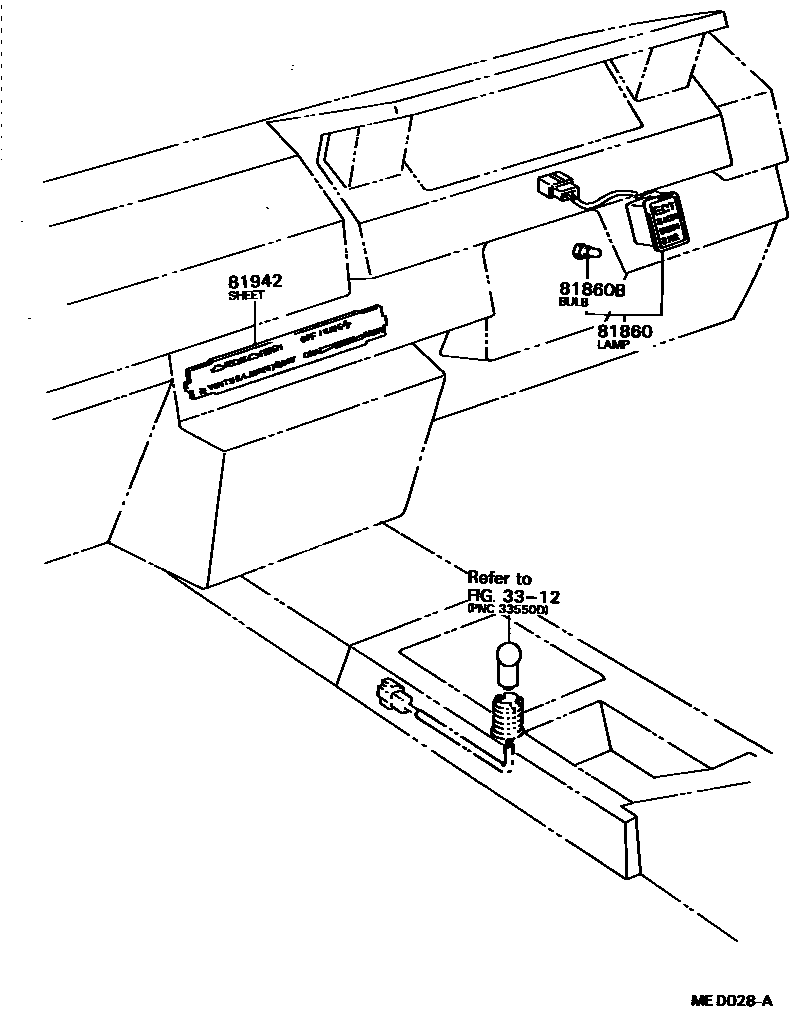

Toyota SPRINTER — INDICATOR

3312

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12010iAE82..4FC198305-198704

W/*ECT

main81860-12020iAE81,CE80..4FC198401-198704

W/OVER DRIVE

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iAE81,82,CE80..4FC198305-198704

81942SHEET, HEATER CONTROL NAME

main81942-12070iAE8#,CE80198305-198408

main81942-12071iAE8#,CE80..DX,SE,SPD,SR,SX,XL,ZX198408-198505

sub81942-12150

main81942-12071iAE82..GT198410-198505

W/*DS

sub81942-12150

main81942-12100iAE81,CE80..4FC..(SE,ZX)198305-198408

W/*AAC

main81942-12101iAE81,CE80..(3FC,5F)..(SE,SX,ZX)198408-198505

W/*AAC

sub81942-12210

main81942-12101iAE82..GT198410-198505

W/*DS & *AAC

sub81942-12210

main81942-12130iAE82..GT198410-198505

W/*AS

sub81942-12160

main81942-12140iAE82..GT198410-198505

W/*AS & *AAC

sub81942-12220

main81942-12150iAE82..SE;AE81,CE80,EE80198505-198704

W/*DS

main81942-12160iAE82..GT,ZX198505-198704

W/*AS

sub81942-12150

main81942-12210iAE82..SE198505-198704

W/*AAC

main81942-12210iAE82..SE198505-198704

W/*DS & *AAC

main81942-12220iAE82..GT,ZX198505-198704

W/*AS & *AAC

sub81942-12210

4 parts on this diagram · 1 diagram in section
