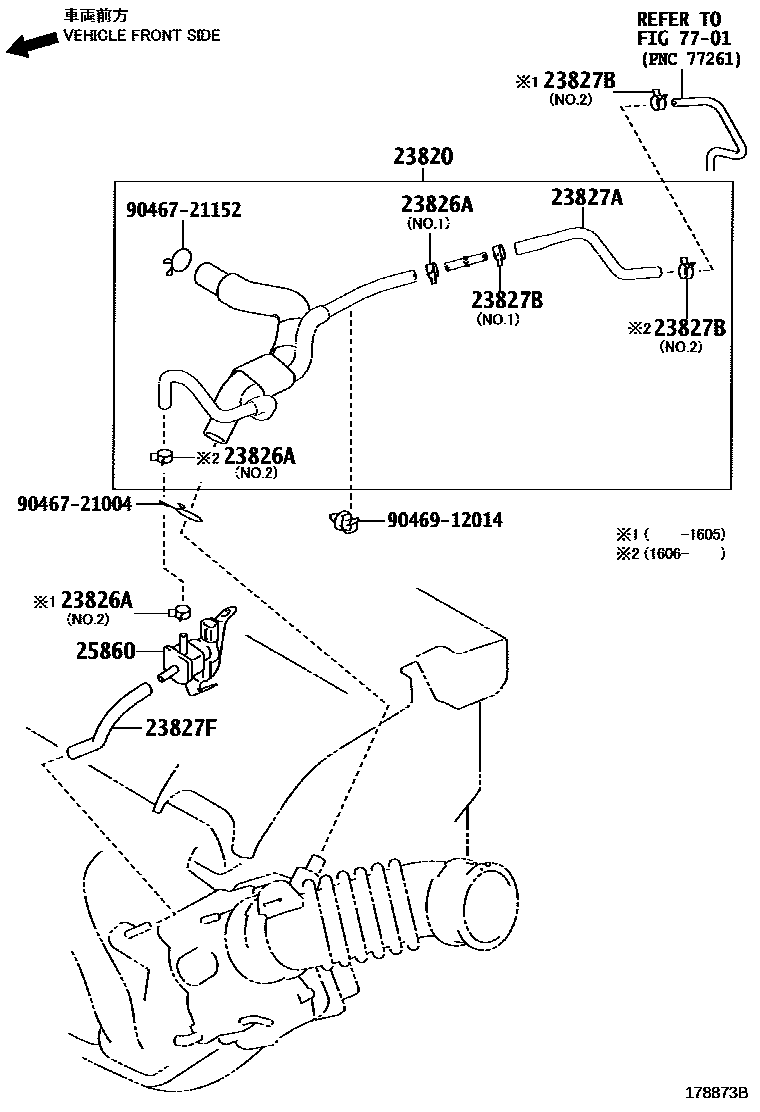

Toyota SIENTA — VACUUM PIPING

0001 1 0002 1 0003 1

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21160i1NZFXE..NHP170¥2,070201507-202207

main23820-21250i1NZFE..NCP175¥6,500201506-201605

sub23820-21251¥4,500

main23820-21251i1NZFE..NCP175¥4,500201606-202207

main23820-47070i2NRFKE..NSP17#¥2,360201506-202207

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21200i1NZFXE..NHP170¥850201507-202207

main23826-47120i2NRFKE..NSP17#¥1,540201506-202207

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100i1NZFXE..NHP170¥120201506-201607

main96132-51100i1NZFE,2NRFKE..NCP175,NSP17#¥120201506-202207

main96132-51300i1NZFXE..NHP170¥120201507-201607

main96133-51101i1NZFXE..NHP170¥110201608-202207

main96133-51301i1NZFXE..NHP170¥140201608-202207

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21170i1NZFXE..NHP170¥770201507-202207

main23827-21240i1NZFE..NCP175¥480201506-202207

main23827-47090i2NRFKE..NSP17#¥1,170201506-202207

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51000i1NZFE,2NRFKE..NCP175,NSP17#¥160201506-202207

main96132-51100i1NZFE,2NRFKE..NCP175,NSP17#¥120201506-202207

main96132-51100i1NZFXE..NHP170¥120201507-201607

main96133-51101i1NZFXE..NHP170¥110201608-202207

23827FHOSE, FUEL VAPOR FEED, NO.3

main23827-21150i1NZFE..NCP175¥640201506-202207

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-21130i1NZFXE..NHP170¥3,480201507-202207

main25860-21150i1NZFE..NCP175¥3,480201506-202207

7701

9046721004

main90467-21004¥130

9046721152

main90467-21152¥350

9046912014

main90469-12014¥110

11 parts on this diagram · 3 diagrams in section
