Toyota SIENTA — SHORT BLOCK ASSEMBLY

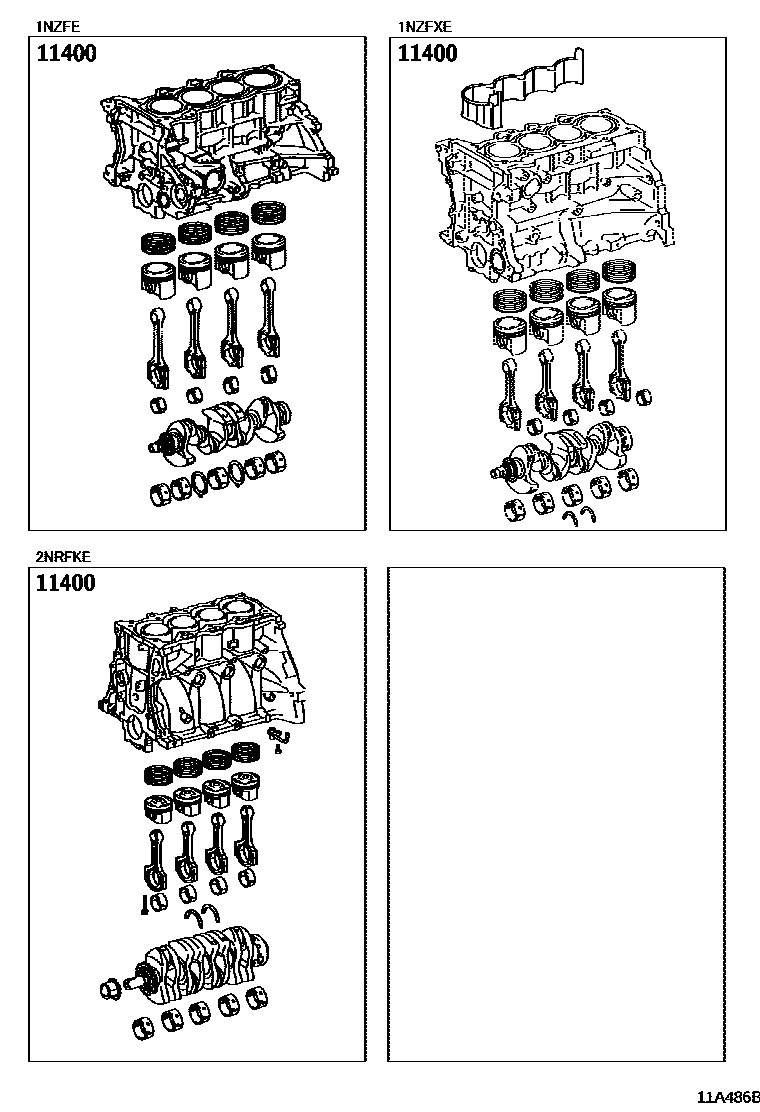

Parts diagram
11400BLOCK ASSY, SHORT
main11400-21193i¥188,000201506-201809
main11400-21193i¥188,000201809-202207
main11400-21430i¥208,000201507-201809
main11400-21490i¥188,000201809-202207
main11400-47210i¥188,000201506-201809
main11400-47210i¥188,000201809-202207

1 parts on this diagram · 1 diagram in section
