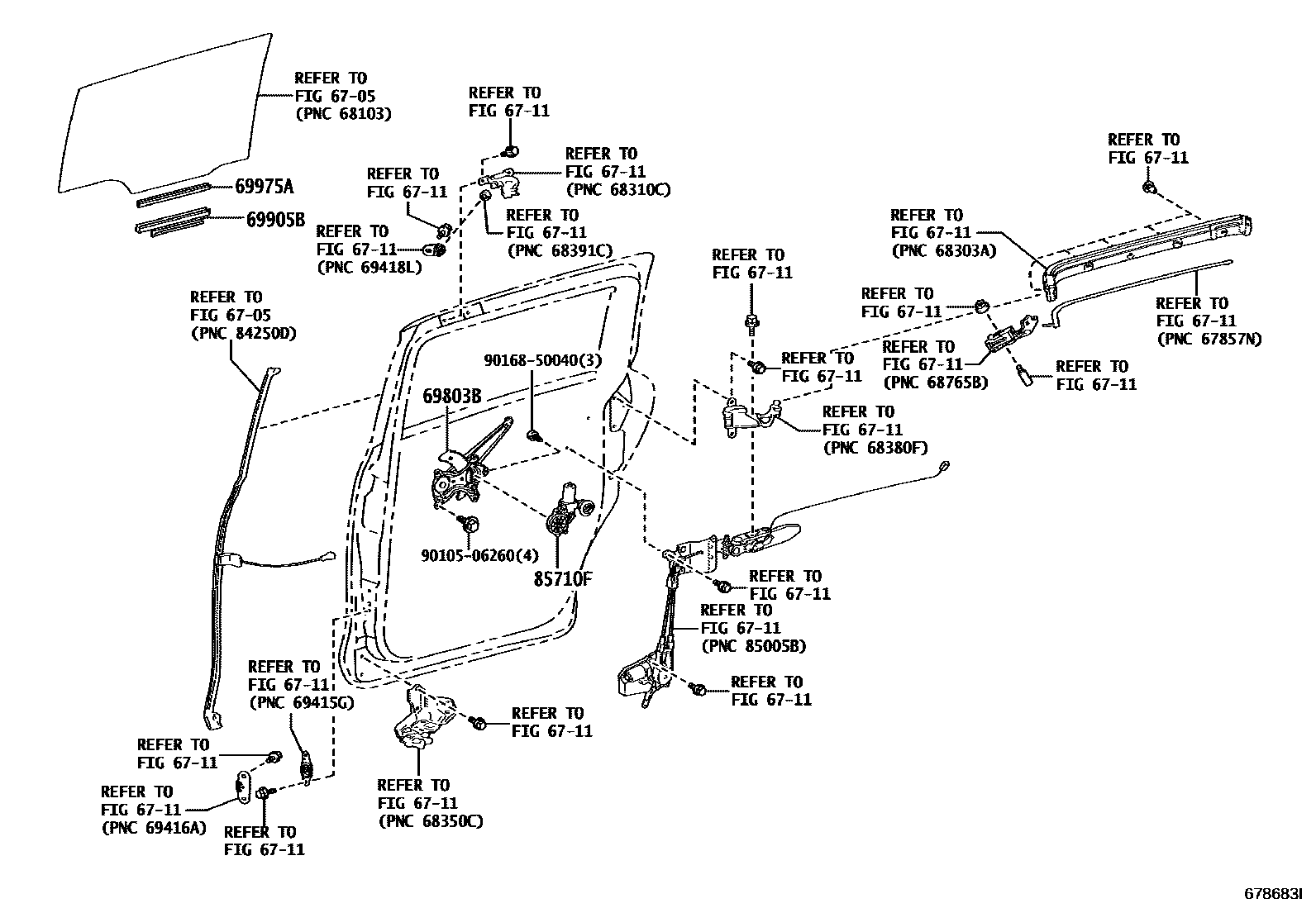

Toyota SIENTA — REAR DOOR WINDOW REGULATOR & HINGE

0001 1��� 0002 1���

6705

6711

69803BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, RH

main69803-52130iNCP175,NHP170,NSP17#¥3,470201506-202207

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iNCP175,NHP170,NSP17#¥400201506-202207

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iNCP175,NHP170,NSP17#¥370201506-202207

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52210iNCP175,NHP170,NSP17#¥25,300201506-201603

sub85720-52211¥21,100

main85720-52211iNCP175,NHP170,NSP17#¥21,100201604-201902

sub85720-52240¥15,900

main85720-52240iNCP175,NHP170,NSP17#¥15,900201903-202207

9010506260

main90105-06260¥60

9016850040

main90168-50040¥70

8 parts on this diagram · 2 diagrams in section
