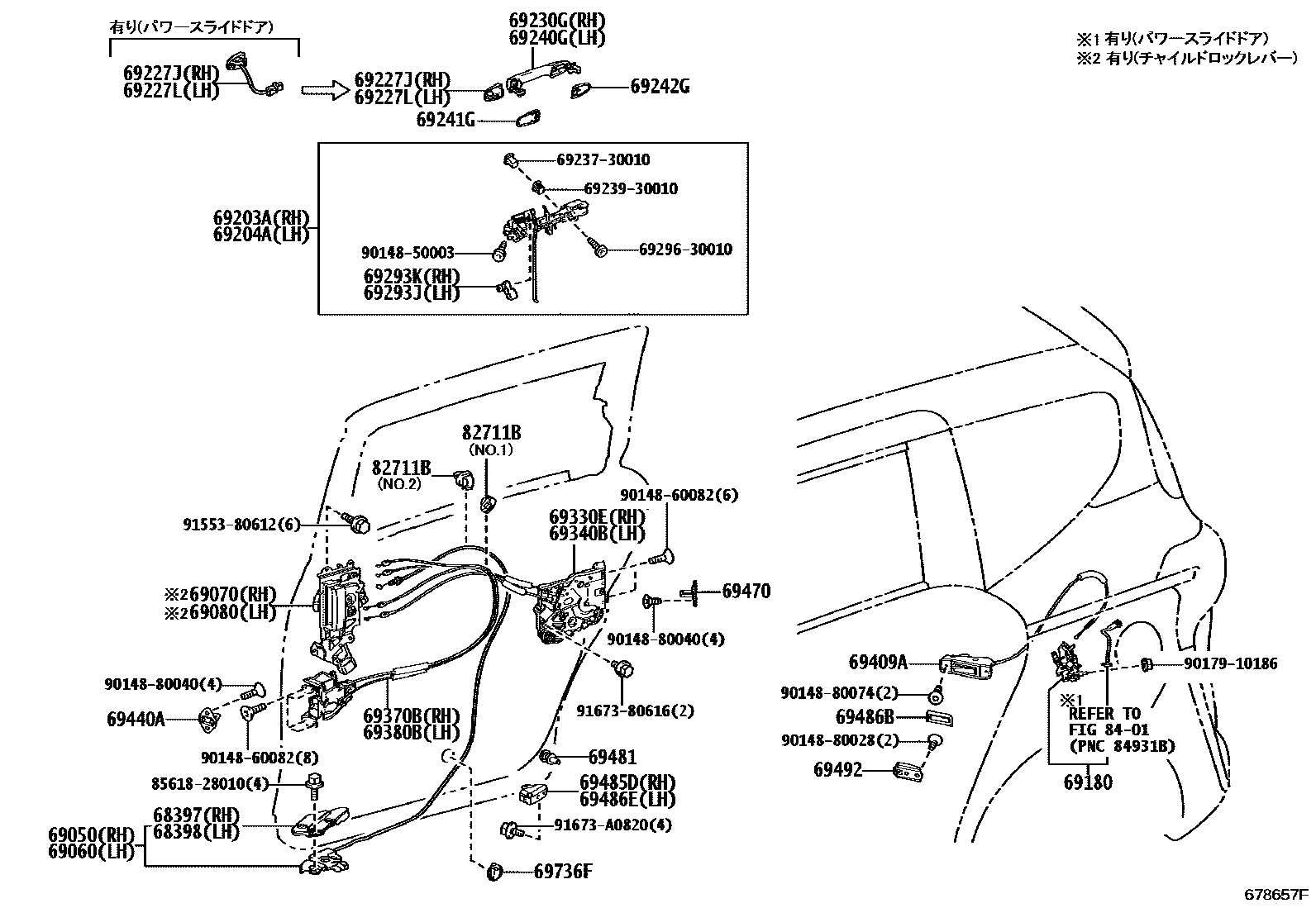

Toyota SIENTA — REAR DOOR LOCK & HANDLE

68397COVER, SLIDE DOOR LOWER ROLLER, RH

main68397-52010iNCP175,NHP170,NSP17#¥1,920201506-201611

main68397-52020iNCP175,NHP170,NSP17#¥2,060201611-202207

68398COVER, SLIDE DOOR LOWER ROLLER, LH

main68398-52010iNCP175,NHP170,NSP17#¥1,920201506-201611

main68398-52020iNCP175,NHP170,NSP17#¥2,060201611-202207

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-52280iNCP175,NHP170,NSP17#¥3,440201506-201611

sub69050-52300¥3,440

main69050-52300iNCP175,NHP170,NSP17#¥3,440201611-202207

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-52310iNCP175,NHP170,NSP17#¥3,440201506-201611

sub69060-52320¥3,440

main69060-52320iNCP175,NHP170,NSP17#¥3,440201611-202207

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-28180-C0iNCP175,NHP170,NSP17#..G201506-201702

BLACK,TRIM0#,2#

sub69070-28181¥14,300

main69070-28181-C0iNCP175,NHP170,NSP17#..G201703-201809

BLACK,TRIM0#,2#

main69070-28190-C0iNCP175,NHP170,NSP17#..X201506-201702

BLACK,TRIM0#,2#

sub69070-28191¥10,300

main69070-28191-C0iNCP175,NHP170,NSP17#..WKX,X201703-202207

BLACK,TRIM0#,2#

main69070-28191-C0iNCP175,NHP170,NSP17#..WKX,X201809-202207

BLACK,TRIM2#

main69070-28210-C0iNSP172..WKG201809-202207

BLACK,TRIM2#

main69070-28210-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM0#,2#,4#

main69070-28210-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM0#,2#

main69070-28210-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#,4#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-28140-C0iNCP175,NHP170,NSP170..FNBSX,FNGCR,GCERO201809-202207

BLACK,TRIM2#

main69080-28140-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#,4#

main69080-28140-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM0#,2#

main69080-28140-C0iNCP175,NHP170,NSP17#..WKG,WKX,X201809-202207

BLACK,TRIM0#,2#,4#

main69080-28180-C0iNCP175,NHP170,NSP17#201506-201702

BLACK,TRIM0#,2#

main69080-28181-C0iNCP175,NHP170,NSP17#201703-201809

BLACK,TRIM0#,2#

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-52040iNCP175,NHP170,NSP17#¥5,200201506-202207

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-52130iNCP175,NHP170,NSP17#¥3,740201506-202207

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-52160iNCP175,NHP170,NSP17#¥3,740201506-202207

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69217-52040-A0iNSP172..WKX201506-202207

SUPER WHITE 2,040

sub69217-52040¥800

main69217-52040-A1iNCP175,NHP170,NSP17#..X201506-201809

WHITE PEARL CS.,070

sub69217-52040¥800

main69217-52040-A1iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202207

WHITE PEARL CS.,070 ,2SF

sub69217-52040¥800

main69217-52040-B0iNCP175,NHP170,NSP17#..FNBSX,WKX,X201506-202207

SILVER ME.,1F7

sub69217-52040¥800

main69217-52040-C0iNCP175,NHP170,NSP17#..X201506-202207

BLACK MC.,209

sub69217-52040¥800

main69217-52040-D7iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202207

RED MC.,2PN ,3T3

sub69217-52040¥800

main69217-52040-E6iNCP175,NHP170,NSP17#..FNBSX,WKX,X202006-202207

AVANT-GARDE BRONZE ME.,4V8

sub69217-52040¥800

main69217-52040-F7iNCP175,NHP170,NSP170..X201506-201809

AIR YELLOW,5B6

sub69217-52040¥800

main69217-52040-F7iNCP175,NHP170,NSP170..FNBSX,X201809-202207

AIR YELLOW,2SH ,5B6

sub69217-52040¥800

main69217-52040-G4iNCP175,NHP170,NSP170..X201506-201809

GREEN M.M.,6W8

sub69217-52040¥800

main69217-52040-G5iNCP175,NHP170,NSP170..FNBSX,X201809-202106

RADIANT GREEN ME.,2SK ,6W9

sub69217-52040¥800

main69217-52040-J7iNCP175,NHP170,NSP17#..FNBSX,WKX,X201506-202006

BLUE ME.,8T7

sub69217-52040¥800

main69217-52040-L5iNCP175,NHP170,NSP170..FNBSX,X201809-202207

VINTAGE BROWN PEARL CS.,2SJ ,4X4

sub69217-52040¥800

main69217-52040-L5iNCP175,NHP170,NSP17#..X201506-201809

VINTAGE BROWN PEARL CS.,4X4

sub69217-52040¥800

main69217-52040-L8iNCP175,NHP170,NSP170..FNBSX,X201809-202207

BEIGE,2SG ,4V6

sub69217-52040¥800

main69217-52040-R4iNSP172..WKX202006-202207

DK.BLUE M.M.,2TT ,8W7

sub69217-52040¥800

main69217-52040-R4iNCP175,NHP170,NSP170..FNBSX,X202006-202207

DK.BLUE M.M.,8W7

sub69217-52040¥800

main69217-52040-X0iNCP175,NHP170,NSP170..X201506-201809

RED M.M.,3T8

sub69217-52040¥800

main69227-28080-A0iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201809-202207

WHITE PEARL CS.,070 ,2SF

main69227-28080-A0iNCP175,NHP170,NSP17#..G201506-201809

WHITE PEARL CS.,070

main69227-28080-A1iNSP172..WKG201506-202207

SUPER WHITE 2,040

main69227-28080-B0iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201506-202207

SILVER ME.,1F7

main69227-28080-C3iNCP175,NHP170,NSP17#..FNGCR,GCERO,WKG201506-202207

BLACK MC.,209

main69227-28080-C3iNCP175,NHP170,NSP170..FNBSG,G201809-202207

BLACK MC.,070 ,209 ,3T3 ,4V6 ,8W2

main69227-28080-D2iNCP175,NHP170,NSP170..G201506-201809

RED M.M.,3T8

main69227-28080-D4iNCP175..G;NHP170,NSP170..07S..G201708-201809

COOL BORDEAUX GF.,3T9

main69227-28080-D5iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201809-202207

RED MC.,2PN ,3T3

main69227-28080-E3iNCP175,NHP170,NSP17#..G201506-202207

VINTAGE BROWN PEARL CS.,4X4

main69227-28080-E3iNCP175,NHP170,NSP170..FNBSG,G,GCERO201809-202207

VINTAGE BROWN PEARL CS.,2SJ ,4X4

main69227-28080-E4iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG202006-202207

AVANT-GARDE BRONZE ME.,4V8

main69227-28080-E5iNCP175,NHP170,NSP170..FNBSG,FNGCR,G,GCERO201809-202207

BEIGE,2SG ,4V6

main69227-28080-F2iNCP175,NHP170,NSP170..FNBSG,FNGCR,G,GCERO201809-202207

AIR YELLOW,2SH ,5B6

main69227-28080-F2iNCP175,NHP170,NSP170..G201506-201809

AIR YELLOW,5B6

main69227-28080-G1iNCP175,NHP170,NSP170..G201506-201809

GREEN M.M.,6W8

main69227-28080-G2iNCP175,NHP170,NSP170..FNBSG,FNGCR,G,GCERO201809-202106

RADIANT GREEN ME.,2SK ,6W9

main69227-28080-J0iNCP175,NHP170,NSP17#..G201506-202006

BLUE ME.,8T7

main69227-28080-J1iNCP175,NHP170,NSP170..FNBSG,G202106-202207

GRAYISH BLUE,8W2

main69227-28080-J2iNSP172..WKG202006-202207

DK.BLUE M.M.,2TT ,8W7

main69227-28080-J2iNCP175,NHP170,NSP170..FNBSG,FNGCR,G,GCERO202006-202207

DK.BLUE M.M.,8W7

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-28080-A0iNCP175,NHP170,NSP17#201506-201809

WHITE PEARL CS.,070

main69227-28080-A0iNCP175,NHP170,NSP17#201809-202207

WHITE PEARL CS.,070 ,2SF

main69227-28080-A1iNSP172201506-202207

SUPER WHITE 2,040

main69227-28080-B0iNCP175,NHP170,NSP17#201506-202207

SILVER ME.,1F7

main69227-28080-C3iNCP175,NHP170,NSP17#201506-202207

BLACK MC.,209

main69227-28080-C3iNCP175,NHP170,NSP170..FNBSG,G201809-202207

BLACK MC.,070 ,209 ,3T3 ,4V6 ,8W2

main69227-28080-D2iNCP175,NHP170,NSP170201506-201809

RED M.M.,3T8

main69227-28080-D4iNCP175..G;NHP170,NSP170..07S..G201708-201809

COOL BORDEAUX GF.,3T9

main69227-28080-D5iNCP175,NHP170,NSP17#201809-202207

RED MC.,2PN ,3T3

main69227-28080-E3iNCP175,NHP170,NSP17#201506-202207

VINTAGE BROWN PEARL CS.,4X4

main69227-28080-E3iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,GCERO,X201809-202207

VINTAGE BROWN PEARL CS.,2SJ ,4X4

main69227-28080-E4iNCP175,NHP170,NSP17#202006-202207

AVANT-GARDE BRONZE ME.,4V8

main69227-28080-E5iNCP175,NHP170,NSP170201809-202207

BEIGE,2SG ,4V6

main69227-28080-F2iNCP175,NHP170,NSP170201506-201809

AIR YELLOW,5B6

main69227-28080-F2iNCP175,NHP170,NSP170201809-202207

AIR YELLOW,2SH ,5B6

main69227-28080-G1iNCP175,NHP170,NSP170201506-201809

GREEN M.M.,6W8

main69227-28080-G2iNCP175,NHP170,NSP170201809-202106

RADIANT GREEN ME.,2SK ,6W9

main69227-28080-J0iNCP175,NHP170,NSP17#201506-202006

BLUE ME.,8T7

main69227-28080-J1iNCP175,NHP170,NSP170..FNBSG,G202106-202207

GRAYISH BLUE,8W2

main69227-28080-J2iNCP175,NHP170,NSP170202006-202207

DK.BLUE M.M.,8W7

main69227-28080-J2iNCP175,NHP170,NSP170202006-202207

DK.BLUE M.M.,2TT ,8W7

69230GHANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69213-28030-A0iNCP175,NHP170,NSP17#201506-201809

WHITE PEARL CS.,070

main69213-28030-A0iNCP175,NHP170,NSP17#201809-202207

WHITE PEARL CS.,070 ,2SF

main69213-28030-A2iNSP172201506-202207

SUPER WHITE 2,040

main69213-28030-B0iNCP175,NHP170,NSP17#201506-202207

SILVER ME.,1F7

main69213-28030-C4iNCP175,NHP170,NSP17#..FNBSX,FNGCR,GCERO,WKG,WKX,X201809-202207

BLACK MC.,070 ,209 ,3T3 ,4V6 ,8W2

main69213-28030-C4iNCP175,NHP170,NSP170..FNBSG,G201506-202207

BLACK MC.,209

main69213-28030-D2iNCP175,NHP170,NSP170201506-201809

RED M.M.,3T8

main69213-28030-D3iNCP175..G;NHP170,NSP170..07S..G201708-201809

COOL BORDEAUX GF.,3T9

main69213-28030-D4iNCP175,NHP170,NSP17#201809-202207

RED MC.,2PN ,3T3

main69213-28030-E3iNHP170,NSP170..FNGCR201506-202207

VINTAGE BROWN PEARL CS.,4X4

main69213-28030-E3iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,GCERO,X201809-202207

VINTAGE BROWN PEARL CS.,2SJ ,4X4

main69213-28030-E4iNCP175,NHP170,NSP17#202006-202207

AVANT-GARDE BRONZE ME.,4V8

main69213-28030-E5iNCP175,NHP170,NSP170201809-202207

BEIGE,2SG ,4V6

main69213-28030-F1iNCP175,NHP170,NSP170201506-201809

AIR YELLOW,5B6

main69213-28030-F1iNCP175,NHP170,NSP170201809-202207

AIR YELLOW,2SH ,5B6

main69213-28030-G1iNCP175,NHP170,NSP170201506-201809

GREEN M.M.,6W8

main69213-28030-G2iNCP175,NHP170,NSP170201809-202106

RADIANT GREEN ME.,2SK ,6W9

main69213-28030-J1iNCP175,NHP170,NSP17#201506-202006

BLUE ME.,8T7

main69213-28030-J2iNCP175,NHP170,NSP170..FNBSG,G202106-202207

GRAYISH BLUE,8W2

main69213-28030-J3iNCP175,NHP170,NSP170202006-202207

DK.BLUE M.M.,8W7

main69213-28030-J3iNSP172202006-202207

DK.BLUE M.M.,2TT ,8W7

69240GHANDLE ASSY, SLIDE DOOR, OUTSIDE LH

main69213-28030-A0iNCP175,NHP170,NSP17#201809-202207

WHITE PEARL CS.,070 ,2SF

main69213-28030-A0iNCP175,NHP170,NSP17#201506-201809

WHITE PEARL CS.,070

main69213-28030-A2iNSP172201506-202207

SUPER WHITE 2,040

main69213-28030-B0iNCP175,NHP170,NSP17#201506-202207

SILVER ME.,1F7

main69213-28030-C4iNCP175,NHP170,NSP17#..FNBSX,FNGCR,GCERO,WKG,WKX,X201506-202207

BLACK MC.,209

main69213-28030-C4iNCP175,NHP170,NSP17#..FNBSX,FNGCR,GCERO,WKG,WKX,X201809-202207

BLACK MC.,070 ,209 ,3T3 ,4V6 ,8W2

main69213-28030-D2iNCP175,NHP170,NSP170201506-201809

RED M.M.,3T8

main69213-28030-D3iNCP175..G;NHP170,NSP170..07S..G201708-201809

COOL BORDEAUX GF.,3T9

main69213-28030-D4iNCP175,NHP170,NSP17#201809-202207

RED MC.,2PN ,3T3

main69213-28030-E3iNCP175,NHP170,NSP17#201506-202207

VINTAGE BROWN PEARL CS.,4X4

main69213-28030-E3iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,GCERO,X201809-202207

VINTAGE BROWN PEARL CS.,2SJ ,4X4

main69213-28030-E4iNCP175,NHP170,NSP17#202006-202207

AVANT-GARDE BRONZE ME.,4V8

main69213-28030-E5iNCP175,NHP170,NSP170201809-202207

BEIGE,2SG ,4V6

main69213-28030-F1iNCP175,NHP170,NSP170201506-201809

AIR YELLOW,5B6

main69213-28030-F1iNCP175,NHP170,NSP170201809-202207

AIR YELLOW,2SH ,5B6

main69213-28030-G1iNCP175,NHP170,NSP170201506-201809

GREEN M.M.,6W8

main69213-28030-G2iNCP175,NHP170,NSP170201809-202106

RADIANT GREEN ME.,2SK ,6W9

main69213-28030-J1iNCP175,NHP170,NSP17#201506-202006

BLUE ME.,8T7

main69213-28030-J2iNCP175,NHP170,NSP170..FNBSG,G202106-202207

GRAYISH BLUE,8W2

main69213-28030-J3iNSP172202006-202207

DK.BLUE M.M.,2TT ,8W7

main69213-28030-J3iNCP175,NHP170,NSP170202006-202207

DK.BLUE M.M.,8W7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69242-52030iNCP175,NHP170,NSP17#¥400201506-202207

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-52020iNCP175,NHP170,NSP17#¥400201506-202207

69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH

main69293-28040iNCP175,NHP170,NSP17#¥90201506-202207

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-28030iNCP175,NHP170,NSP17#¥90201506-202207

69330ELOCK ASSY, SLIDE DOOR, RH

main69200-52030iNCP175,NHP170,NSP17#..G¥26,900201506-201711

sub69200-52031¥26,900

main69200-52031iNCP175,NHP170,NSP17#..G¥26,900201712-201805

sub69200-52032¥22,400

main69200-52032iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG¥22,400201806-202207

main69200-52040iNCP175,NHP170,NSP17#..X¥20,300201506-201711

sub69200-52041¥26,900

main69200-52041iNCP175,NHP170,NSP17#..X¥26,900201712-201805

sub69200-52042¥22,400

main69200-52042iNCP175,NHP170,NSP17#..X¥22,400201806-202207

69340BLOCK ASSY, SLIDE DOOR, LH

main69300-52080iNCP175,NHP170,NSP17#¥20,300201506-201711

sub69300-52081¥26,900

main69300-52081iNCP175,NHP170,NSP17#¥26,900201712-201805

sub69300-52082¥22,400

main69300-52082iNCP175,NHP170,NSP17#¥22,400201806-202207

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-52040iNCP175,NHP170,NSP17#¥5,900201506-202012

sub69370-52041¥4,870

main69370-52041iNCP175,NHP170,NSP17#¥4,870202101-202207

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-52080iNCP175,NHP170,NSP17#¥5,900201506-202012

sub69380-52081¥4,870

main69380-52081iNCP175,NHP170,NSP17#¥4,870202101-202207

69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN

main69409-52030iNCP175,NHP170,NSP17#¥3,410201506-202109

sub69409-52031¥3,410

main69409-52031iNCP175,NHP170,NSP17#¥3,410202110-202207

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-52010iNCP175,NHP170,NSP17#¥1,110201506-202207

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28120iNCP175,NHP170,NSP17#¥1,160201506-202207

69481LATCH, SLIDE DOOR OPEN

main69481-52030iNCP175,NHP170,NSP17#¥870201506-202207

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-52030iNCP175,NHP170,NSP17#¥1,600201506-202207

main69485-52040iNCP175,NHP170,NSP17#¥2,290201611-201703

sub69485-52041¥1,730

main69485-52041iNCP175,NHP170,NSP17#¥1,730201704-202001

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-46010iNCP175,NHP170,NSP17#¥250201506-202207

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-52050iNCP175,NHP170,NSP17#¥1,600201506-202207

main69486-52060iNCP175,NHP170,NSP17#¥2,290201611-201703

sub69486-52061¥1,730

main69486-52061iNCP175,NHP170,NSP17#¥1,730201704-202001

69492STOPPER, SLIDE DOOR HALF OPEN

main69492-52020iNCP175,NHP170,NSP17#¥840201506-202207

69736FGUIDE, SLIDE DOOR LOCKING LINK

main69736-52010iNCP175,NHP170,NSP17#¥410201506-202207

82711BCLAMP, WIRING HARNESS

main82711-16790iNCP175,NHP170,NSP17#¥120201506-202207

main82711-1E300iNCP175,NHP170,NSP17#¥70201506-202207

8401

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010¥160

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010¥90

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010¥90

8561828010SCREW, SLIDE ROOF MOTOR THRUST

main85618-28010¥130

9014850003

main90148-50003¥60

9014860082

main90148-60082¥60

9014880028

main90148-80028¥60

9014880040

main90148-80040¥70

9014880074

main90148-80074¥70

9017910186

main90179-10186¥80

9155380612

main91553-80612¥60

9167380616

main91673-80616¥60

91673A0820

main91673-A0820¥80

45 parts on this diagram · 1 diagram in section
