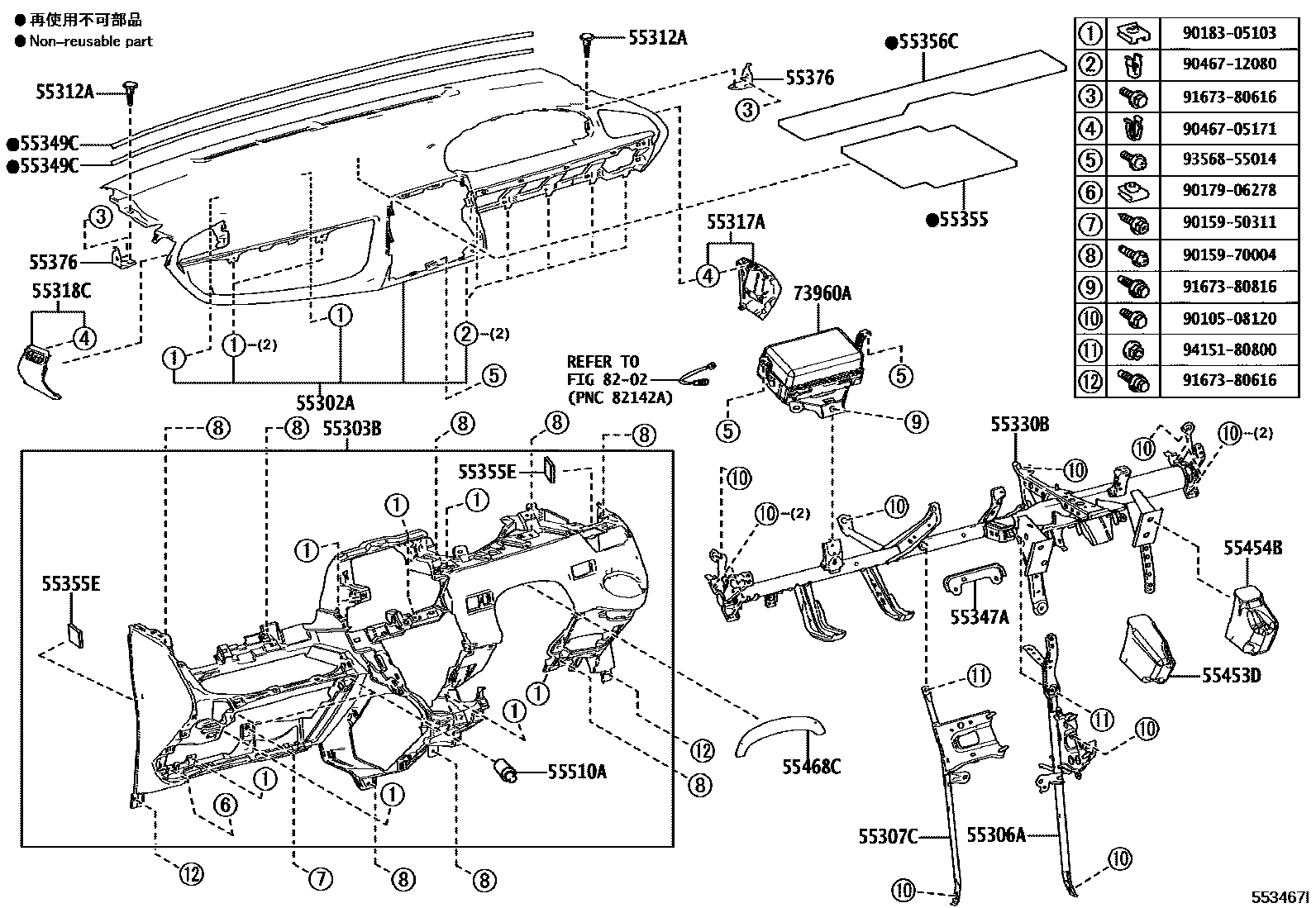

Toyota SIENTA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52200-C0iNCP175,NHP170,NSP170..FNBSX,FNGCR,GCERO201506-202207

BLACK,TRIM0#,2#

main55302-52200-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM0#,2#,4#

main55302-52200-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main55302-52200-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52330-A0iNCP175,NHP170,NSP17#..G,WKG,WKX,X201506-202207

FROMAGE,TRIM0#

main55303-52330-C0iNCP175,NHP170,NSP170..FNBSG,G201506-202207

BLACK,TRIM2#

main55303-52330-C0iNCP175,NHP170,NSP17#..FNBSX,FNGCR,GCERO,WKG,WKX,X201809-202207

BLACK,TRIM2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52330iNCP175,NHP170,NSP17#¥3,730201506-202207

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52080iNCP175,NHP170,NSP17#¥2,360201506-202207

55312ACLIP, INSTRUMENT PANEL

main52161-16010iNCP175,NHP170,NSP17#¥120201506-202207

55317APANEL, INSTRUMENT SIDE, RH

main55317-52070-C0iNCP175,NHP170,NSP170..FNBSX,FNGCR,GCERO201809-202207

BLACK,TRIM2#

main55317-52070-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM0#,2#,4#

main55317-52070-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main55317-52070-C0iNCP175,NHP170,NSP170..G201506-202207

BLACK,TRIM0#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-52150-C0iNCP175,NHP170,NSP17#..WKG,WKX,X201809-202207

BLACK,TRIM2#,4#

main55318-52150-C0iNCP175,NHP170,NSP17#201506-202207

BLACK,TRIM0#,2#

main55318-52150-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM0#,2#,4#

main55318-52150-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52760iNCP175,NHP170,NSP17#¥17,100201506-201809

sub55330-52761¥14,200

main55330-52761iNCP175,NHP170,NSP17#¥14,200201809-202207

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-52130iNCP175,NHP170,NSP17#¥410201506-202207

55349CCUSHION, INSTRUMENT PANEL

main55349-52260iNCP175,NHP170,NSP17#¥970201506-202207

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52240iNCP175,NHP170,NSP17#¥710201506-202207

55355ECUSHION, INSTRUMENT PANEL

main55355-53050iNCP175,NHP170,NSP17#¥60201506-202207

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52270iNCP175,NHP170,NSP17#¥550201506-202207

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-12160iNCP175,NHP170,NSP17#¥200201506-202207

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52170iNCP175,NHP170,NSP17#¥1,540201506-202207

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52170iNCP175,NHP170,NSP17#¥1,450201506-202207

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-52160iNCP175,NHP170,NSP17#¥240201506-202207

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main55557-52030iNCP175,NHP170,NSP17#¥200201611-202207

main55557-78010iNCP175,NHP170,NSP17#¥260201506-201610

sub55557-52030¥200

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52240iNCP175,NHP170,NSP17#¥83,200201506-202207

8202

9010508120

main90105-08120¥90

9015950311

main90159-50311¥70

9015970004

main90159-70004¥60

9017906278

main90179-06278¥100

9018305103

main90183-05103¥90

9046705171

main90467-05171¥60

9046712080

main90467-12080¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

31 parts on this diagram · 4 diagrams in section
