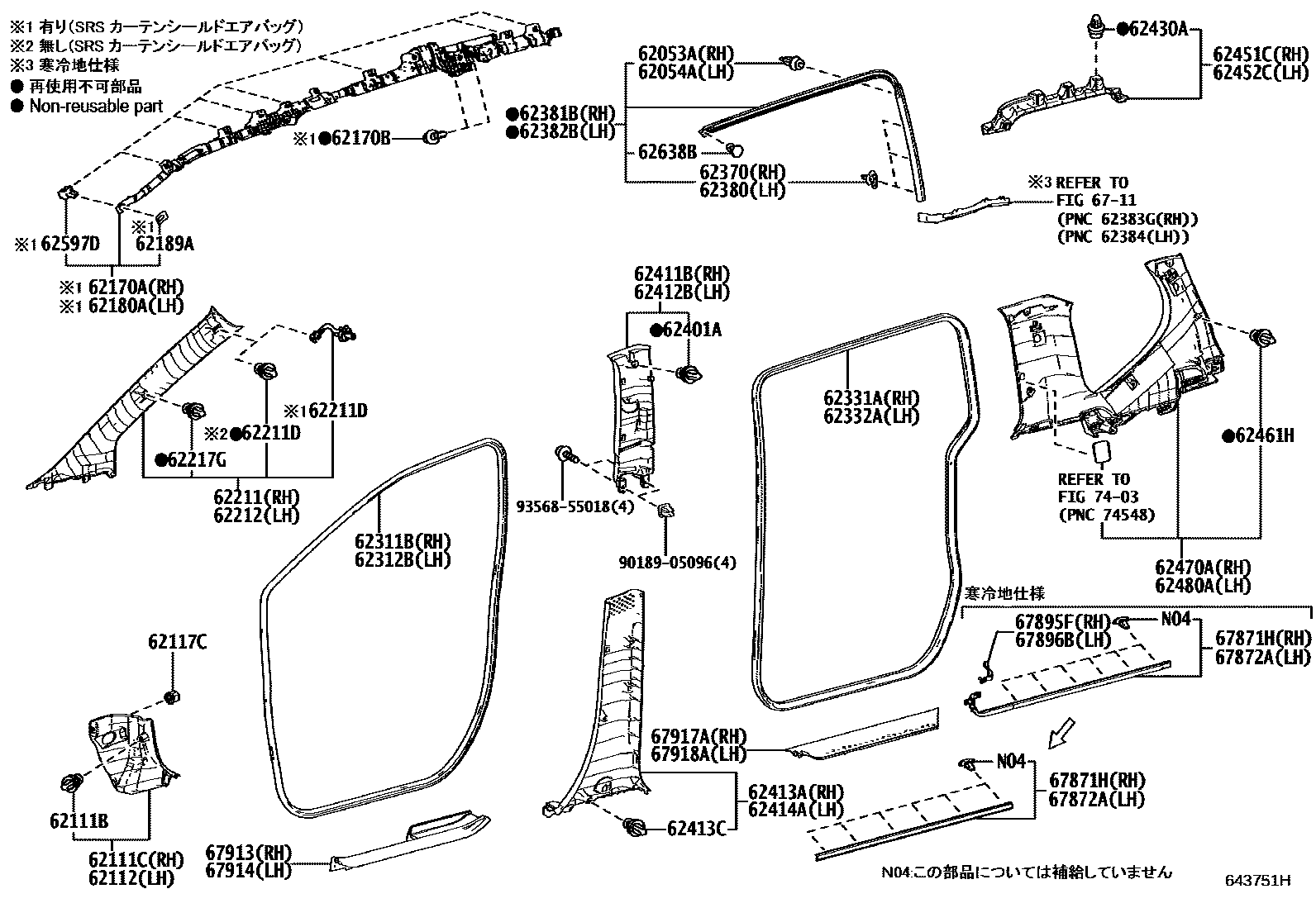

Toyota SIENTA — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62053ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH
62054ARETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62370RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH
62380RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
62430ACLIP, ROOF SIDE RAIL GARNISH
62451CGARNISH, ROOF SIDE RAIL, REAR RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
62452CGARNISH, ROOF SIDE RAIL, REAR LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#,4#
LT.GRAY,TRIM2#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM2#
62597DCLIP
62638BCLIP
6711
67871HWEATHERSTRIP, SLIDE DOOR, NO.1 RH
67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH
67895FWEATHERSTRIP, SLIDE DOOR, NO.3 RH
67896BWEATHERSTRIP, SLIDE DOOR, NO.3 LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
7403
9018905096
9356855018
48 parts on this diagram · 2 diagrams in section
