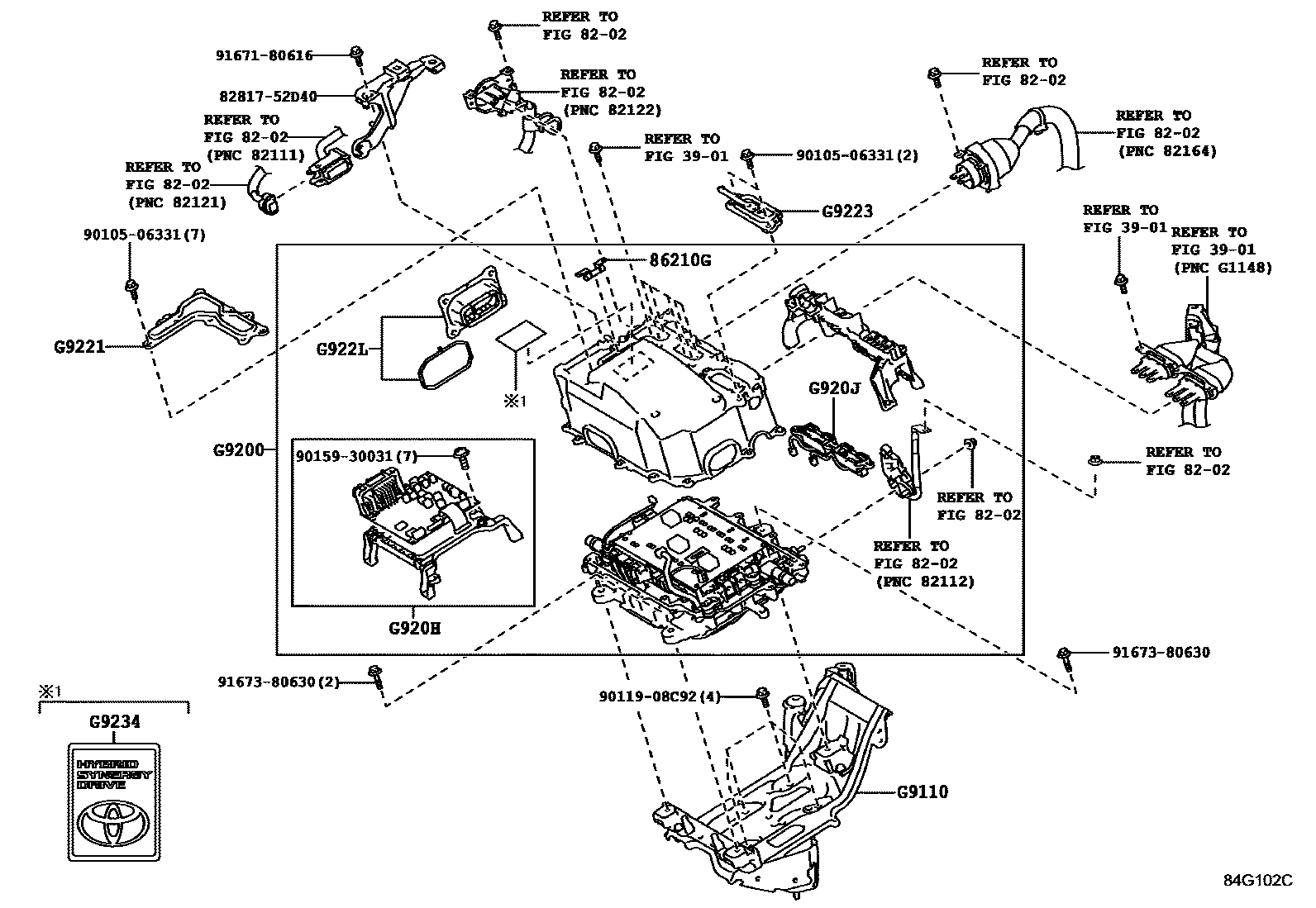

Toyota SIENTA — HEV INVERTER

0001 1������ASSY 0002 1������ASSY 0003 1������� 0004 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iNHP170¥1,710201507-202207

G9110BRACKET ASSY, INVERTER

mainG911052010iNHP170201507-202207

G9200INVERTER ASSY, W/CONVERTER

mainG920059055iNHP170201507-201705

subG9200-59056¥279,000

mainG920059056iNHP170201705-201802

subG9200-59057¥279,000

mainG920059057iNHP170201802-201809

subG9200-59058¥233,000

mainG920059058iNHP170201809-202207

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H52040iNHP170201507-201704

subG920H-52042¥18,200

mainG920H52042iNHP170201705-201801

subG920H-52043¥13,800

mainG920H52043iNHP170201802-202207

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iNHP170201507-202207

G9221COVER, INVERTER

mainG922152010iNHP170201507-202207

G9223COVER, INVERTER TERMINAL

mainG922352010iNHP170201507-202207

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iNHP170201507-202207

G9234PLATE, INVERTER NAME

mainG923F52010iNHP170201507-201809

8281752D40PROTECTOR, WIRING HARNESS, NO.1

main82817-52D40¥970

9010506331

main90105-06331¥70

9011908C92

main90119-08C92¥100

9015930031

main90159-30031¥60

9167180616

main91671-80616¥60

9167380630

main91673-80630¥80

17 parts on this diagram · 4 diagrams in section
