Toyota SIENTA — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1��������� 0002 1�������

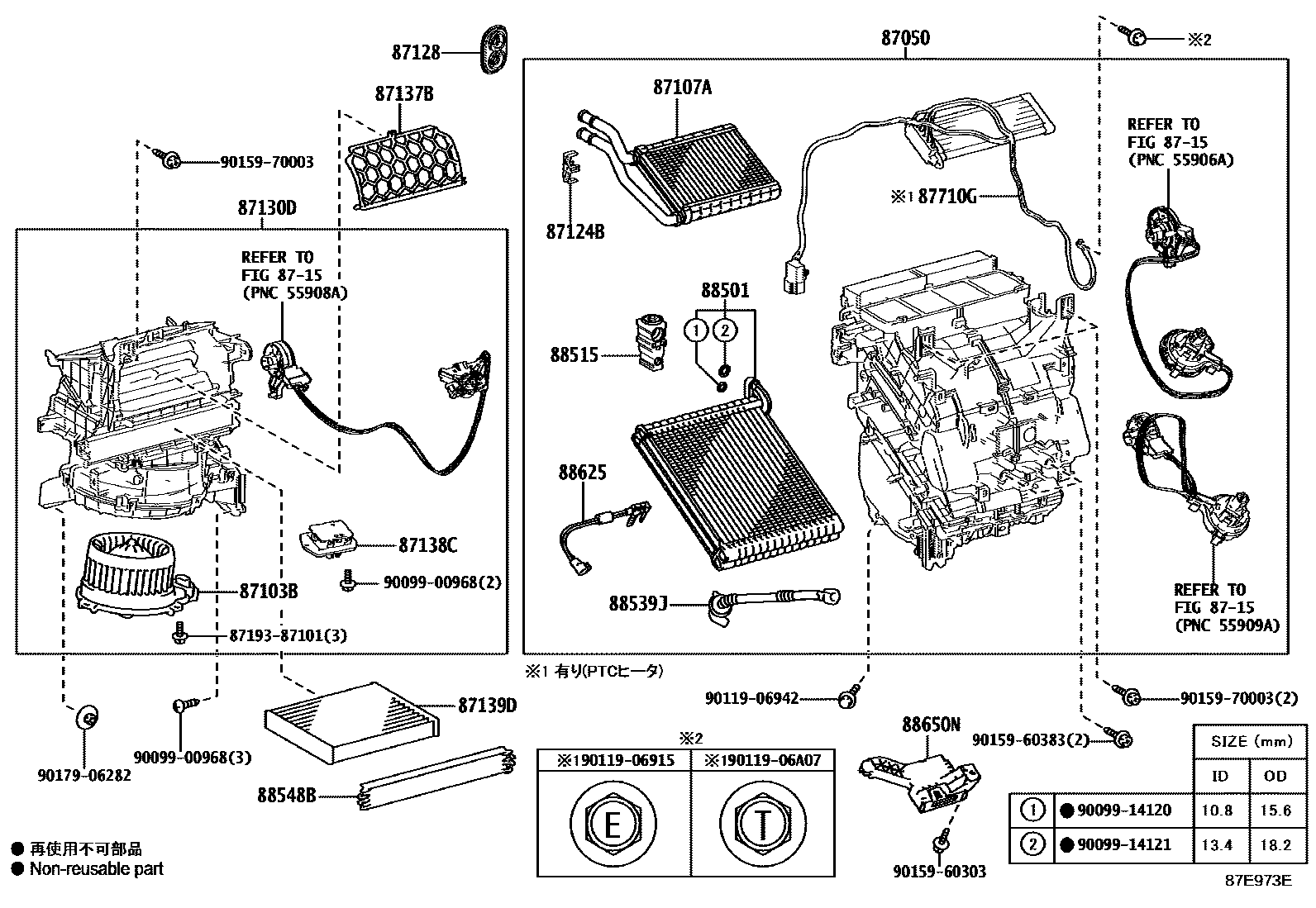

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52341iNHP170¥63,800201507-201809

main87050-52341iNHP170¥63,800201809-202207

main87050-52420iNCP175,NSP17#..FNBSX,WKX,X¥83,500201506-202207

main87050-52440iNCP175..G,GCERO¥77,000201506-202207

main87050-52480iNSP17#..G¥113,000201506-201804

sub87050-52481¥93,200

main87050-52481iNSP17#..G¥93,200201805-202207

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12110iNCP175,NSP17#..X201506-202207

main87103-52200iNHP170;NCP175,NSP17#..G201506-202207

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52070iNCP175,NHP170,NSP17#201506-202207

87124BCLAMP, HEATER

main87124-33070iNCP175,NSP17#¥0202006-202207

87128GROMMET, HEATER

main90480-01696iNCP175,NHP170,NSP17#201506-202207

87130DBLOWER ASSY

main87130-52190iNHP170;NCP175,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201506-202207

main87130-52220iNCP175,NSP17#..X¥0201506-202207

87137BCOVER, HEATER BLOWER

main87137-52010iNCP175,NHP170,NSP17#201506-202207

87138CRESISTOR, BLOWER

main87138-52030iNCP175,NSP17#..X201506-202207

87139DELEMENT, AIR REFINER

main87139-50100iNCP175,NHP170,NSP17#¥4,000201506-202207

main87139-52040iNCP175,NHP170,NSP17#¥2,000201506-202207

8715

87710GQUICK HEATER ASSY

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12520iNCP175;NSP17#..X201506-202207

main88501-52120iNHP170201507-202207

main88501-52130iNSP17#..FNBSG,FNGCR,G,GCERO,WKG201506-202207

88515VALVE, COOLER EXPANSION

main88515-26140iNSP17#..FNBSG,FNGCR,G,GCERO,WKG¥6,300201911-202207

main88515-48110iNHP170¥6,300201912-202207

main88515-48120iNSP170..FNBSX,X;NCP175,NSP172..G,GCERO,WKX,X¥6,300201911-202207

main88515-52090iNSP17#..G¥8,400201506-201910

main88515-52100iNSP17#..G¥8,400201803-201805

sub88515-52110¥8,400

main88515-52110iNSP17#..FNBSG,G,GCERO,WKG¥8,400201805-201910

sub88515-26140¥6,300

main88515-68010iNHP170¥8,400201507-201911

88539JHOSE, DRAIN COOLER

main88539-52030iNCP175,NHP170,NSP17#201506-201804

main88539-52060iNCP175,NHP170,NSP17#201805-202207

88548BCASE, AIR FILTER

main88548-52040iNCP175,NHP170,NSP17#¥0201506-202207

88625THERMISTOR, COOLER, NO.1

main88620-12090iNSP17#..FNBSG,FNGCR,G,GCERO,WKG201506-202207

main88620-52010iNSP170..FNBSX,X;NCP175,NHP170,NSP172..FNBSG,FNBSX,FNGCR,G,GCERO,WKX,X201506-202207

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52B20iNCP175,NSP17#..X201506-202207

main88650-52B40iNCP175,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201506-202207

main88650-52B50iNHP170201507-201809

main88650-52E40iNHP170201809-202207

8719387101

main87193-87101¥0

9009900968

main90099-00968

9009914120

main90099-14120¥0

9009914121

main90099-14121

9011906915

main90119-06915¥60

9011906942

main90119-06942¥60

9011906A07

main90119-06A07¥60

9015960303

main90159-60303¥70

9015960383

main90159-60383¥70

9015970003

main90159-70003¥60

9017906282

main90179-06282¥90

28 parts on this diagram · 2 diagrams in section
