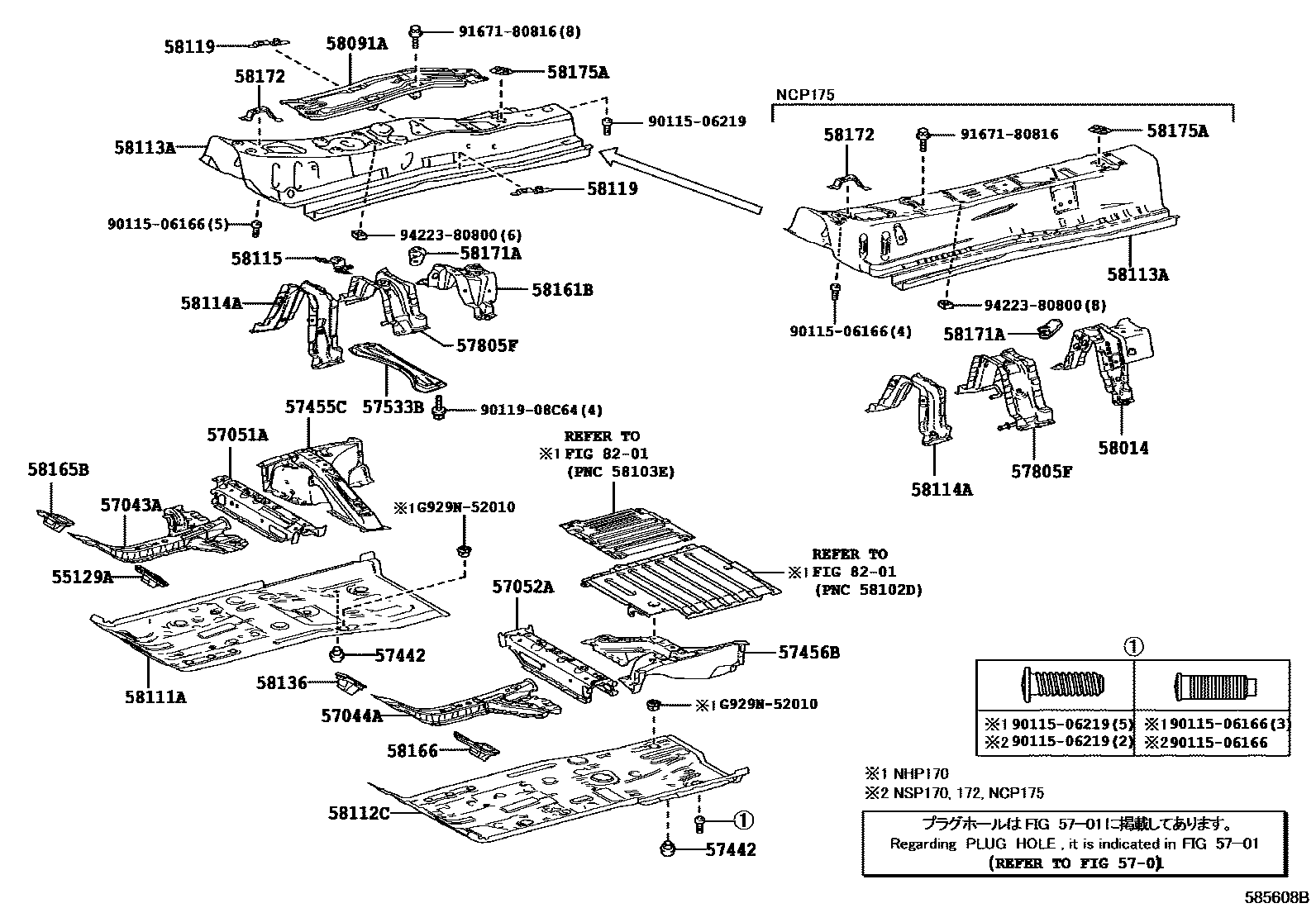

Toyota SIENTA — FLOOR PAN & LOWER BACK PANEL
55129ACOVER, FRONT FLOOR HOLE
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57442PLUG, STEP PANEL HOLE
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57533BBRACE, FRONT FLOOR, CENTER
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58091AREINFORCEMENT SET, BODY FITTING
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58119PLATE, FRONT FLOOR SIDE, FRONT
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171AREINFORCE, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
8201
9011506166
9011506219
9011908C64
9167180816
9422380800
G929N52010PLUG, BATTERY DRAIN
33 parts on this diagram · 7 diagrams in section
