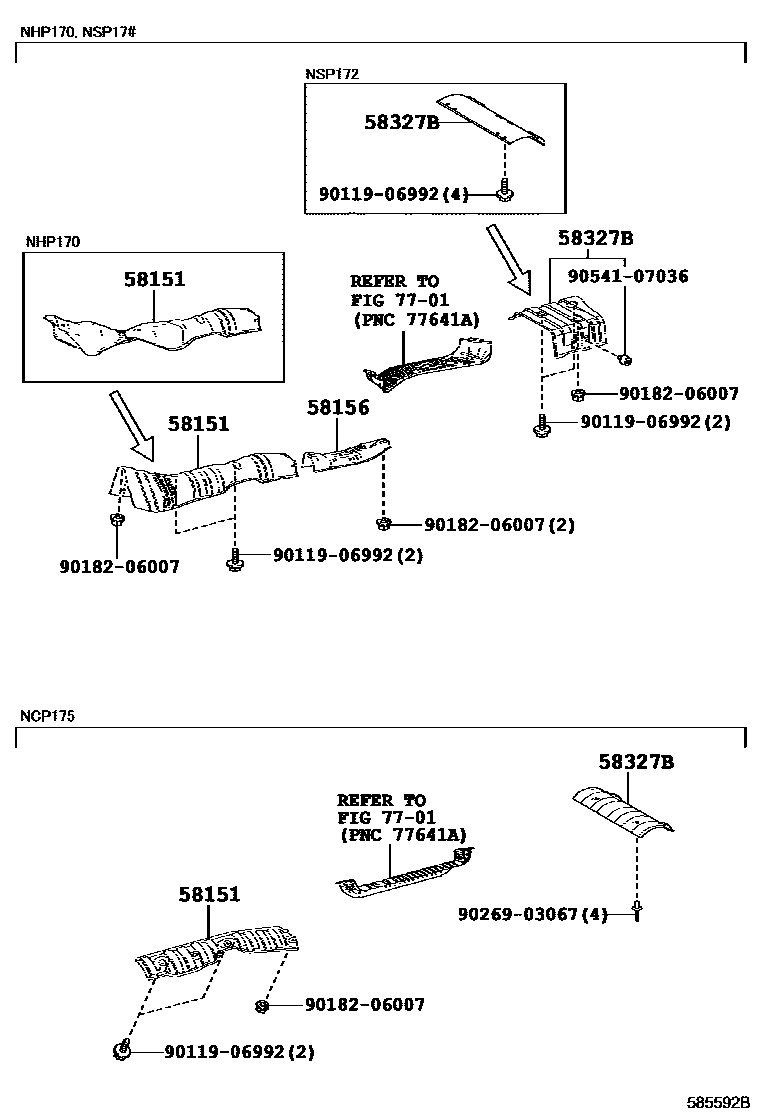

Toyota SIENTA — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-52030iNHP170¥3,920201507-201809

main58041-52030iNHP170¥3,920201809-202207

main58151-52071iNCP175¥1,600201506-201809

main58151-52071iNCP175¥1,600201809-202207

main58153-52130iNSP17#¥3,330201506-201809

main58153-52130iNSP17#¥3,330201809-202207

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52030iNHP170,NSP17#¥1,440201809-202207

main58156-52030iNHP170,NSP17#¥1,440201506-201809

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52020iNCP175¥2,900201506-201809

main58327-52020iNCP175¥2,900201809-202207

main58327-52100iNHP170,NSP170¥2,700201506-201809

main58327-52100iNHP170,NSP170¥2,700201809-202207

main58327-52160iNSP172¥4,770201506-201809

main58327-52160iNSP172¥4,770201809-202207

7701

9011906992

main90119-06992¥60

9018206007

main90182-06007¥60

9026903067

main90269-03067¥60

9054107036

main90541-07036¥110

8 parts on this diagram · 1 diagram in section
