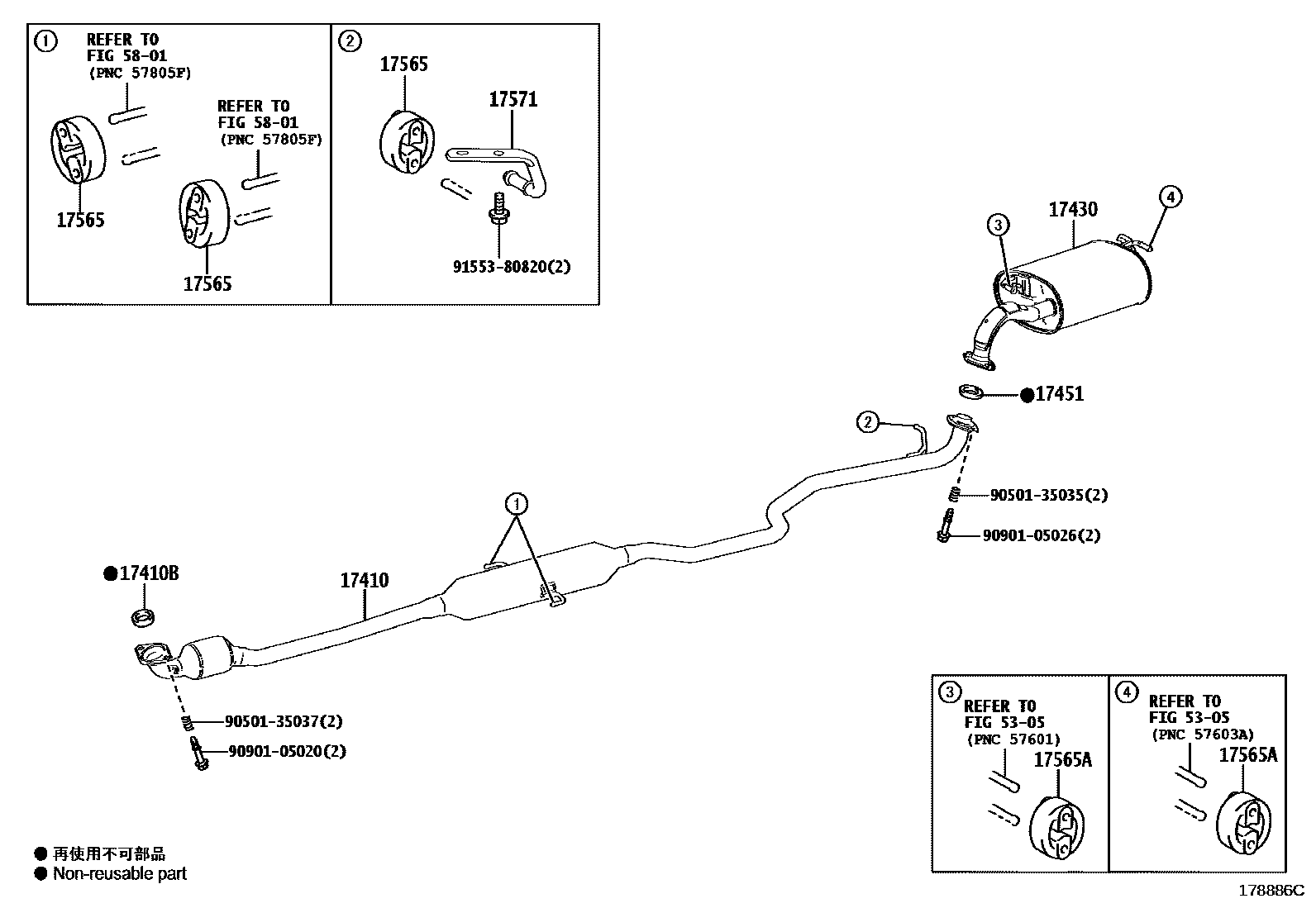

Toyota SIENTA — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21840i1NZFE..NCP175¥6,400201809-202207

main17410-21840i1NZFE..NCP175¥6,400201506-201809

main17410-21D40i1NZFXE..NHP170¥62,000201809-202207

main17410-21D40i1NZFXE..NHP170¥62,000201507-201809

main17410-47230i2NRFKE..NSP170¥62,500201809-202207

main17410-47230i2NRFKE..NSP170¥62,500201506-201809

main17410-47300i2NRFKE..NSP172¥62,500201506-201809

main17410-47300i2NRFKE..NSP172¥62,500201809-202207

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZ#,2NRFKE..NCP175,NHP170,NSP17#¥1,360201506-201809

main17451-21070i1NZ#,2NRFKE..NCP175,NHP170,NSP17#¥1,360201809-202207

17430PIPE ASSY, EXHAUST, TAIL

main17430-21880i1NZFE..NCP175¥24,300201506-201809

sub17430-21B30¥24,300

main17430-21880i1NZFE..NCP175¥24,300201809-201811

sub17430-21B30¥24,300

main17430-21881i1NZFE..NCP175¥20,200201904-202207

main17430-21B30i1NZFE..NCP175¥24,300201811-201903

sub17430-21881¥20,200

main17430-47210i1NZFXE,2NRFKE..NHP170,NSP170¥17,900201809-202207

main17430-47210i1NZFXE,2NRFKE..NHP170,NSP170¥17,900201506-201809

main17430-47220i2NRFKE..NSP172¥26,800201809-202207

main17430-47220i2NRFKE..NSP172¥26,800201506-201809

17451GASKET, EXHAUST PIPE

main17451-23042i1NZFXE,2NRFKE..NHP170,NSP17#¥790201506-201809

sub17451-23043¥720

main17451-23042i1NZFXE,2NRFKE..NHP170,NSP17#¥790201809-202207

sub17451-23043¥720

main90917-06089i1NZFE..NCP175¥500201506-201809

main90917-06089i1NZFE..NCP175¥500201809-202207

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-47010i1NZFXE,2NRFKE..NHP170,NSP17#¥320201506-201809

main17565-47010i1NZFE..NCP175¥320201809-202207

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i1NZFXE,2NRFKE..NHP170,NSP170¥670201506-201809

main17565-28010i1NZFXE,2NRFKE..NHP170,NSP170¥670201809-202207

main17565-31040i1NZFE..NCP175¥570201506-201809

main17565-31040i1NZFE..NCP175¥570201809-202207

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-47100i1NZFXE,2NRFKE..NHP170,NSP17#¥760201809-202207

main17571-47100i1NZFXE,2NRFKE..NHP170,NSP17#¥760201506-201809

5305

5801

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

9155380820

main91553-80820¥80

14 parts on this diagram · 4 diagrams in section
