Toyota SIENTA — ENGINE OVERHAUL GASKET KIT

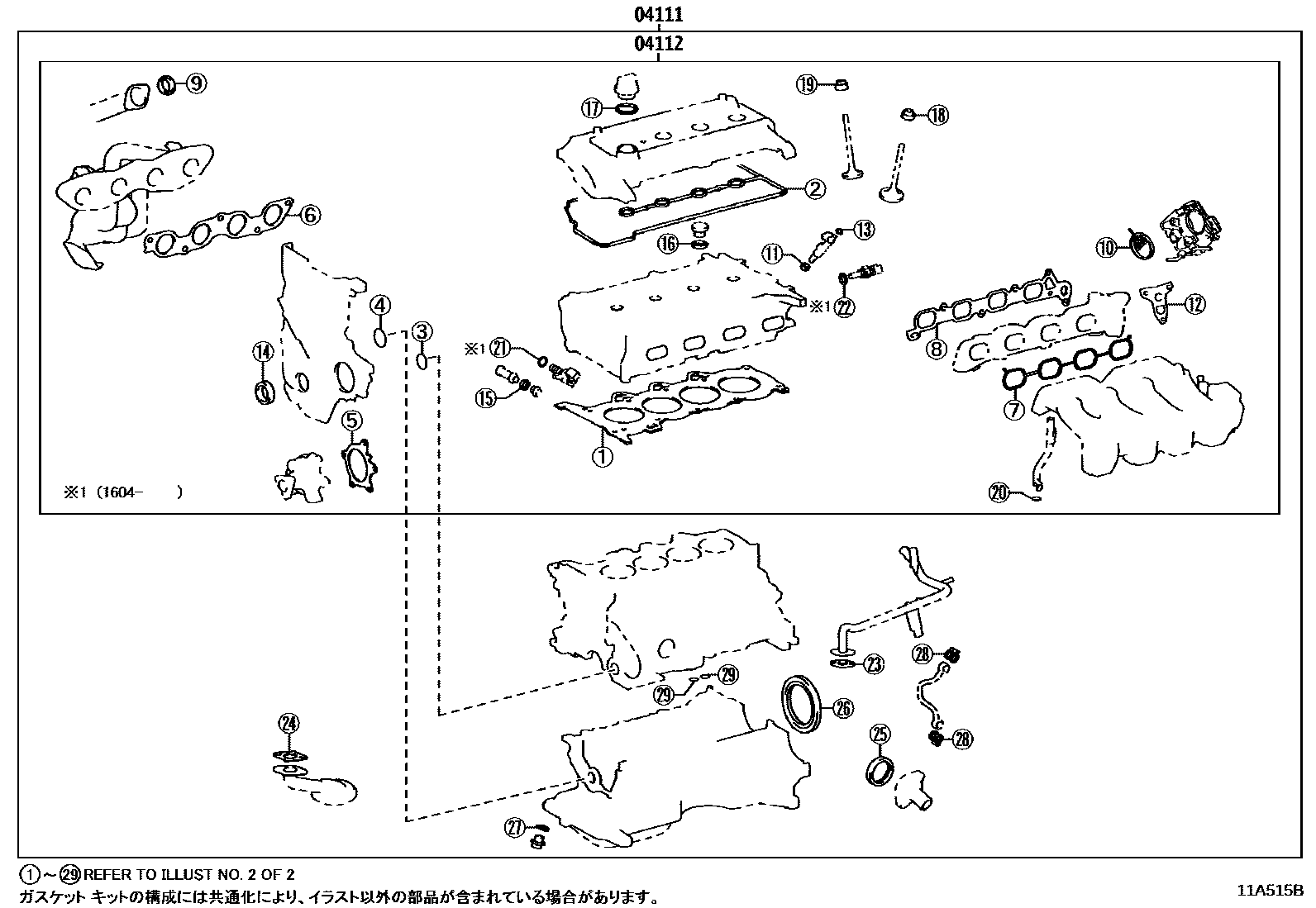

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21248i¥27,100201506-201604

sub04111-21249¥17,100

main04111-21249i¥17,100201604-202207

main04111-21324i¥29,600201507-201604

sub04111-21325¥24,700

main04111-21325i¥24,700201604-201811

sub04111-21326¥18,600

main04111-21326i¥18,600201811-202207

main04111-47260i¥27,100201506-201806

sub04111-47261¥27,100

main04111-47261i¥27,100201806-202002

sub04111-47262¥20,600

main04111-47262i¥20,600202002-202207

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21246i¥22,600201506-201604

sub04112-21247¥14,200

main04112-21247i¥14,200201604-202207

main04112-21323i¥25,000201507-201604

sub04112-21324¥20,800

main04112-21324i¥20,800201604-201811

sub04112-21325¥15,700

main04112-21325i¥15,700201811-202207

main04112-47170i¥23,700201506-201806

sub04112-47171¥23,700

main04112-47171i¥23,700201806-202002

sub04112-47172¥17,900

main04112-47172i¥17,900202002-202207

2 parts on this diagram · 6 diagrams in section
