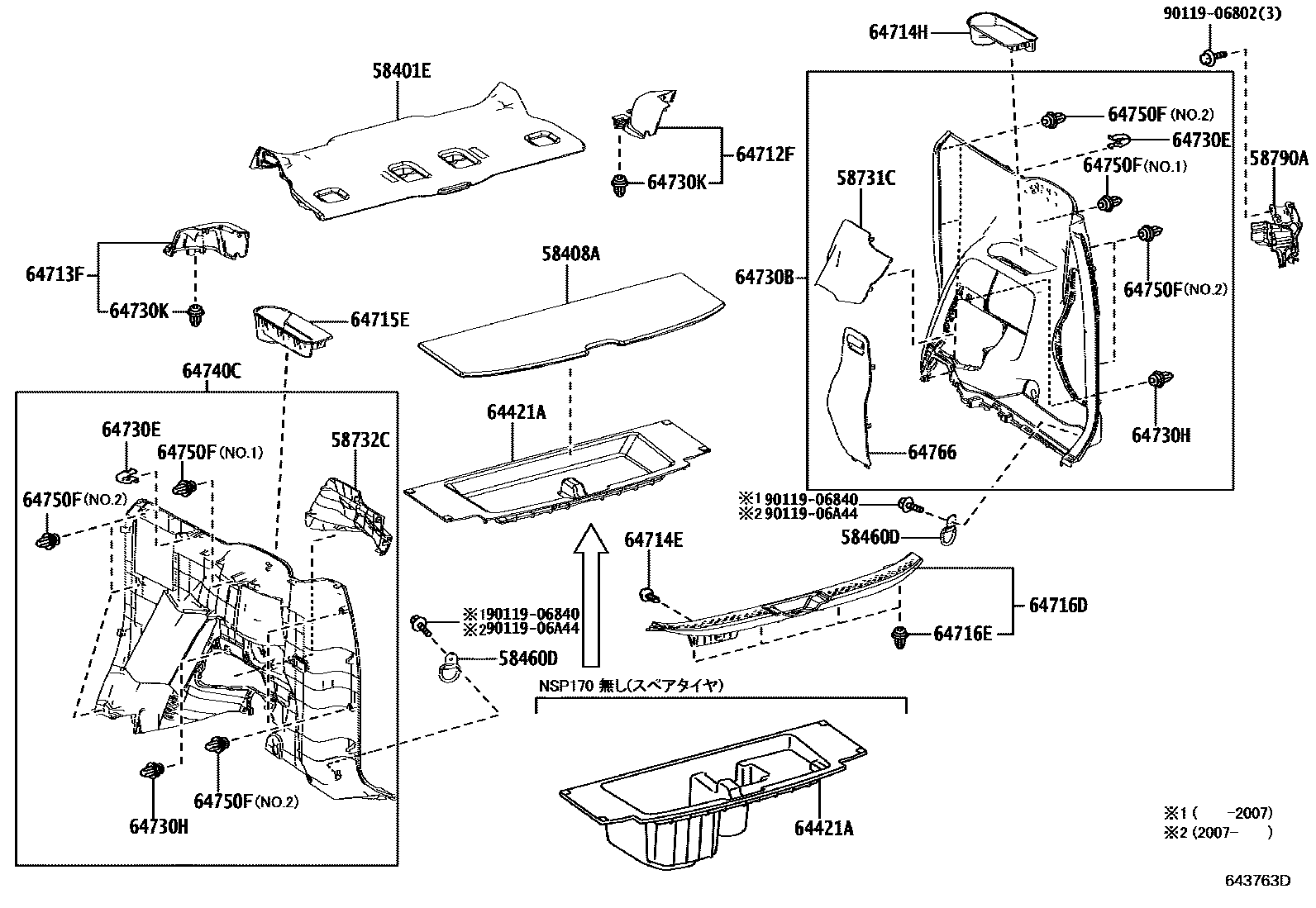

Toyota SIENTA — DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1

58401EBOARD SUB-ASSY, DECK

main58401-52080-C1iNCP175,NHP170,NSP170201506-201707

BLACK,TRIM0#,2#

sub58401-52081¥14,300

main58401-52081-C1iNCP175,NHP170,NSP170..X201809-202207

BLACK,TRIM0#,2#,4#

main58401-52081-C1iNCP175,NHP170,NSP170..X201809-202207

BLACK,TRIM2#

main58401-52081-C1iNCP175,NHP170,NSP170..G201708-202207

BLACK,TRIM0#,2#

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-52060-C1iNCP175,NSP170201506-202207

BLACK,TRIM0#,2#

main58408-52060-C1iNCP175,NSP170..G201809-202207

BLACK,TRIM2#

main58408-52060-C1iNCP175,NSP170..X201809-202207

BLACK,TRIM0#,2#,4#

main58408-52100-C0iNHP170..G201809-202207

BLACK,TRIM0#,2#,4#

main58408-52100-C0iNHP170201507-202207

BLACK,TRIM0#,2#

main58408-52100-C0iNHP170..X201809-202207

BLACK,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNCP175,NHP170,NSP170¥620201506-202207

58731CCAP, REAR ABSORBER

main58731-52060-A0iNCP175,NHP170,NSP170201506-202207

main58731-52060-A0iNCP175,NHP170,NSP170201506-202207

FROMAGE,TRIM0#

main58731-52060-C0iNCP175,NHP170,NSP170..G,X201506-202207

BLACK,TRIM2#

main58731-52060-C0iNCP175,NHP170,NSP170..G,X201506-202207

main58731-52060-C0iNCP175,NHP170,NSP170..GCERO,X201809-202207

BLACK,TRIM2#,4#

main58731-52070-A0iNSP172201506-202207

FROMAGE,TRIM0#

main58731-52070-C0iNSP172201506-202207

BLACK,TRIM2#

main58731-52080-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#,4#

main58731-52080-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#

58732CCAP, REAR ABSORBER

main58732-52040-A0iNCP175,NHP170,NSP170201506-202207

FROMAGE,TRIM0#

main58732-52040-C0iNCP175,NHP170,NSP170..GCERO,X201809-202207

BLACK,TRIM2#,4#

main58732-52040-C0iNCP175,NHP170,NSP170201506-202207

BLACK,TRIM2#

main58732-52050-A0iNSP172201506-202207

FROMAGE,TRIM0#

main58732-52050-C0iNSP172201506-202207

BLACK,TRIM2#

main58732-52060-C0iNHP170,NSP170..FNBSX,FNGCR201809-202207

BLACK,TRIM2#

main58732-52060-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#,4#

58790ACARRIER ASSY, JACK

main58790-52070iNCP175,NHP170,NSP170..06S,07S¥1,450201506-202207

64421ATRAY, LUGGAGE COMPARTMENT

main64421-52080iNSP170¥11,700201506-202207

main64421-52090iNSP170¥9,900201506-202207

main64421-52100-C0iNHP170..GCERO201507-202207

BLACK,TRIM0#,2#

main64421-52100-C0iNHP170..GCERO201809-202207

BLACK,TRIM0#,2#,4#

main64421-52100-C0iNHP170..GCERO201809-202207

BLACK,TRIM2#

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-52050-C0iNCP175,NHP170,NSP17#201506-202207

BLACK,TRIM0#,2#

main64712-52050-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM0#,2#,4#

main64712-52050-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main64712-52050-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-52110-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM0#,2#,4#

main64713-52110-C0iNCP175,NHP170,NSP17#201506-202207

BLACK,TRIM0#,2#

main64713-52110-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main64713-52110-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-05164-C0iNSP172201506-201610

BLACK,TRIM0#,2#

sub90467-05164¥110

main90467-05164-C0iNCP175,NHP170,NSP170201506-201609

BLACK

sub90467-05164¥110

main90467-05164-C7iNSP172201610-202207

BLACK

sub90467-05164¥110

main90467-05164-C7iNSP172201610-202207

BLACK,TRIM0#,2#

sub90467-05164¥110

64714HCOVER, DECK SIDE TRIM, NO.1

main64714-52270-A0iNCP175,NHP170,NSP17#..G,WKG,WKX,X201506-202207

FROMAGE,TRIM0#

main64714-52270-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main64714-52270-C0iNCP175,NHP170,NSP170..G201506-202207

BLACK,TRIM2#

64715ECOVER, DECK SIDE TRIM, NO.2

main64715-52310-A0iNCP175,NHP170,NSP17#201506-202207

FROMAGE,TRIM0#

main64715-52310-C0iNCP175,NHP170,NSP170..G201506-202207

BLACK,TRIM2#

main64715-52310-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

64716DCOVER, DECK TRIM, REAR

main64716-52180-A0iNCP175,NHP170,NSP170..G,X201506-202207

FROMAGE,TRIM0#

main64716-52180-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main64716-52180-C0iNCP175,NHP170,NSP170..G201506-202207

BLACK,TRIM2#

main64716-52200-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#,4#

main64716-52200-C0iNHP170,NSP170..FNBSG201809-202207

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-05164-C7iNHP170,NSP170..05S201809-202207

sub90467-05164¥110

main90467-10161iNCP175,NHP170,NSP170..06S,07S¥90201809-202207

main90467-10161iNCP175,NHP170,NSP170¥90201506-201809

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52520-A0iNCP175,NHP170,NSP170201506-202207

FROMAGE,TRIM0#

main64730-52520-C0iNCP175,NHP170,NSP170201506-202207

BLACK,TRIM2#

main64730-52520-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

main64730-52530-A0iNSP172201506-202207

FROMAGE,TRIM0#

main64730-52530-C0iNSP172201506-202207

BLACK,TRIM2#

main64730-52560-C1iNHP170,NSP170..FNBSX,FNGCR201809-202203

BLACK,TRIM2#

sub64730-52560¥19,300

main64730-52560-C1iNHP170,NSP170..FNBSX,FNGCR201809-202203

BLACK,TRIM2#,4#

sub64730-52560¥19,300

main64730-52560-C2iNHP170,NSP170..05S202203-202207

BLACK,TRIM2#

sub64730-52560¥19,300

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-08227iNCP175;NHP170,NSP170..07S¥80201506-202207

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09232iNCP175,NHP170,NSP170..G,X¥70201506-202207

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09206iNCP175,NHP170,NSP17#¥80201506-202207

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52640-C1iNHP170,NSP170..FNBSG201809-202203

BLACK,TRIM2#

sub64740-52640¥19,300

main64740-52640-C1iNHP170,NSP170..FNBSX,FNGCR201809-202203

BLACK,TRIM2#,4#

sub64740-52640¥19,300

main64740-52640-C2iNHP170,NSP170..05S202203-202207

BLACK,TRIM2#

sub64740-52640¥19,300

main64740-52680-A0iNCP175,NHP170,NSP170201506-202207

FROMAGE,TRIM0#

main64740-52680-C0iNCP175,NHP170,NSP170..GCERO,X201809-202207

BLACK,TRIM2#,4#

main64740-52680-C0iNCP175,NHP170,NSP170..G201506-202207

BLACK,TRIM2#

main64740-52690-A0iNSP172201506-202207

FROMAGE,TRIM0#

main64740-52690-C0iNSP172201506-202207

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iNHP170,NSP170..05S¥90201506-202207

main90467-10161iNCP175;NHP170,NSP170..07S¥90201506-201809

main90467-10161iNCP175,NHP170,NSP170..G,X¥90201809-202207

main90467-10188iNCP175;NHP170,NSP170..07S¥80201506-201809

main90467-10188iNCP175,NHP170,NSP170..G,X¥80201809-202207

main90467-10188iNCP175;NHP170,NSP170..07S¥80201506-202207

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-52030-A0iNCP175;NHP170,NSP170..07S201506-202207

FROMAGE,TRIM0#

main64766-52030-A0iNCP175,NHP170,NSP17#..G,WKG,WKX,X201506-202207

main64766-52030-C0iNCP175,NHP170,NSP17#..GCERO,WKG,WKX,X201506-202207

BLACK,TRIM2#

main64766-52030-C0iNCP175,NHP170,NSP17#201506-202207

main64766-52030-C0iNCP175,NHP170,NSP170..G201809-202207

BLACK,TRIM2#,4#

9011906802

main90119-06802¥60

9011906840

main90119-06840¥60

9011906A44

main90119-06A44¥60

24 parts on this diagram · 4 diagrams in section
