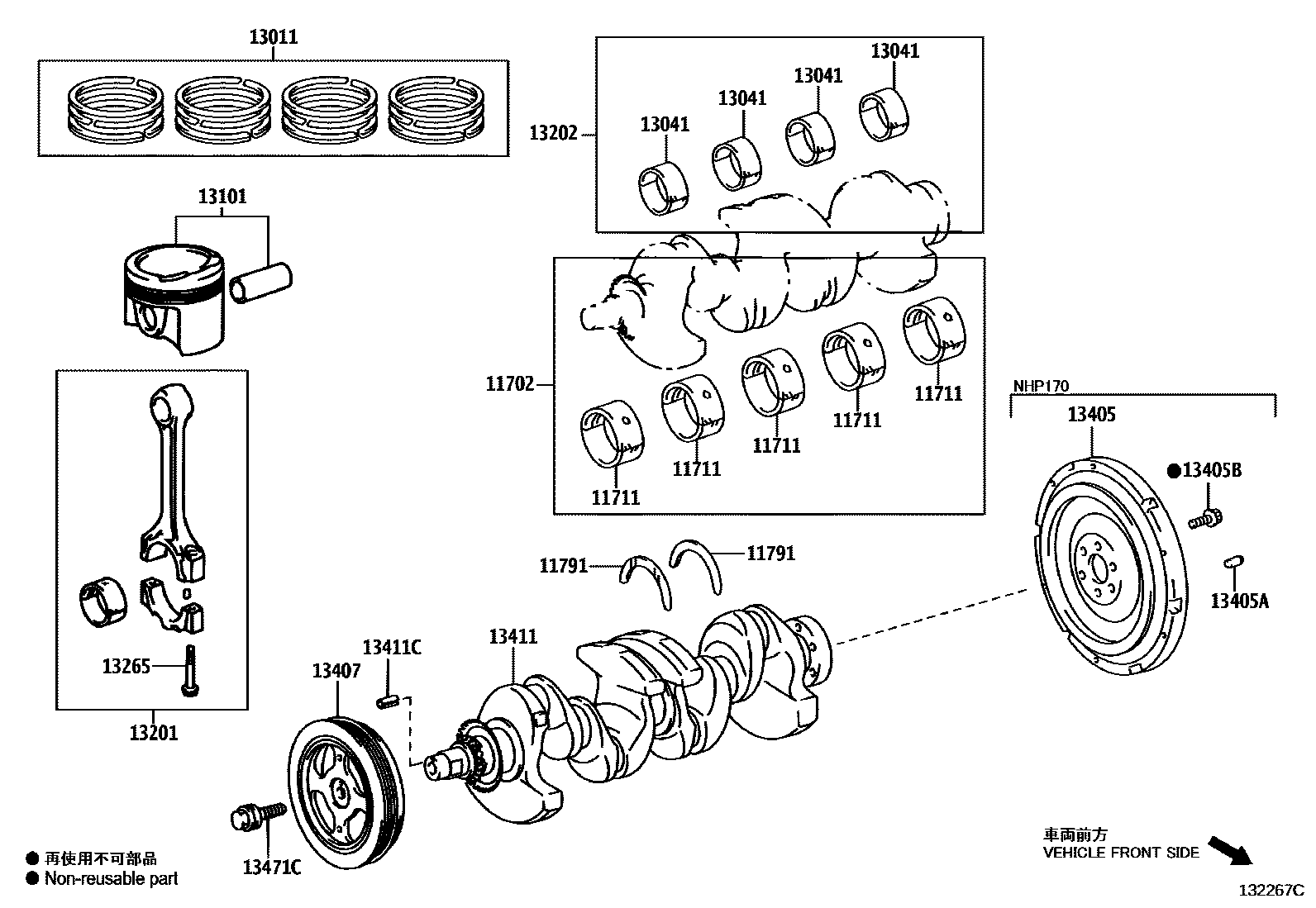

Toyota SIENTA — CRANKSHAFT & PISTON

0001 1 0002 1

11702BEARING SET, CRANKSHAFT

main11704-21033i1NZFE..NCP175¥11,700201506-202207

main11704-21050i1NZFXE..NHP170¥11,700201809-202207

11711BEARING, CRANKSHAFT

main11701-21033-01i1NZ#..NCP175,NHP170201506-202207

main11701-21033-02i1NZFE..NCP175201506-202207

main11701-21033-03i1NZ#..NCP175,NHP170201506-202207

main11701-21033-04i1NZ#..NCP175,NHP170201506-202207

main11701-21050-01i1NZFXE..NHP170201809-202207

main11701-21050-02i1NZFXE..NHP170201809-202207

main11701-21050-03i1NZFXE..NHP170201809-202207

main11701-21050-04i1NZFXE..NHP170201809-202207

main11701-47031-02i2NRFKE..NSP17#201506-201612

sub11701-47032¥2,160

main11701-47031-03i2NRFKE..NSP17#201506-201612

sub11701-47032¥2,160

main11701-47031-04i2NRFKE..NSP17#201506-201612

sub11701-47032¥2,160

main11701-47031-05i2NRFKE..NSP17#201506-201612

sub11701-47032¥2,160

main11701-47032-02i2NRFKE..NSP17#201701-202207

main11701-47032-03i2NRFKE..NSP17#201701-202207

main11701-47032-04i2NRFKE..NSP17#201701-202207

main11701-47032-05i2NRFKE..NSP17#201701-202207

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-37010i1NZ#..NCP175,NHP170¥1,740201506-202207

main11791-47030i2NRFKE..NSP17#¥2,790201506-201612

sub11791-47031¥1,740

main11791-47031i2NRFKE..NSP17#¥1,740201701-202207

main11792-37010i1NZ#..NCP175,NHP170¥1,740201506-202207

main11793-37010i1NZ#..NCP175,NHP170¥1,740201506-202207

13011RING SET, PISTON

main13011-21091i1NZFE..NCP175¥10,500201506-202207

main13011-21111i1NZFXE..NHP170¥11,600201507-201809

main13011-21160i1NZFXE..NHP170¥10,500201809-202207

main13011-47120i2NRFKE..NSP17#¥12,900201506-201810

sub13011-47121¥9,800

main13011-47121i2NRFKE..NSP17#¥9,800201810-202207

13041BEARING, CONNECTING ROD

main13041-21033-01i1NZ#..NCP175,NHP170201506-202207

main13041-21033-02i1NZ#..NCP175,NHP170201506-202207

main13041-21033-03i1NZ#..NCP175,NHP170201506-202207

main13041-47011-01i2NRFKE..NSP17#201506-201612

sub13041-47012¥1,260

main13041-47011-02i2NRFKE..NSP17#201506-201612

sub13041-47012¥1,260

main13041-47011-03i2NRFKE..NSP17#201506-201612

sub13041-47012¥1,260

main13041-47012-01i2NRFKE..NSP17#201701-202207

main13041-47012-02i2NRFKE..NSP17#201701-202207

main13041-47012-03i2NRFKE..NSP17#201701-202207

13101PISTON SUB-ASSY, W/PIN

main13101-21120i1NZFE..NCP175¥3,910201506-202207

main13101-21130i1NZFXE..NHP170¥4,310201507-201809

main13101-21180i1NZFXE..NHP170¥3,910201809-202207

main13101-47140i2NRFKE..NSP17#¥3,910201506-202207

13201ROD SUB-ASSY, CONNECTING

main13201-29737i1NZ#..NCP175,NHP170¥9,400201506-201704

sub13201-29757¥7,100

main13201-29757i1NZ#..NCP175,NHP170¥7,100201704-202207

main13201-49115i2NRFKE..NSP17#¥11,200201506-201608

sub13201-49116¥8,200

main13201-49116i2NRFKE..NSP17#¥8,200201608-202207

13202BEARING SET, CONNECTING ROD

main13204-21033i1NZ#..NCP175,NHP170¥6,100201506-202207

13265BOLT, CONNECTING ROD

main13265-21020i1NZ#,2NRFKE..NCP175,NHP170,NSP17#¥300201506-202207

13405FLYWHEEL SUB-ASSY

main13451-21081i1NZFXE..NHP170¥13,800201507-202207

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i1NZFXE..NHP170¥140201507-202207

13405BBOLT, FLYWHEEL SETTING

main90105-10048i1NZFXE..NHP170¥130201507-202207

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21032i1NZFE..NCP175¥8,700201506-202207

main13407-21070i1NZFXE..NHP170¥5,200201507-202207

13411CRANKSHAFT

main13401-21020i1NZ#..NCP175,NHP170¥52,100201506-202207

main13401-47090i2NRFKE..NSP17#¥52,100201506-202207

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-03095i1NZ#..NCP175,NHP170¥70201605-202207

main90254-03025i1NZ#..NCP175,NHP170¥120201506-201604

sub90250-03095¥70

main90280-04001i2NRFKE..NSP17#¥80201506-202207

13471PULLEY, CRANKSHAFT

main13470-47080i2NRFKE..NSP17#¥10,800201506-202010

sub13470-47090¥8,100

main13470-47090i2NRFKE..NSP17#¥8,100201506-202207

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZ#..NCP175,NHP170¥240201506-202207

main90119-14106i2NRFKE..NSP17#¥360201606-202207

main90119-14175i2NRFKE..NSP17#¥490201506-201605
