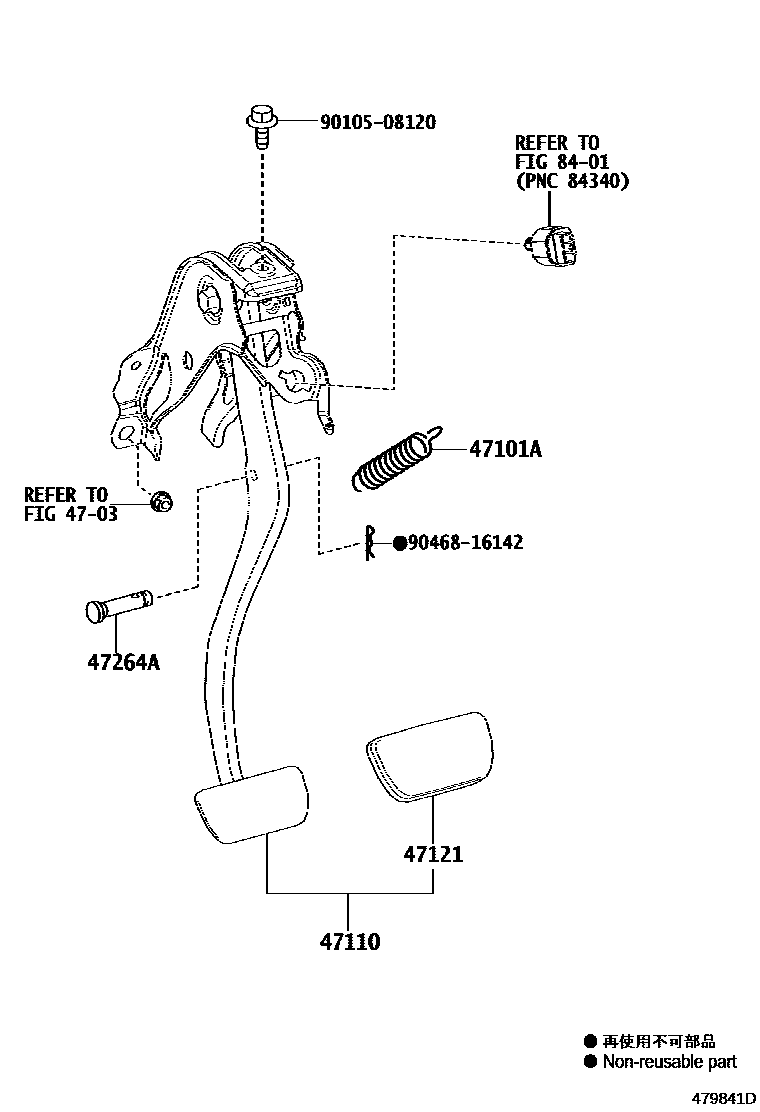

Toyota SIENTA — BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNCP175,NHP170,NSP17#¥120201506-202207

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52420iNCP175,NSP17#¥7,600201506-202207

main47110-52430iNHP170¥7,600201507-202207

47121PAD, BRAKE PEDAL

main47121-52020iNCP175,NHP170,NSP17#¥260201506-202207

47264APIN(FOR PUSH ROD)

main90249-08051iNCP175,NHP170,NSP17#¥170201506-202207

8401

9010508120

main90105-08120¥90

9046816142

main90468-16142¥70

8 parts on this diagram · 2 diagrams in section
