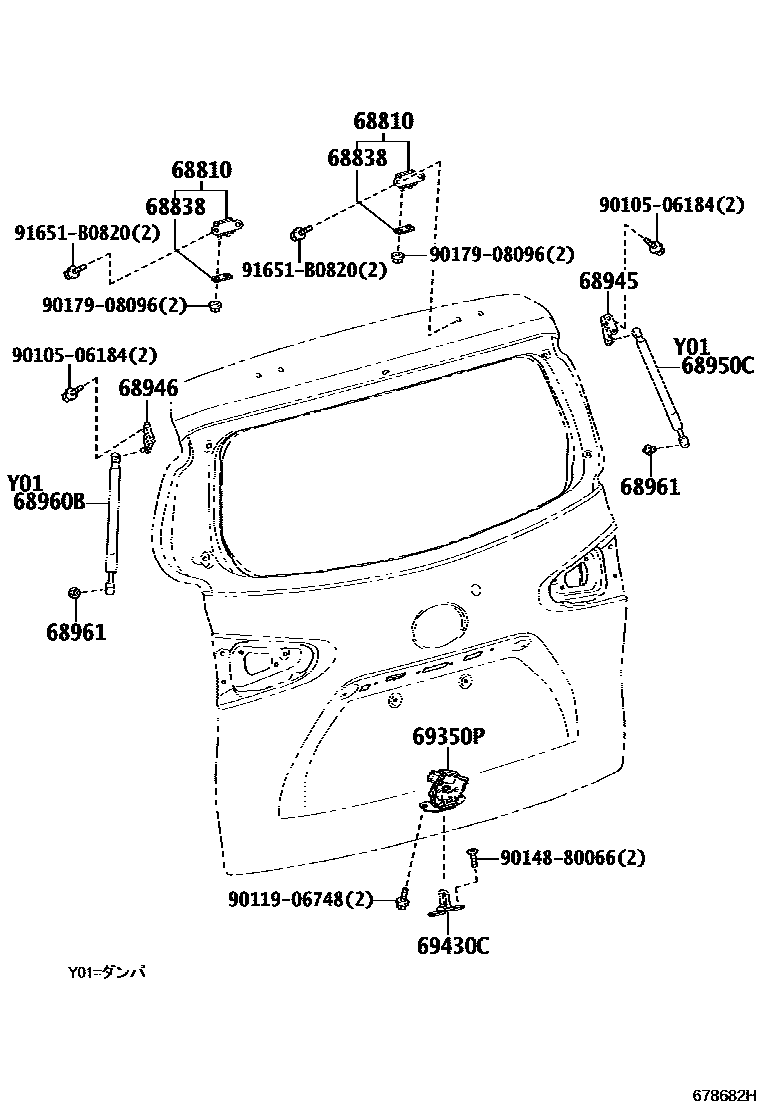

Toyota SIENTA — BACK DOOR LOCK & HANDLE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-52130iNCP175,NHP170,NSP17#¥1,500201506-202207

68838PAD, BACK DOOR HINGE, NO.1

main68838-47010iNCP175,NHP170,NSP17#¥80201506-202207

main68838-47020iNCP175,NHP170,NSP17#¥160201506-202207

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52120iNCP175,NHP170,NSP17#¥510201506-202207

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52080iNCP175,NHP170,NSP17#¥510201506-202207

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W840iNCP175,NHP170,NSP17#¥6,300201506-202207

main68950-0WB30iNCP175,NHP170,NSP17#¥9,200201506-201809

68960BSTAY ASSY, BACK DOOR, LH

main68960-0W840iNCP175,NHP170,NSP17#¥6,300201506-202207

main68960-0WB30iNCP175,NHP170,NSP17#¥9,200201506-201809

68961BOLT, BACK DOOR STAY

main68961-52020iNCP175,NHP170,NSP17#¥280201506-202207

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52391iNCP175,NHP170,NSP17#¥8,800201506-201611

main69350-52400iNCP175,NHP170,NSP17#201611-201612

sub69350-52401¥8,800

main69350-52401iNCP175,NHP170,NSP17#¥8,800201612-202207

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iNCP175,NHP170,NSP170¥700201506-202207

9010506184

main90105-06184¥70

9011906748

main90119-06748¥110

9014880066

main90148-80066¥60

9017908096

main90179-08096¥110

91651B0820

main91651-B0820¥160

14 parts on this diagram · 1 diagram in section
